C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045

Brand Name : BRANDO

Model Number : C113825

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union

Supply Ability : 100000 sets per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Pulse Valve Diaphragm

Ordering Code : C113825, C1138-25

Diaphragm Material : NBR, FKM

1 Set : 1pc Diaphragm, 1pc Spring

Fitted Pulse Valve Port Size : 1.5''

Fitted Pulse Valve Model : G353A045

Contact Now

C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045

C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.

Ordering Number of Diaphragm For ASCO Pulse Valve:

Valve Port Size
Pulse Valve Model
Diaphragm Model
Diaphragm Material
(FKM is also available)
3/4''
SCG353A043
C113444
TPE (White), NBR (Black)
1''
SCG353A044
3/4''
SCG353-052
1''
SCG353-053
3/4''
SGG353A043
1''
SGG353A044
3/4''
SGG353-052
1''
SGG353-053
1 1/2''
SCG353A047
C113827
NBR
SGG353A065
2''
SCG353A050
C113685, C113686
NBR
2 1/2''
SCG353A051
3''
SCXE353.060
C123432, C123433
NBR
SCG353D060
3/4''
G3530A41
C113443
NBR
1''
G353A042
3/4''
G353-055
1''
G353-056
1 1/2''
G353A045
C113825
NBR
G353-066
1 1/2''
G353A046
C113826
NBR
G353A063
2''
G353A048
C113684
NBR
2 1/2''
G353A049

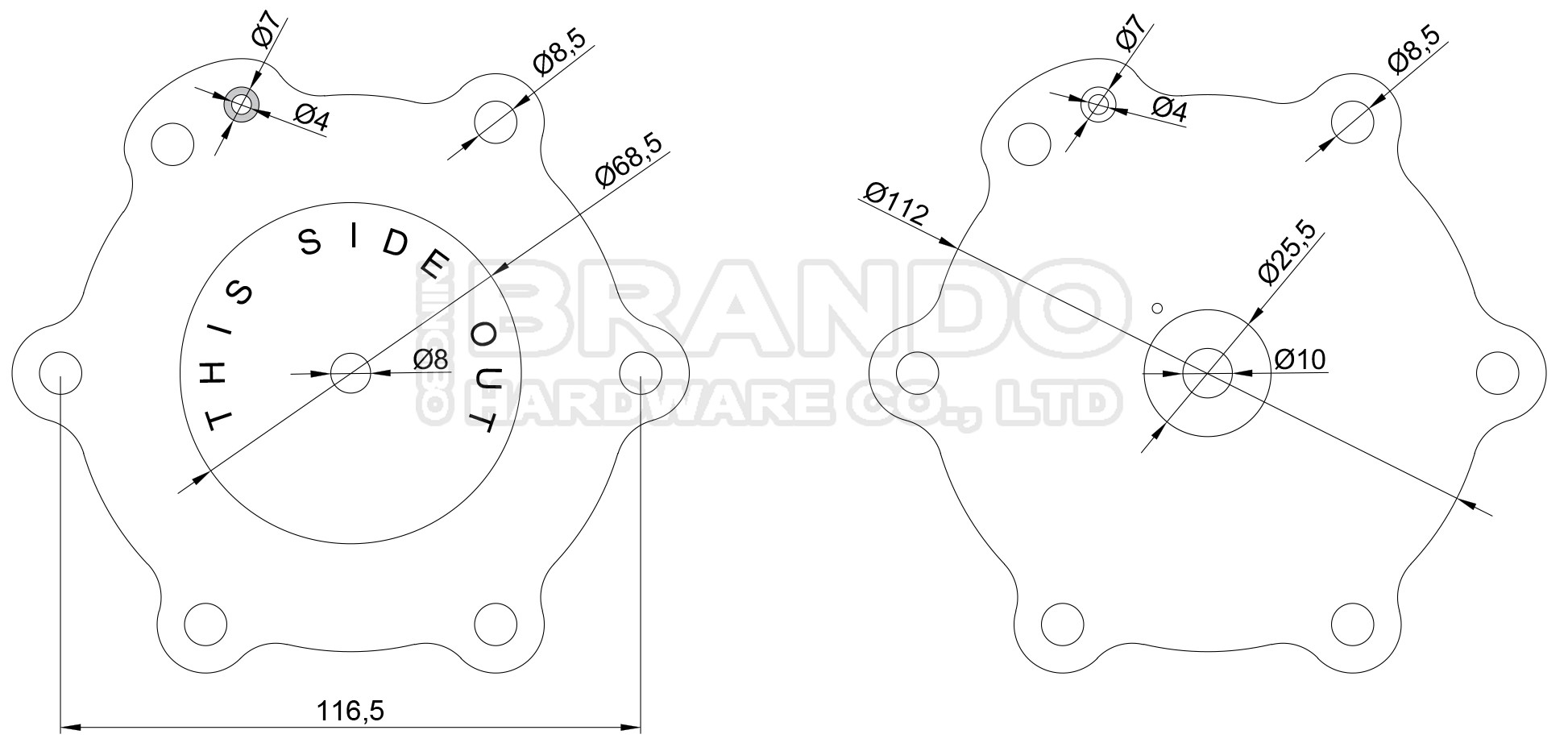

Main Dimension of C113825 Diaphragm:

C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045


Product Video of C113825 Membrane:

Pictures of Pulse Valve Diaphragm Production:

C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045

More Related Products For you to choose:

C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045
Threaded Type Remote Pilot Type Straight Through Type Submerged Type
C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045 C113825 C113-825 Diaphragm For ASCO Pulse Jet Valve 1.5'' G353A045
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
