High Electromagnetic Water Solenoid Valve Solenoid Plunger Tube
This solenoid valve especially with high electromagnetic, low remanence, corrosion resistant materials, making static iron core. The plunger tube is made by H62 copper or SS304, and this tickness for selection is at the range of 0.25-2.5mm.The specification is including NO, NC, AND AC, DC etc.
Solenoid valve Stem armature characteristics:
1. The static and movable core is made by rustproof and corrosion-resistant material with high magneto conductivity and low remanence, and it is also durable and quick.
2. The seat of plunger tube is made by H62 copper or SS304.
3. Adopting the laser solder technology makes the products more perfect and safe.
4. The spring is made by imported stainless steel wire, which has good performance of pressure and restore.
5. The sealant can be heatproof, oilproof and also can be exclusively applicable to food. All can do according to your requirements.
Specifications:
Type: 2/2 NC solenoid valve armature
Installation overall size: Tube height for coil installation 29mm
Voltage: AC and DC
Application example: water treatment water dispenser solenoid valve
Test: Each piece tested by 12 bar gas pressure
Nonmagnetic tube design: SS304/Brass
Material of Each Part:
| Fixed nucleus | High performance magnetic stainless steel iron, with 99.9% silver shading ring |
| Nonmagnetic tube | Brass/304 Stainless steel |
| Mobile plunger | High performance magnetic stainless steel iron, almost similar as 430FR |
| O-ring | Viton |
| Seal | Viton, PTFE |
| Spring | SUS304 |

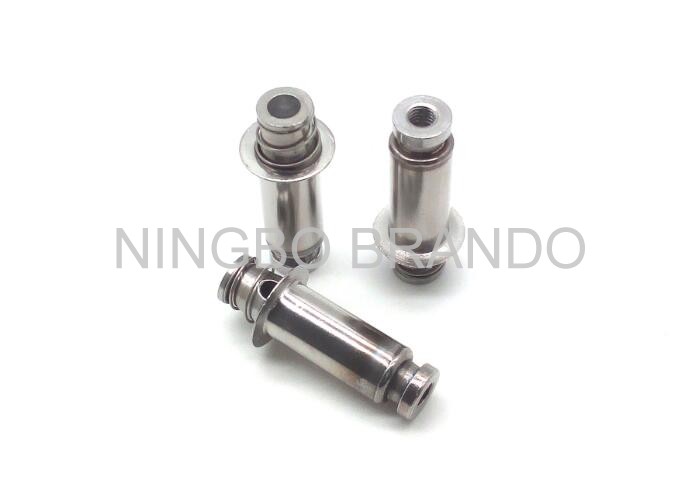

Solenoid Stem pictures:

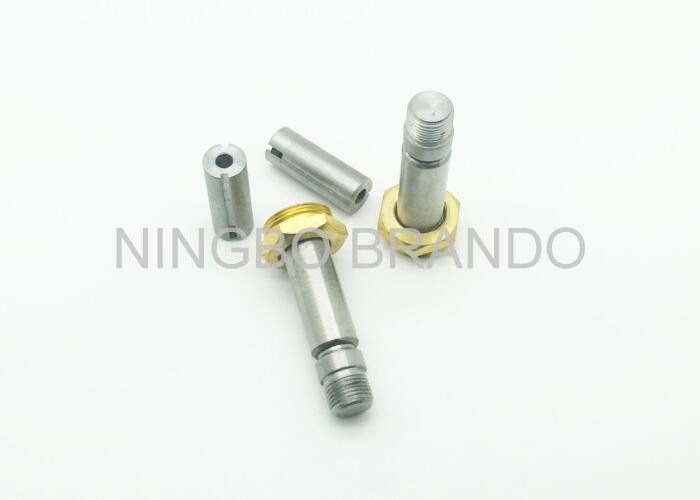

We also produce other kinds of tube

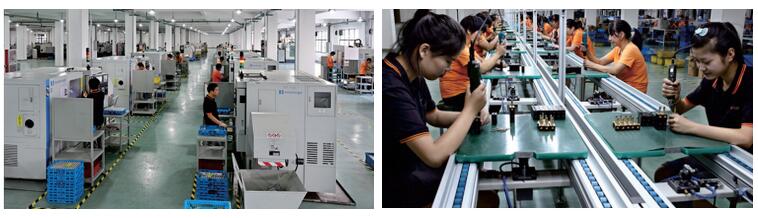

The Working Environment:
The questions you may want to know:
For OEM products
We will finish the production within 20 days after payment has been confirmed.
About delivery and shipping
We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our
mission.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Welcome your any question, we will response at once. We also can produce as customized.
Welcome your drawing or sample.
