Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

Brand Name : BRANDO

Model Number : 2W160

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Pc

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Water Solenoid Valve Diaphragm

Diaphragm Material : NBR, EPDM, FKM

Fitted Valve Port Size : 3/8'', 1/2''

Fitted Valve Model : 2W160-10, 2S160-10, 2W160-15, 2S160-15

Contact Now

Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

Diaphragm ( Membrane ) for 3/8'' & 1/2'' solenoid valve 2W160-10, 2S160-10, 2W160-15, 2S160-15. They are 2 way, semi-direct lift valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when energized to allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as water, air, gas, diesel fuel, Freon, weak acids and weak alkali.

Ordering Code of Diaphragm For Water Solenoid Valve:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
2W160
2W160-10
3/8''
NBR
2S160-10
2W160-15
1/2''
2S160-15
2W200
2W200-20
3/4''
2S200-20
2W250
2W250-25
1''
2S250-25
2W350
2W350-35
1-1/4''
2S350-35
2W400
2W400-40
1-1/2''
2S400-40
2W500
2W500-50
2''
2S500-50
Tips: EPDM, FKM all available.

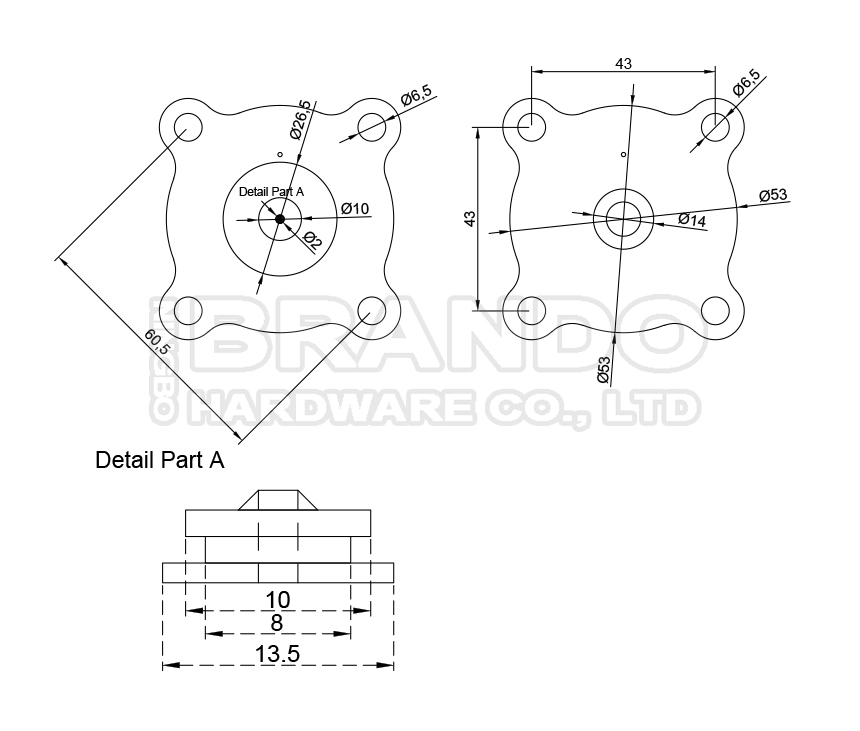

Dimension of 3/8'' & 1/2'' Water Solenoid Valve Diaphragm:

Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

Video of 3/8'' & 1/2'' Water Solenoid Valve Diaphragm:

Pictures of Solenoid Valve Membrane Production:

Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

More Products For Water Solenoid Valve for you to choose:

Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15 Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

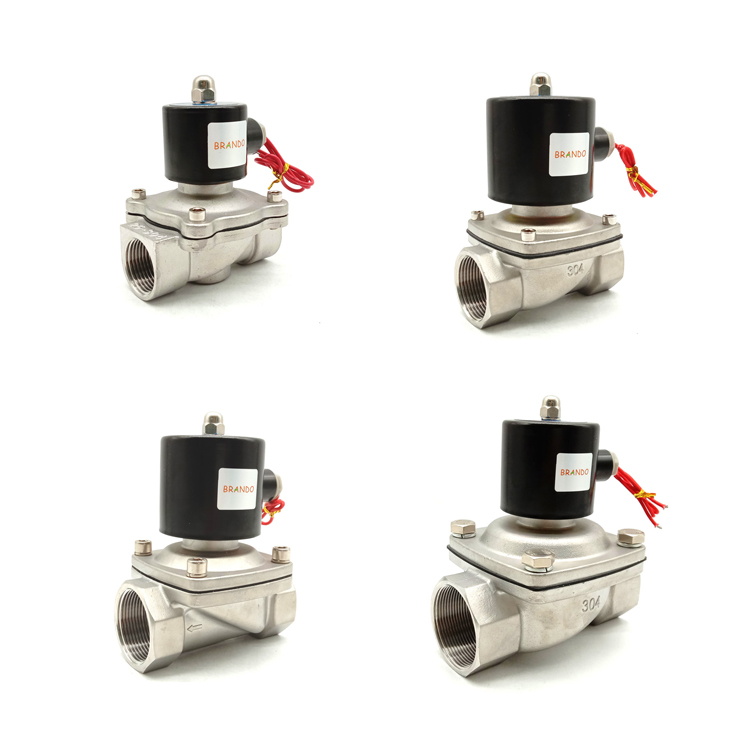

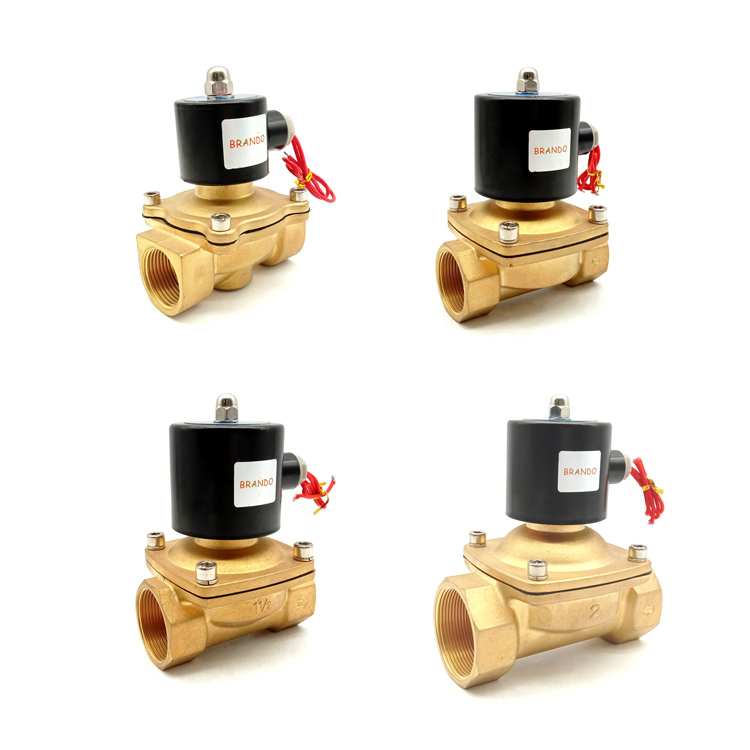

Brass Water Solenoid Valve Stainless Steel Water Solenoid Valve
Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15 Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15

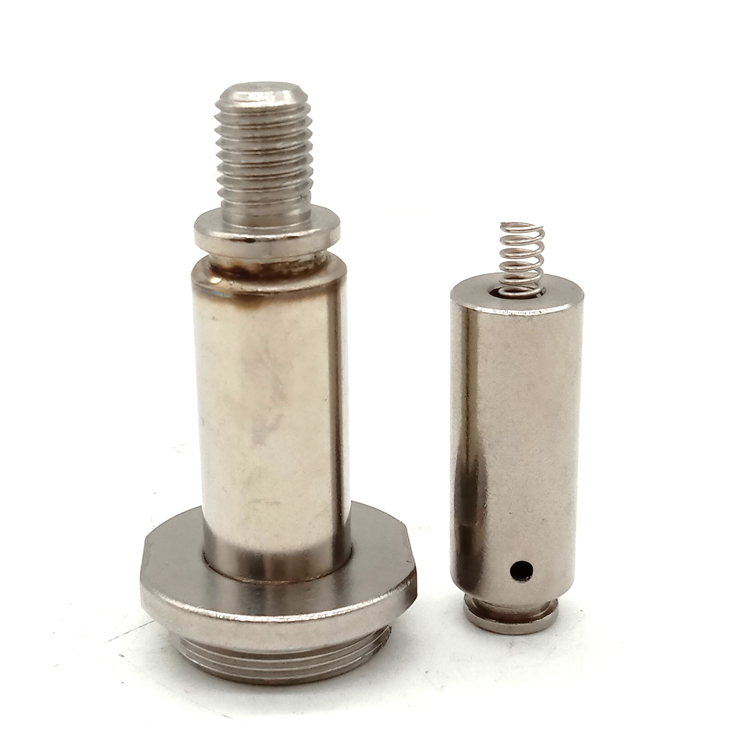

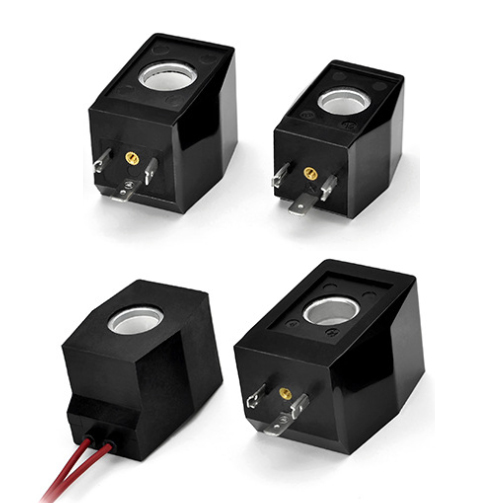

Solenoid Coil Solenoid Armature
