Yuken Type Hydraulic Solenoid Coil D12 12V D24 24V A100 110V A200 220V

Yuken Type Hydraulic Solenoid Coil D12 12V D24 24V A100 110V A200 220V

Yuken solenoid coil, also known as Yuken valve coil, or Yuken coil for directional valves. Yuken solenoid coil is the main part of Yuken hydraulic solenoids. The hydraulic solenoid is the actuator of Yuken DSG directional valves. A complete hydraulic solenoid is consist of a solenoid coil and a solenoid tube assembly.

Replacement solenoid coils are needed in hydraulic systems when the solenoid coil used to control a hydraulic solenoid valve wears out or stops functioning. A solenoid is an electromagnet that consists of a tightly wrapped metal coil around a solid metal core. They produce a controlled, uniform magnetic field, and the metal coil can be inserted or removed which creates a method of control for various devices, including a hydraulic valve.

How do solenoid coils work in a hydraulic system?
In a hydraulic solenoid valve, solenoids are used to control the flow of fluid. Most commonly, they are used as a low-power switch that opens and closes a pilot valve, which in turns controls the main valve by applying pressure to a connected piston or diaphragm.

Dimension & Data of Hydraulic Solenoid Valve Coil:

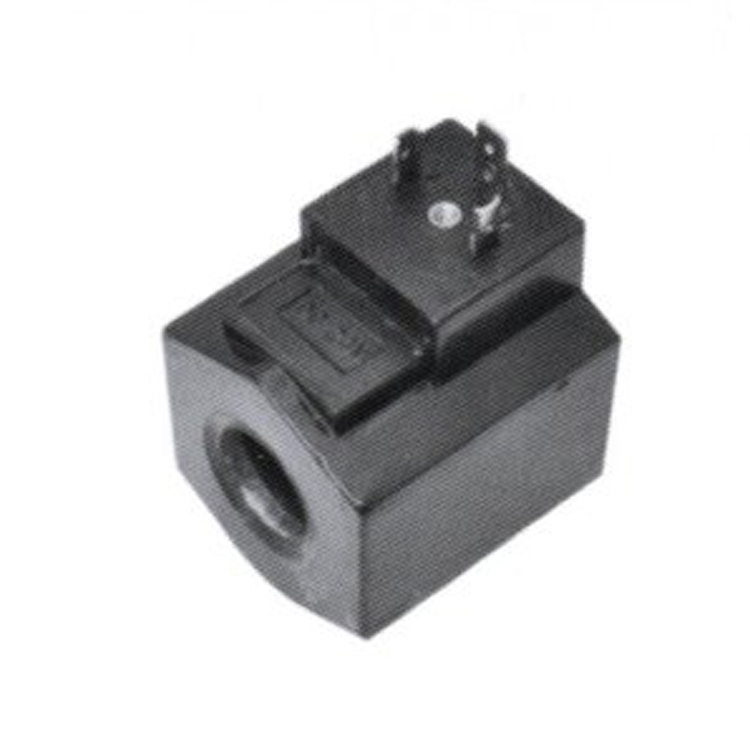

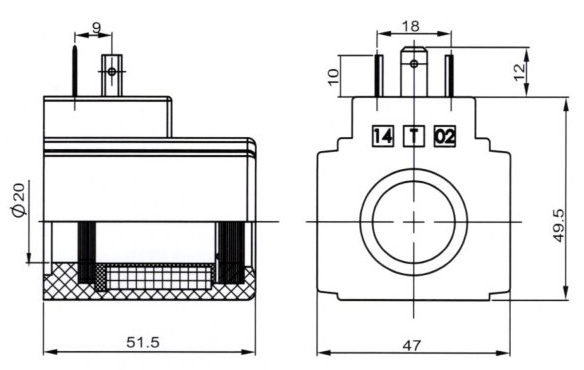

Picture	Dimension	Model	BB23660407
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	30W
		Connector Type	DIN 43650A
		Insulation Class	F
		Protection Class	IP65

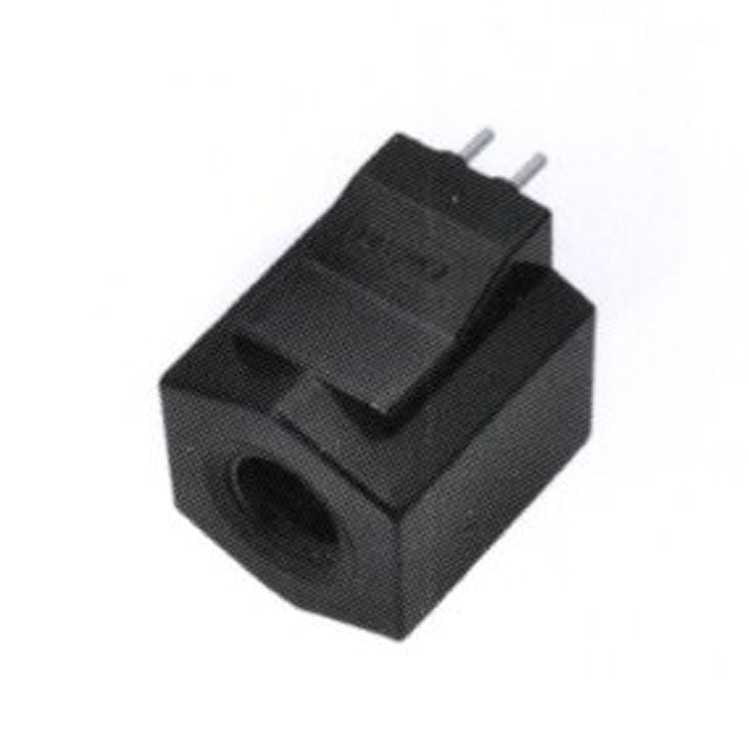

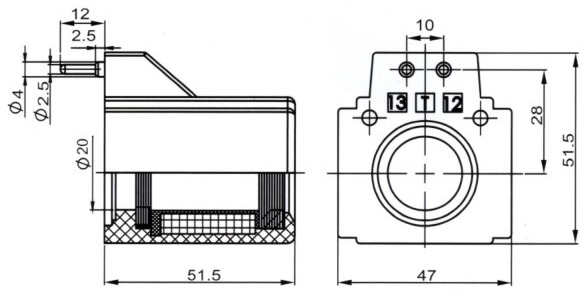

Picture	Dimension	Model	BB20151537
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	30W
		Connector Type	2 Pins (Plug In Type)
		Insulation Class	F
		Protection Class	IP65

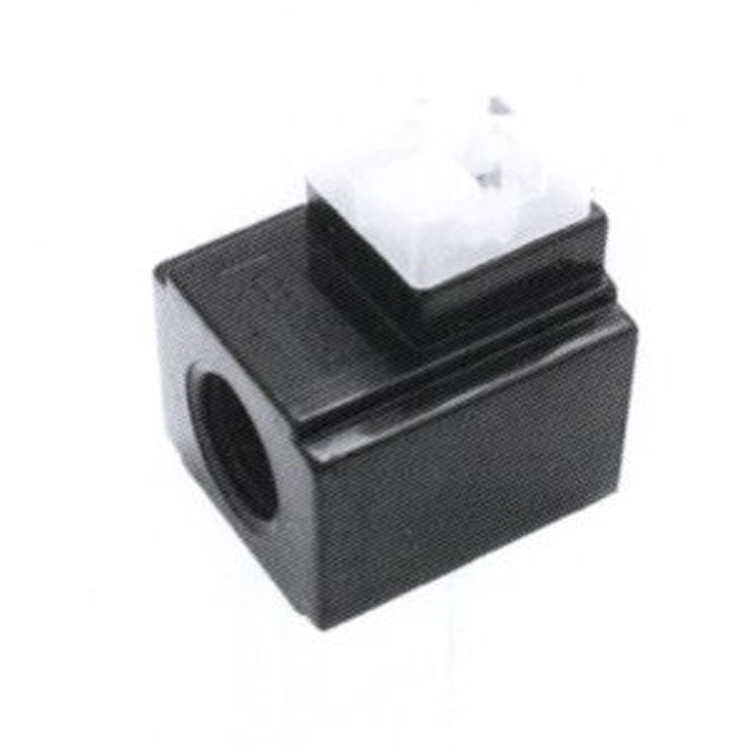

Picture	Dimension	Model	BB20151715
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	DIN43650A
		Insulation Class	H
		Protection Class	IP65

Picture	Dimension	Model	BB20051538
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	2 Pins (Plug In Type)
		Insulation Class	H
		Protection Class	IP65

Brando Factory Production of Solenoid Valve Coil:

Other hydraulic solenoid valve coil fo you to choose:

Vickers Type Hydraulic Solenoid Valve Coil:

Bosch Rexroth Type Hydraulic Solenoid Valve Coil:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
