AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

Brand Name : BRANDO

Model Number : BB16039001

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1000

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Box, Carton, Pallet

Price : Negotiation

Product Name : Solenoid Valve Coil

Ordering Code : AB410

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Power : 26VA, 18W

Protection Class : IP65

Insulation Class : F, H

Connector : DIN43650A

Coil Hole Diameter : 16mm

Contact Now

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

This solenoid coil is popularly used in water solenoid valves, like 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2S040-10, 2S160-15, 2S200-20, 2S250-25. Voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC, Power: 26VA, 18W. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

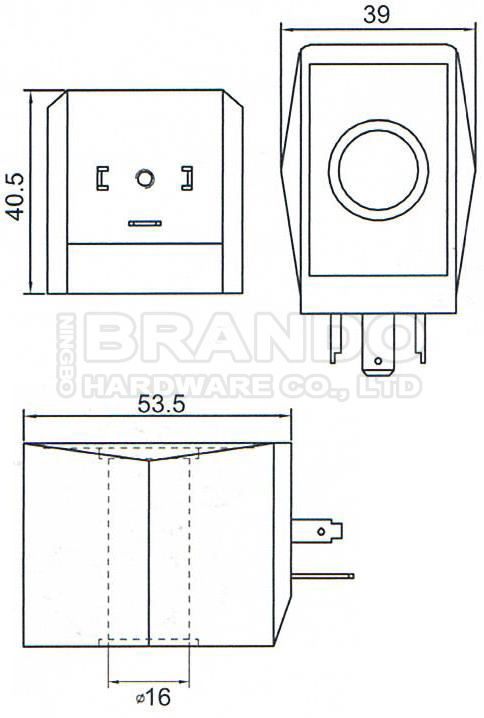

Dimension & Data of Water Solenoid Valve Coil, Armature:

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

BRANDO Model
BB16039001
Voltage

12VDC, 24VDC,

24VAC, 110VAC, 220VAC
Power
26VA, 18W
Other voltage and power can be customized
Insulation Class
F, H
Connector
DIN43650A

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

BRANDO Model
BAPC216038501
2 Way or 3 Way
2 Way
NC or NO
NC
Plunger Tube Material
Stainless Steel
Moving Core Material
430FR
Shading Ring Material
Copper
Seal Material
NBR, EPDM, FKM
Mounting Type
Thread

Video of Coil For Water Solenoid Valve:

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W
Brass Solenoid Valve Stainless Steel Solenoid Valve Plastic Solenoid Valve


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
