CA62T CA62T010-300 CA62T010-305 2.5'' Inch Bag Filter Dust Collector Valve

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CA62T CA62T010-300 CA62T010-305 2.5'' Inch Bag Filter Dust Collector Valve

Brand Name : Brando

Model Number : CA62T

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : Negotiation

Packaging Details : inner boxes,cartons,pallets

Type : Right Angle Diaphragm Valve

Power : Solenoid

Media : Air

Port Size : 2-1/2''Inch

Structure : Diaphragm

Body Material : Aluminum Alloy

Diaphragm Material : NBR(Common), FKM(Available)

Number of Diaphragm : 2

Pressure : 0.1 to 0.8MPa

Temperature : -25 to +80℃

Price : Negotiation

Contact Now

CA62T CA62T010-300 CA62T010-305 2.5'' Inch Bag Filter Dust Collector Valve

According to the direction of the gas input end and the output end: right angle type, the angle between the input end and the output end is 90°, the input end is connected with the gas distribution box, the output end is connected with the dust collector blow pipe; the submerged type is directly It is installed on the gas distribution box and connected to the gas distribution box at the input end, and the output end is connected with the dust spray pipe by the connecting pipe; the straight-through type, the center line of the input end and the output end are the same straight line, and the input end is connected with the gas distribution box. Connected, the output is connected to the dust collector blow pipe.

Technical Data of Goyen Pulse Jet Valve:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Nonimal size
φ15
φ20
φ25
φ35
φ45
φ50
φ62
φ76
Port Size
G1/2''
G3/4''
G1''
G1 1/4''
G1 1/2''
G2''
G2 1/2''
G3''
Working pressure
0.3-0.8MPa
Temp. range
-5℃ - 55℃
Relative humidity
≤85%
Working
medium
Compressed clean air
Service life
Over 1000000 times
Voltage
DC24V, AC24V, AC110V, AC220V

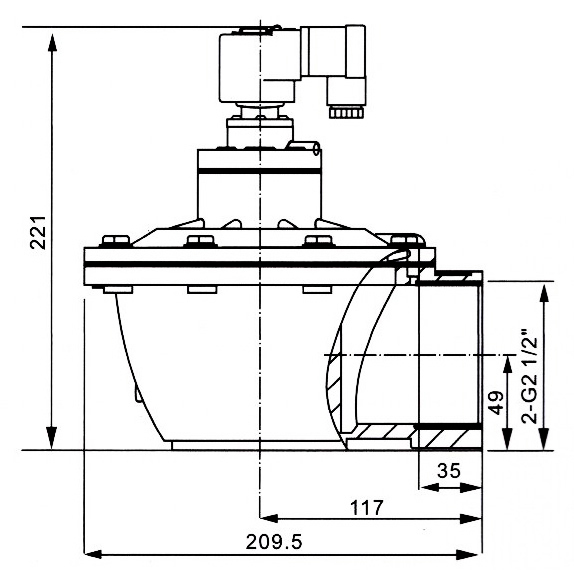

Main Dimension:

CA62T CA62T010-300 CA62T010-305 2.5'' Inch Bag Filter Dust Collector Valve

CA RCA Series Pulse Jet Valve For Dust Collector System:

Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flanged Valve
1.5'' Inlet
2'' Inlet
CA25FS
CA45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA76MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
