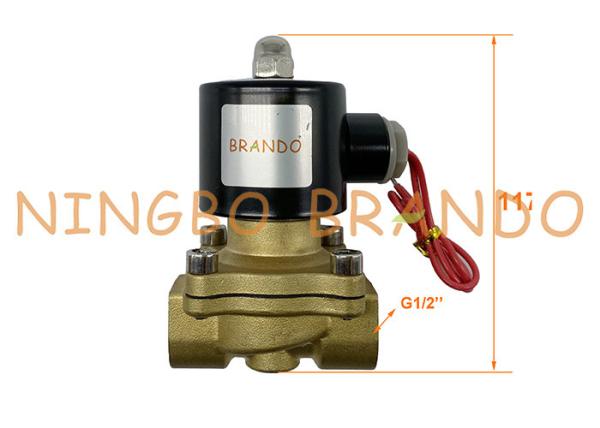

UW Series 1/2'' UD-15 2W160-15 Semi-Diaphragm Brass Solenoid Valve

UW Series 1/2'' UD-15 2W160-15 Semi-Diaphragm Brass Solenoid Valve

Technical Data of 2W & 2S Solenoid Valve:

Main dimension of 2W & 2S Series Solenoid Valves:

Pilot Diaphragm Solenoid Valve

Pilot solenoid valves use the differential pressure of the medium over the valve ports to open and close. Also known as servo-assisted solenoids, these valves provide high flow rates and can operate at higher pressure and temperature ranges, with lower power consumption. A servo-assisted, diaphragm solenoid valve with pilot control employs the use of a small chamber directly above the diaphragm to assist in the operation of the valve. Process fluid is allowed to enter the chamber through a small orifice in the inlet port, and in a normally closed valve, compresses against the diaphragm and forces is against the seat to maintain the closing seal.

when the valve receives an electrical signal, a magnetic field is formed which attracts the plunger covering the pilot orifice to lift off, causing system pressure (holding the diaphragm/piston closed) to drop.

As system pressure on the top of the diaphragm/piston is reduced, full system pressure on the other side of the diaphragm/piston acts to lift the diaphragm/piston away from the main orifice, which allows media flow through the valve.

Since the bleed orifice is dimensionally smaller than the pilot orifice, the system pressure can t rebuild on the top of the diaphragm/piston as long as the pilot orifice remains open.
