DMF-ZM-20 BFEC Quick Mount Diaphragm Valve For Baghouse
Our pulse jet valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Duty Cycle : The relative duty time cycle for ac voltage is 20% and for DC voltage is 10 % .This implies energised time is maximum 1/5th of de-energised time for AC and 1/10th for DC voltage.
Installation : Mounting in any position will not affect pulse valve operation. However good engineering practice is to avoid scale and condensed water entering valve body for trouble free performance.
Technical Data of Quick Mount Pulse Jet Valves:
| | | | |
| | | | |
| Port size | mm | | | |
| in | | | |
| Blowing Area (m2) | | | |
| Number of Diaphragms | | | |
| Flow | Kv | | | |
| Cv | | | |
| Pressure (Psi) | |
| Temperature (℃) | |
| Voltage | |
Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

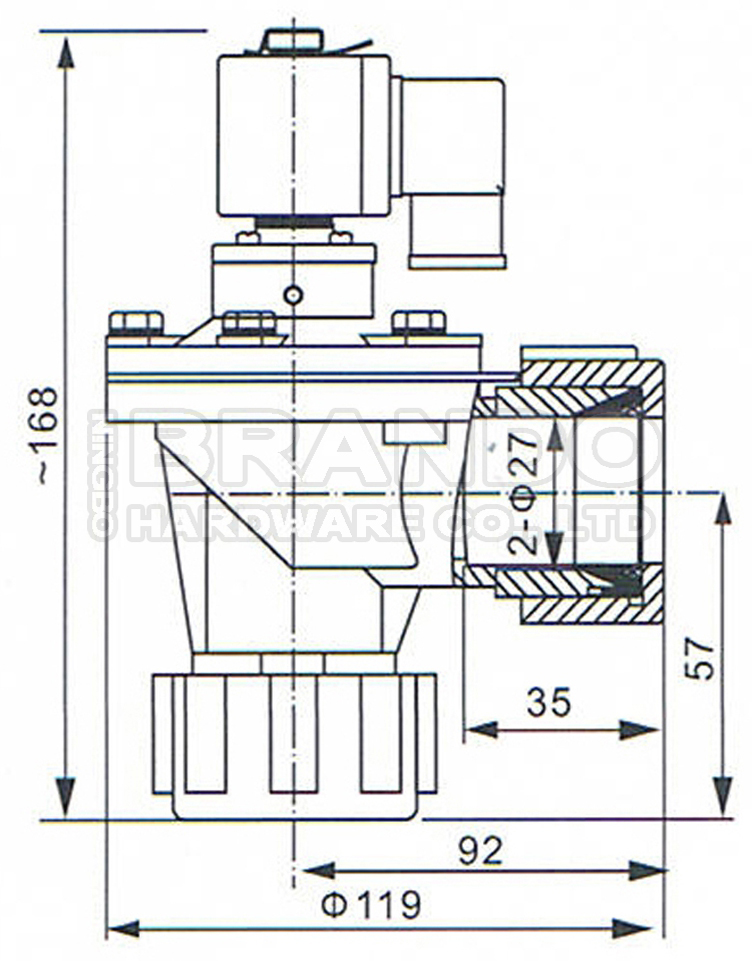

Dimension of DMF-ZM-20 BFEC Pulse Jet Valve:
Video of BFEC DMF-ZM-20 Pulse Jet Valve:
More BFEC Pulse Valve For You to Choose:

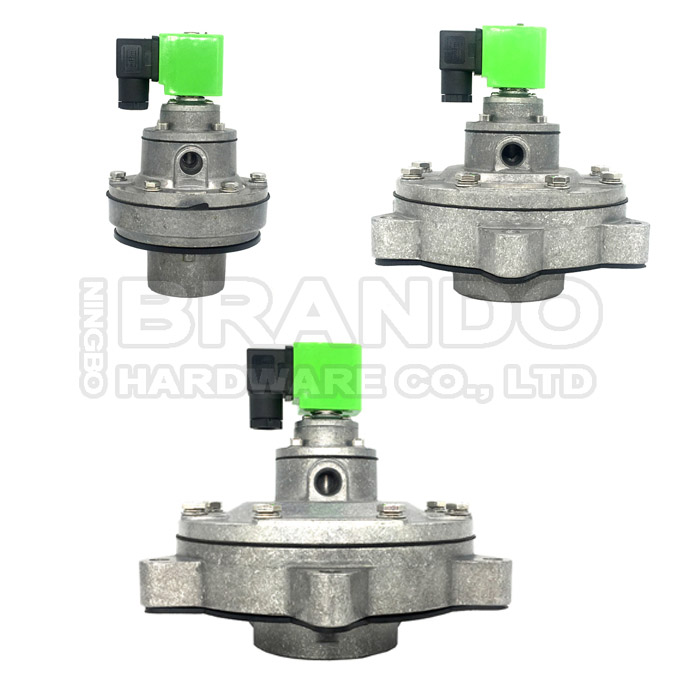

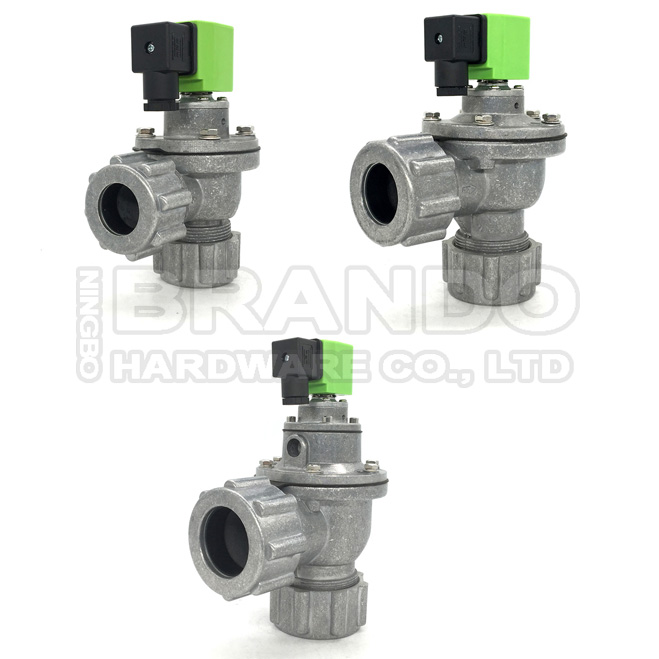

Right Angle Type Quick Mount Type Submerged Type

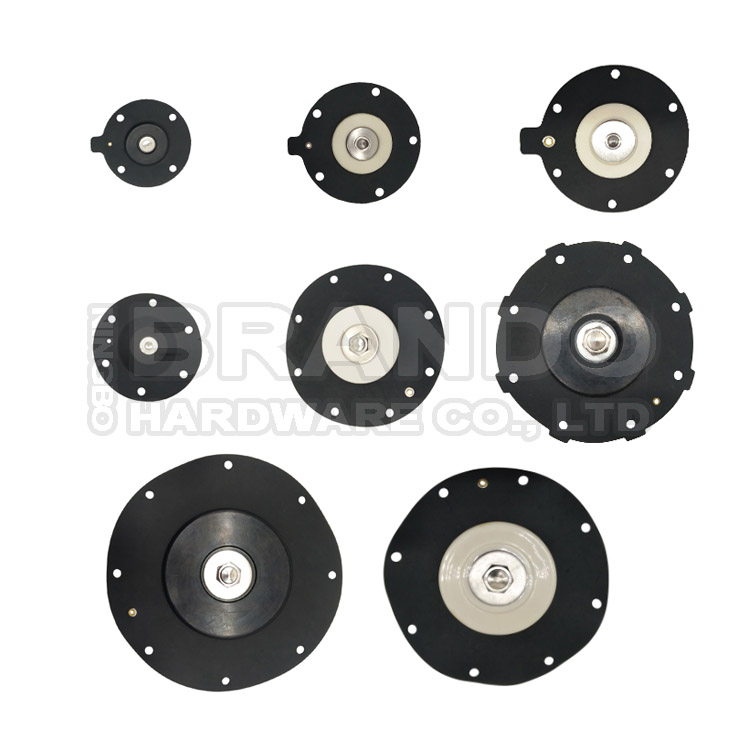

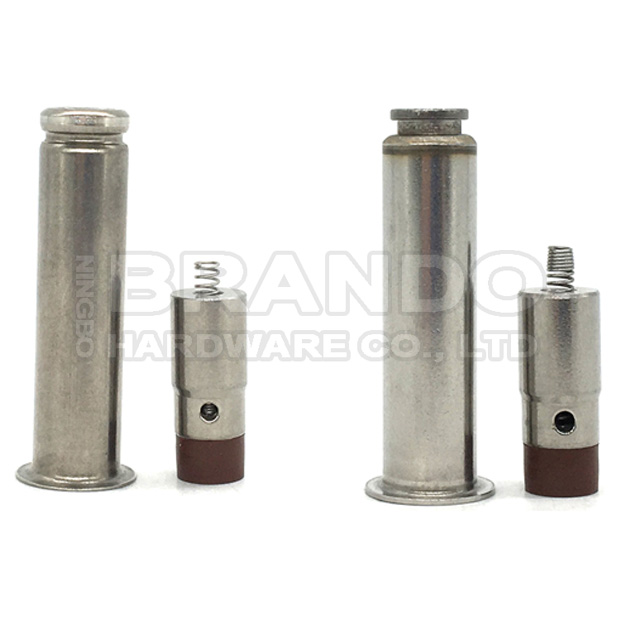

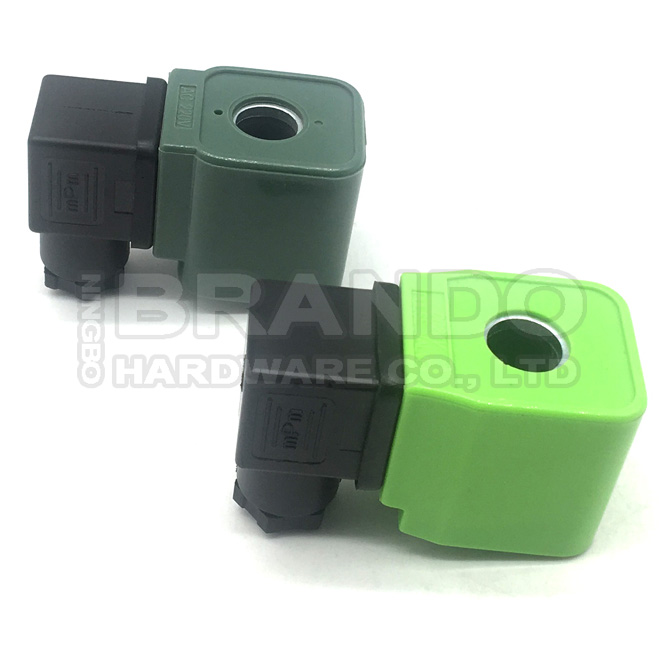

Diaphragm Solenoid Coil Armature Assembly Pulse Controller
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
