3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector

Brand Name : BRANDO

Model Number : DMF-Z-76S

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : Negotiation

Packaging Details : Inner Box,Carton,Pallet

Product Name : BFEC Pulse Jet Valve

Valve Type : Right Angle (Threaded)

Port Size : 3''

Coil Voltage : 24VDC, 220VAC

Diaphragm Material : NBR

No of Diaphragm : 2

Contact Now

3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector

Pulse jet valve (also called diaphragm valve) is the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. Controlled by the output signals of the pulse control device, it makes dust clean to the filter bags cell by cell to keep the resistance of the bag house within the sec range and thus guarantee the processing functions and the dust collecting efficiency of the bag house dust collector. Our pulse jet valves are designed specifically for dust applications with high flow, long life and fast on / off switching characteristics, to ensure economic and reliable work.


Technical Data of Z series Right Angle Pulse Jet Valves:

Model
Nominal diametrer
Number of diaphragms
Inlet
Outlet
Weight (kg)
mm
inch
DMF-Z-20
Φ20
3/4''
1
3/4''
3/4''
0.65
DMF-Z-25
Φ25
1'''
1
1''
1''
0.8
DMF-Z-40S
Φ40
1 1/2''
2
1 1/2''
1 1/2''
1.4
DMF-Z-50S
Φ50
2''
2
2''
2
2.4
DMF-Z-62S
Φ62
2 1/2''
2
2 1/2''
2 1/2''
3.5
DMF-Z-76S
Φ76
3''
2
3''
3''
4.3
DMF-Z-90S
Φ90
3 1/2''
2
3 1/2''
3 1/2''
5.75
DMF-Z-102S
Φ102
4''
2
4''
4''
7.3
DMF-20L-B
Φ20
3/4''
1
3/4''
Φ27
0.75

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

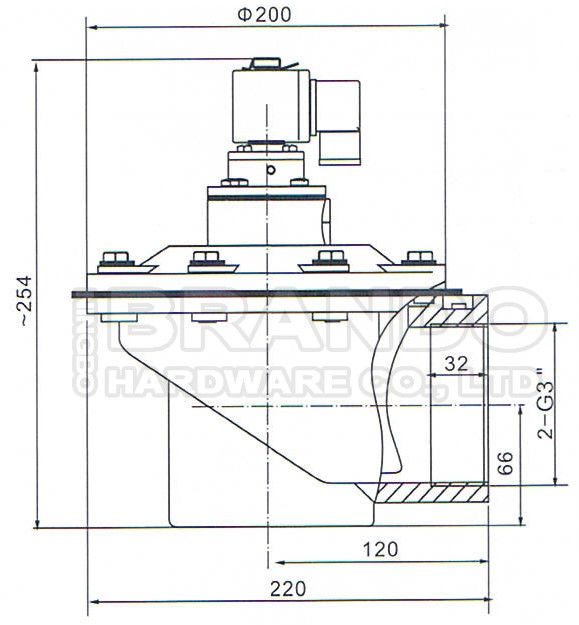

Dimension of DMF-Z-76S BFEC Pulse Jet Valve:

3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector

Video of BFEC DMF-Z-76S Pulse Jet Valve:


More BFEC Pulse Valve For You to Choose:

3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector

Right Angle Type Quick Mount Type Submerged Type

3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector 3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector 3 Inch DMF-Z-76S SBFEC Type Pulse Jet Valve For Dust Collector

Diaphragm Solenoid Coil Armature Assembly Pulse Controller
