Bosch Rexroth Type R901003053 R901272648 Hydraulic Solenoid Valve Coil
1. Product Name: Bosch Rexroth Type Hydraulic Solenoid Valve Coil
2. Voltage: 12VDC, 24VDC, 110VAC 50Hz, 120VAC 60Hz
3. Connector Type: DIN 43650, AMP, DEUTSCH, Flying Lead, 2 Pins.
4. Inuslation Class: Class H, Class F.
5. Protection Class: IP65
6. Application: Hydraulic Directional Valves
7. Reference No: R978839349, R900029571, R900029574, R900019841, R901002932, R901002319, R900991678, R900991121, R901050010, R901003055, R901003053, R900729189, R900729190, R901022180, R901370939, R901338900, R901272648, R901272647, R900021388, R901232758, R900021462, R900021463, R900021389, R900217812, R900019792, R900019793, R900021464, R900020175, R900019801, R900219602, R900019816, R900545268.

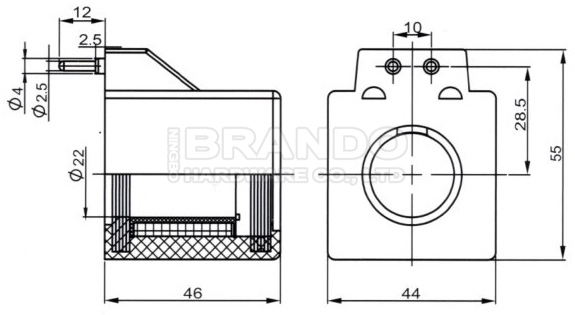

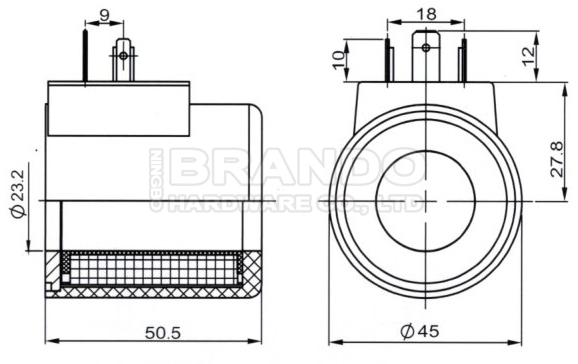

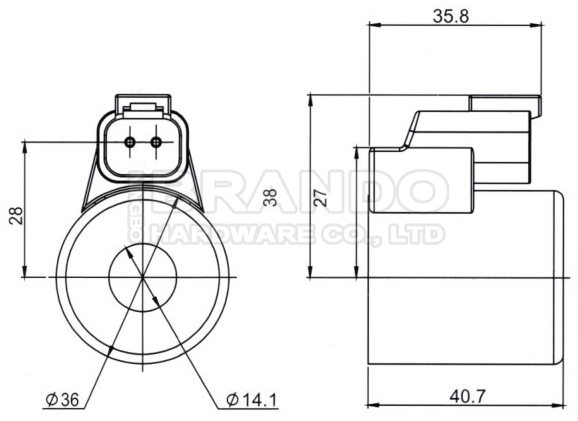

Technical data of Bosch Rexroth Type Hydraulic Solenoid Coils:
| Model | |
| Voltages | 12VDC, 24VDC, 110VAC, 220VAC (50/60Hz) |
| Connector | |
| Power | |
| Insulation Class | |
| Protection Class | |
| Model | |
| Voltages | 12VDC, 24VDC, 110VAC, 220VAC (50/60Hz) |
| Connector | |
| Power | |
| Insulation Class | |
| Protection Class | |
| Model | |
| Voltages | 12VDC, 24VDC, 110VAC, 220VAC (50/60Hz) |
| Connector | |
| Power | |
| Insulation Class | |
| Protection Class | |
| Model | |
| Voltages | 12VDC, 24VDC, 110VAC, 220VAC (50/60Hz) |
| Connector | |
| Power | |
| Insulation Class | |
| Protection Class | |
Brando offers a wide range of solenoid valve coils, which designed into various types, mainly features encapsulated coils, including thermoplastic and thermosetting. Our coils have the characteristics of High Performance, High Reliability and Long Service Life, can be used for Different Applications. We also provide excellent Customized Service.
Solenoid Coil Main Features:
1. Heat resistant bobbin moulded with thermoplastic polyester material;
2. High quality Enameled copper wire, F, H, N different insulation class for choose;
3. Built-in magnetic yoke, made by low carbon iron;
4. Encapsulation with high quality specially designed thermosetting & thermoplastic material.
Solenoid Coil Main Structure:
The conventional structure of a solenoid valve coil includes: Framework, Enameled copper wire, PIN, Yoke and Encapsulation. In addition, according to the actual use, there will be a magnetizing guide ring, a rectifier bridge be used for rectifying, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
