M17 Thread LPG CNG 2/2 Way NC Brass Solenoid Valve Armature
How does an armature assembly work?
When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.
When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.
Condition:New
Applicable Industries:LPG/CNG
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:13.0mm
Installation Height for Coil Assembling:33.5mm
Retaining Nut Thread Size:M12 Thread
Guide Tube Material:Brass
Seals Material:FKM
Mounting Type:M17 Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close

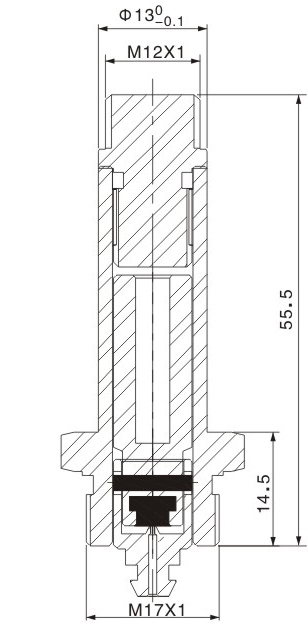

Dimension of BAPC213036043 Armature Assembly:
Technical Data:
| Model Number | |
| Guide Tube Outer Diameter | |
| Installation Height for Coil Assembling | |
| Guide Tube Material | |
| Seal Material | NBR, HNBR, FKM, EPDM, Silicone, all available |
| Connection Type | |
| Voltage | All range of AC and DC available |
| Position and Way | |
| Non-working Status | |
| Application Examples | |
Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
