SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

Name: SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing
Brand: BRANDO
Price: 1 USD

Brand Name : BRANDO

Model Number : CXSM

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 work days

Packaging Details : Inner Box, Carton, Pallet

Bore Size (mm) : 6, 10, 16, 20, 25, 32

Standard Stroke (mm) : 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100

Max Operating Pressure : 0.7 Mpa

Cushion : Rubber Bumper

Port Size : M5x0.8, 1/8''

Bearing Type : Slide Bearing

Contact Now

SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

SMC Type CXS Series is a dual piston air cylinder with non-rotating accuracy ± 0.1°. The CXSM slide bearing type provides lateral stability protecting it from side load impacts.

1. Dual rod cylinder with slide bearing
2. Bore sizes: 6, 10, 15, 20, 25, 32 (mm)
3. Strokes from 10mm through 100mm depending upon bore size
4. Variety of switches and a variety of lead wire lengths

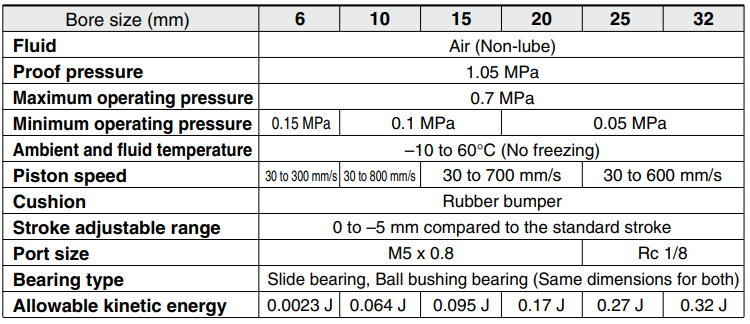

Specifications of CXS Series Pneumatic Cylinder:

SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

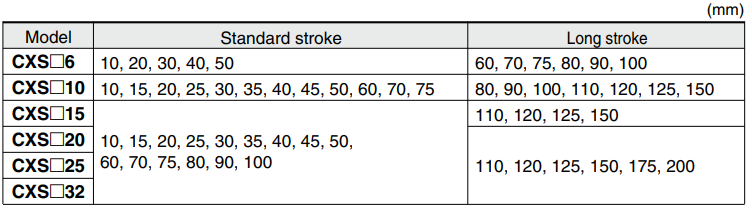

Stroke of CXS Series Pneumatic Cylinder:

SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

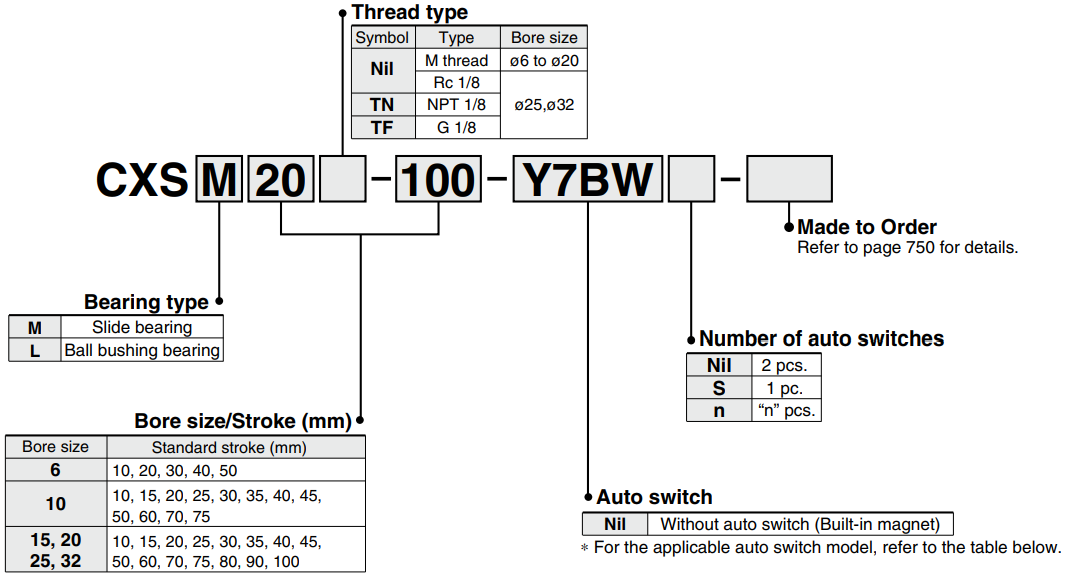

Ordering Code of CXS Series Pneumatic Cylinder:
SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

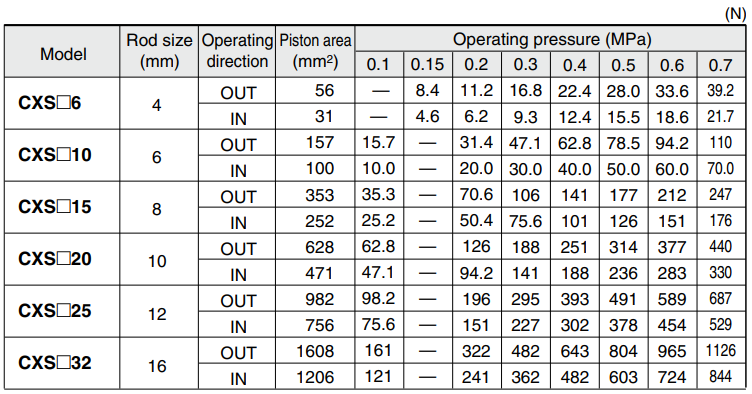

Theoretical Output of CXS Series Pneumatic Cylinder:

SMC Type CXSM Series Double Rod Pneumatic Air Cylinders Slide Bearing

Brando Supply Pneumatic Air Cylinders:

Airtac Type Pneumatic Cylinder	Festo Type Pneumatic Cylinder	SMC Type Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
