SCG353A043 SCDUG353A043 Right Angle 3/4'' Diaphragm Pulse Jet Valve
Solenoid valve sealing material
Nitrile butadiene rubber
Made of butadiene and acrylonitrile by emulsion polymerization, the nitrile rubber is mainly produced by low-temperature emulsion polymerization, which has excellent oil resistance, high wear resistance, good heat resistance and strong adhesion. The disadvantages are poor low temperature resistance, poor ozone resistance, poor electrical properties, and slightly lower elasticity.
Nitrile rubber has excellent oil resistance, its oil resistance is second only to polysulfide rubber and fluororubber, and it has wear resistance and air tightness. The disadvantage of NBR is that it is not resistant to ozone and aromatic, halogenated hydrocarbons, ketones and ester solvents. It is not suitable for insulating materials.
Youtube Video of SCG353A043 Right Angle Pneumatic Pulse Valve:
Technical Data:
| Model No | SCG353A043 |
| Port Size | G 3/4 Inch |
| Nornimal Size | Φ20 |
| Working Pressure | 0.3~0.8Mpa |
| Working Temperature | -5~+55℃ |
| Relative Humidity | ≤85% |
| Working Medium | Air |
| Protection Class | IP65 |
| Service Life | Over 1000000 times |
| Voltage | AC220V, AC110V, AC24V, DC24V |

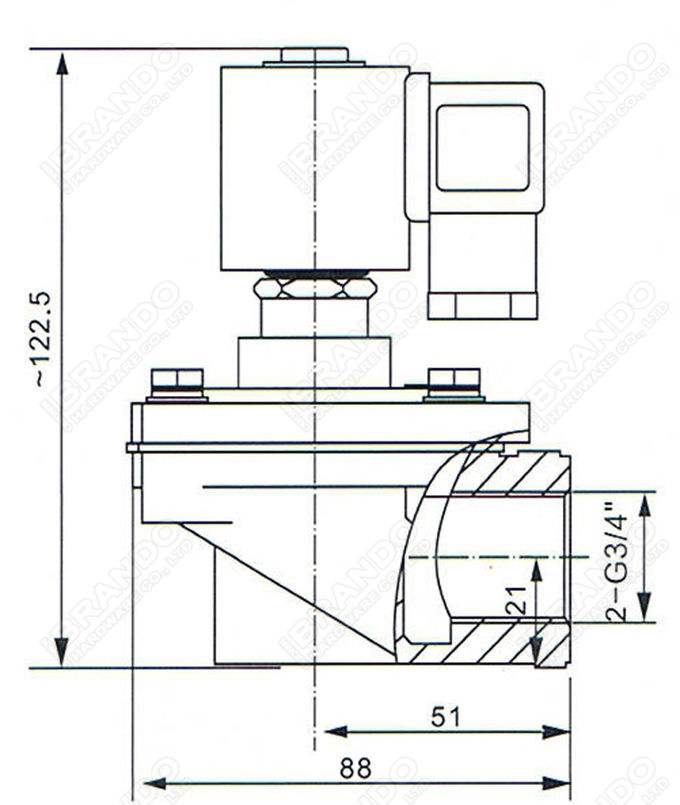

Dimension of SCG353A043 Pulse Jet Valve:
Details About SCG353A043 Pilot Operated Solenoid Pusle Valve:
Features of ASCO Type 353 Series Pulse Valve:
Specially designed for reverse jet-type dust collector systems
High flow Cv(s) to 140 for effective bag cleaning
High cycle life and fast opening/closing
High quality polyacetal (POM) piston cartridge provides a long operating life and a large temperature range
Quick mount connection eliminates thread cutting and sealing
Integral operators have molded epoxy coils, with available options
Valves may be mounted in any position
Application of ASCO Type Solenoid Pulse Valve:
The ASCO Type Dust Collector Series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures, and bulkhead fittings that have been specially designed for use in dust collector systems.
Concrete Processing
Grain, Agriculture and Feed
Metal Working (Abrasive Blasting)
Food Processing
Foundries
Pharmaceutical
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
