2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

  • 1
  • 2

Brand Name : Brando

Model Number : 2V025-06

Certification : CE

Place of Origin : China

MOQ : 300pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Individual box, Carton, Pallet

Fluids : Air, Water, Oil

Action : Direct Acting

Function : 2 Way, Normally Closed (NC)

Orifice Size : 2.5mm

Port Size : 1/8''

Pressure Range : 0 to 1.0MPa (0 to 145PSI)

Max Pressure Resistance : 1.5MPa (215PSI)

Body Material : Aluminum Alloy

Seal Material : NBR (Standard), VITON (Option)

Min. Action Time : 0.05 Second And Below

Contact Now

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

Product Features:

1. Safety, applicability, lightweight form factor.
2. For remote electric control fluid conduit in the valve opening and closing.
3. Please note that the gas flow direction and the takeover tooth type is correct installation.
4. With solenoid operated for control appropriate flow and direction, provide great performance.
5. Great body for a long lifespan, perfect for electrically driven pneumatic power control.

Technical Data of 2V Series Pneumatic Solenoid Valves:

Model No
2V025-06
2V025-08
Fluids
Air, Water, Oil
Action
Direct Acting
Type
2 Way, Normally Closed (NC)
Orifice size
2.5
2.5
Cv value
0.23
0.25
Port size
1/8''
1/4''
Viscosity limit
Under 20Cst
Pressure range
0~1.0Mpa (0~145psi)
Proof pressure
1.5Mpa (215psi)
Material body
Anodized Aluminum
Seal Material
NBR
Min. activating time sec
0.05sec and below

Dimension of 2V025-06 Pneumatic Solenoid Valve:

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

Product Video of 2V025-06 Pneumatic Solenoid Valve:

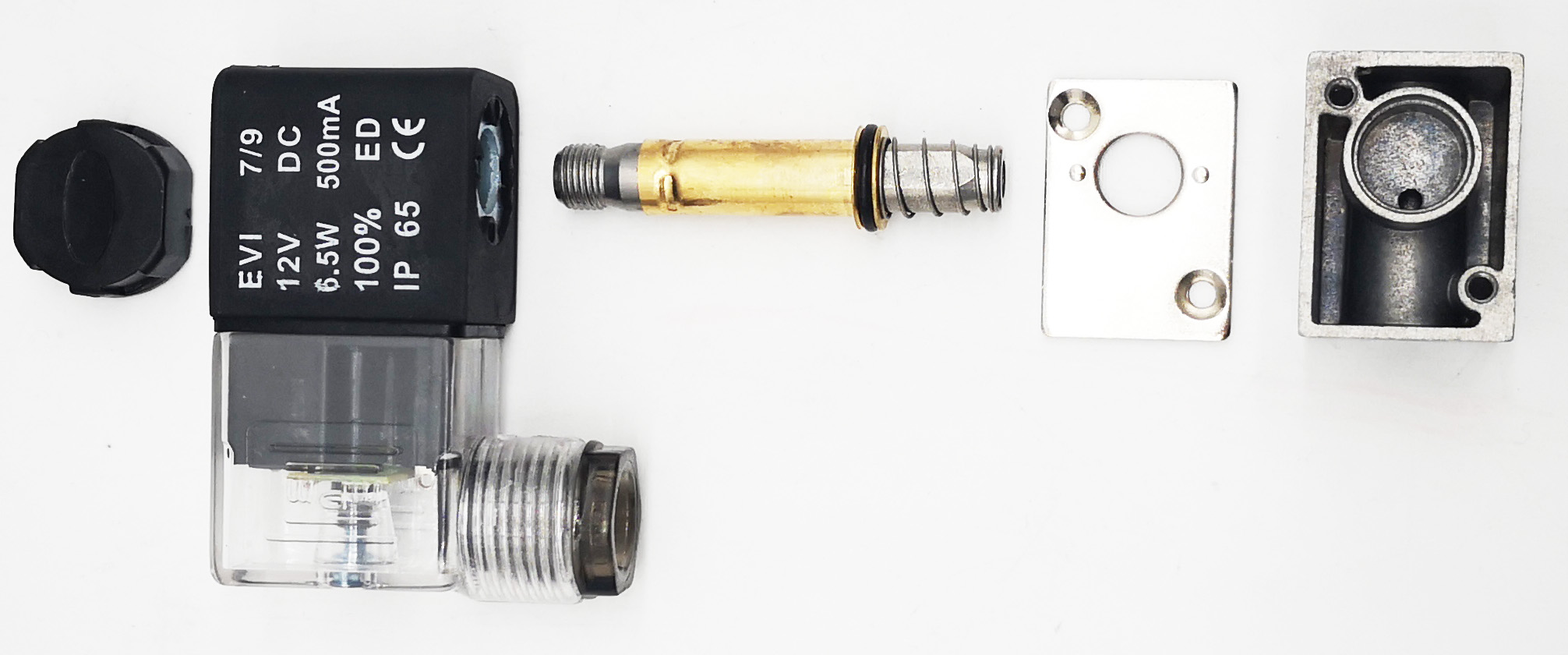

Deconstruction diagram of 2/2 Way Direct Acting Solenoid Pneumatic Valve:

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

More Pneumatic Products for you to choose:

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

2/2 Way 3/2 Way 5/2 Way, Single Solenoid

2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve2V025-06 1/8'' Inch NC Pneumatic Water Electric Solenoid Valve

5/2 Way, Double Solenoid 5/3 Way, Double Solenoid Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
