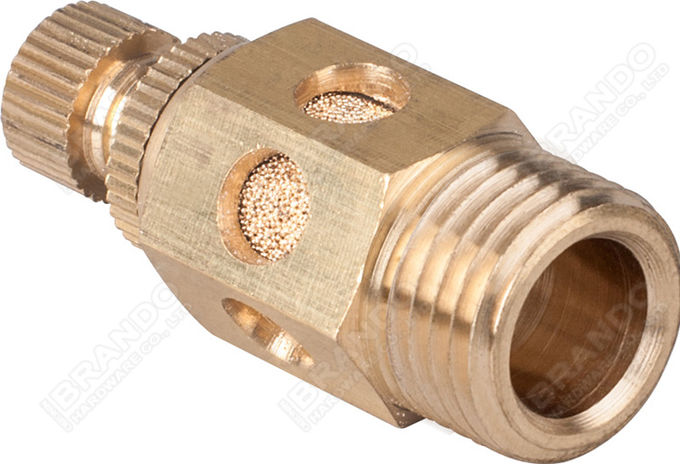

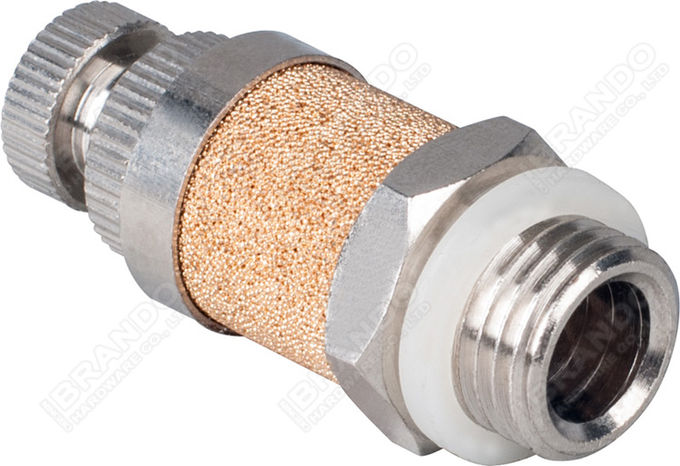

Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

Brand Name : BRANDO

Model Number : PXL-Z

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 5 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 1 week after payment

Packaging Details : PVC bag, then inner box, then carton, then pallet

Product Name : Pneumatic Silencer Throttle Valve

Tube OD (Inch) : 1/8'', 1/4'', 3/8'', 1/2'', 3/4''

Material : Brass

Working Pressure Range : 0 to 0.8MPa

Working Temperature : -10 To +250℃

Working Medium : Compressed Air

Contact Now

Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

Pneumatic mufflers, also called silencers, safely and quietly vent pressurized air to atmosphere. They are commonly installed on air valves, cylinders, manifolds and fittings. Without a muffler, air exhausting from many types of pneumatic-powered equipment can be so loud as to be detrimental to the surrounding environment and potentially harm workers. Thus, mufflers are usually needed. Typically, the devices are installed directly at the exhaust port and diffuse the released air through a porous material that increases the surface area which, in turn, reduces velocity, turbulence and noise levels.

Technical data of Pneumatic Silencer Muffler:

Model
Working Medium
Working Pressure
(MPa)
Working Temp
(℃)
Circulation Capacity
Noise Effect
"S" data
Nominal Flux
-2.5
Compressed Air
0 to 0.8
-10 to +250
5
200L/Min
≥20dB
-6
20
960L/Min
-8
40
1920L/Min
-10
60
2880L/Min
-15
110
5280L/Min
-20
190
9120L/Min
-25
300
10000L/Min
-32
400
19200L/Min
≥25dB
-40
650
31200L/Min
-55
700
33600L/Min

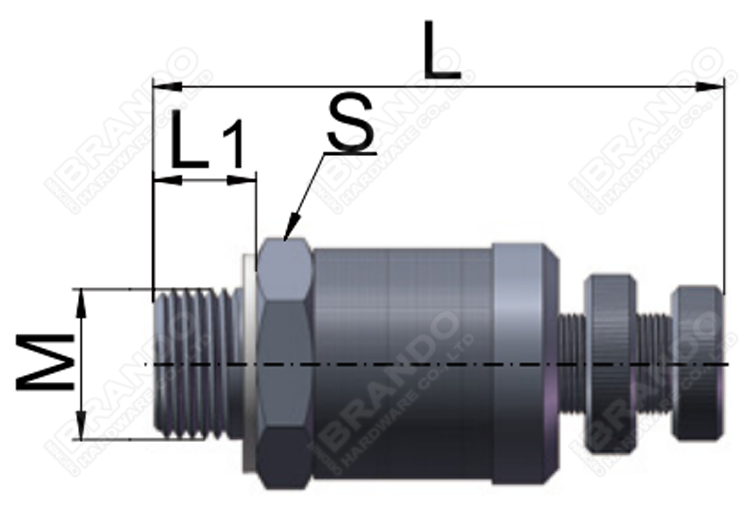

Dimension of Pneumatic Silencer Muffler:

Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

Model No
M
L1
L
S
PXL-Z4
M8X1
7
36
13
M10X1
7
36
13
G1/8''
7
36
13
PXL-Z6
M10X1
7
36
13
G1/8''
7
36
13
G1/4''
9
39
16
PXL-Z8
M12X1.25
9
43
17
G1/8''
7
41
17
G1/4''
9
43
17
G3/8''
10
43
19
PZL-Z10
M16X1.5
10
48
19
G3/8''
10
48
19
G1/2''
11
49
24
PZL-Z15
M20X1.5
11
61
25
G1/2''
11
61
25
PZL-Z20
M27X2
13
66
30
G3/4''
13
66
30

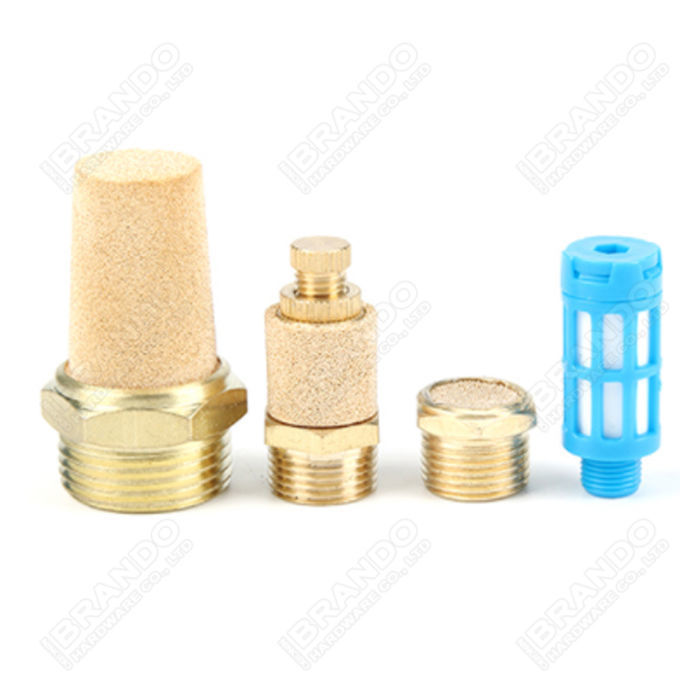

List of other Brass Pneumatic Air Muffler:

Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

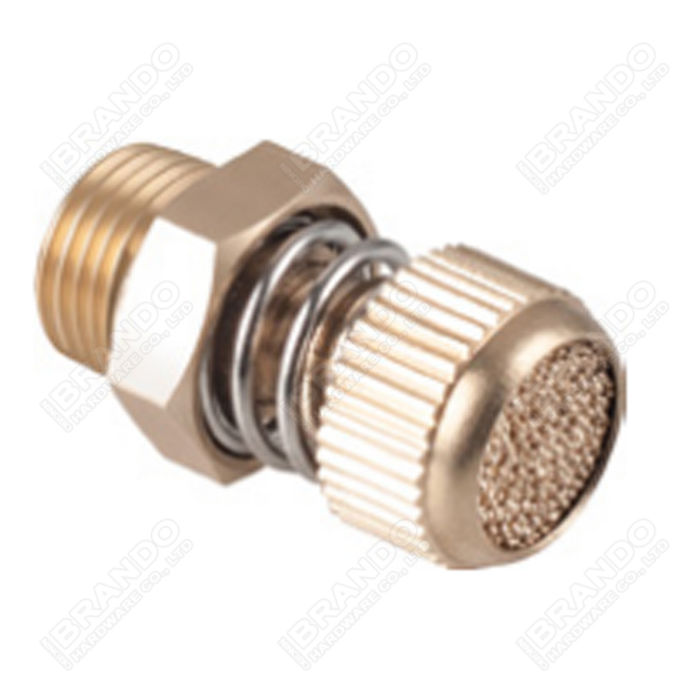

Throttle Valve C Type Throttle Valve PTV Throttle Valve SD Timing Muffler
Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

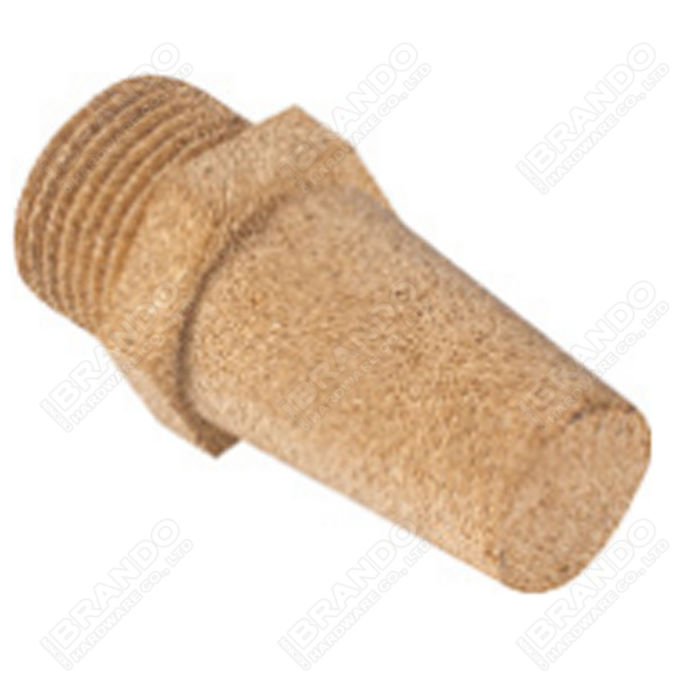

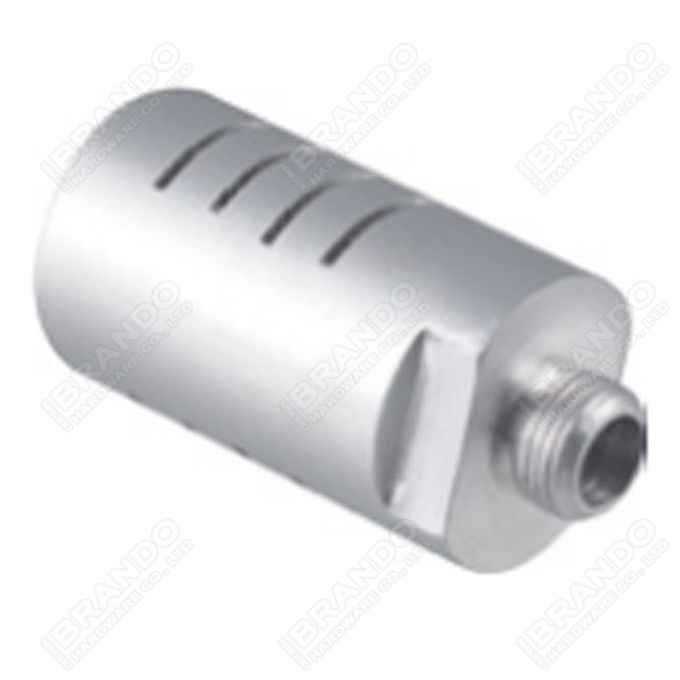

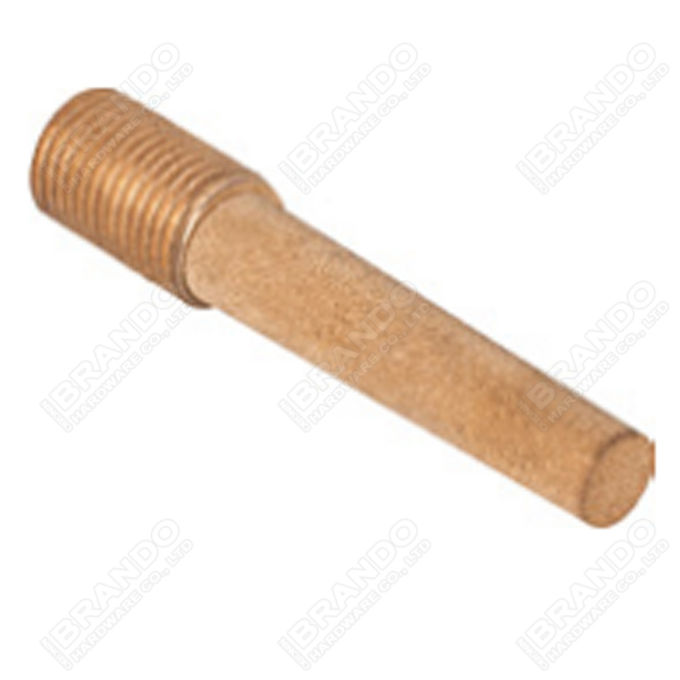

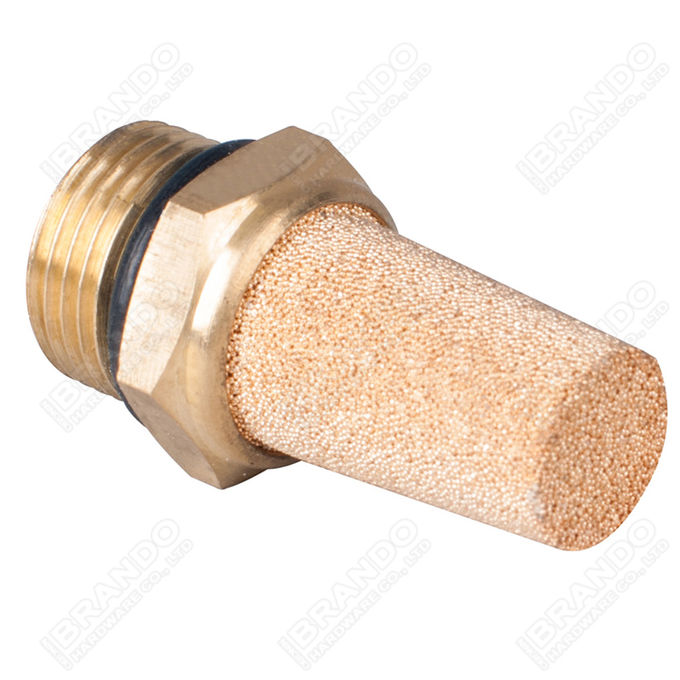

Muffler (Sintered) Muffler (Flat Head) LM Aluminous Muffler G Type Muffler
Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

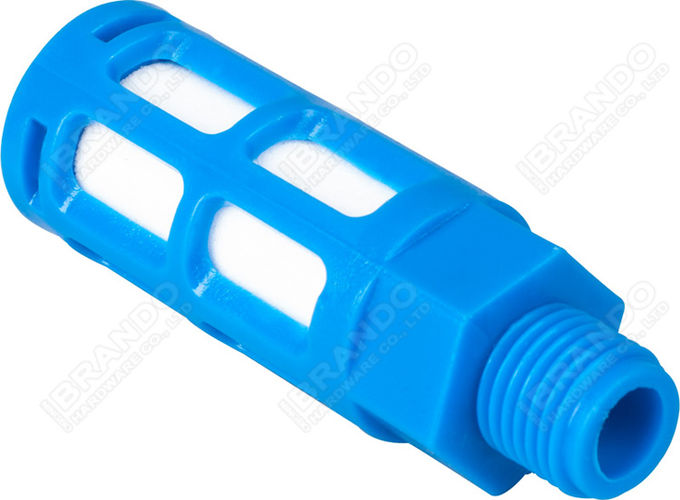

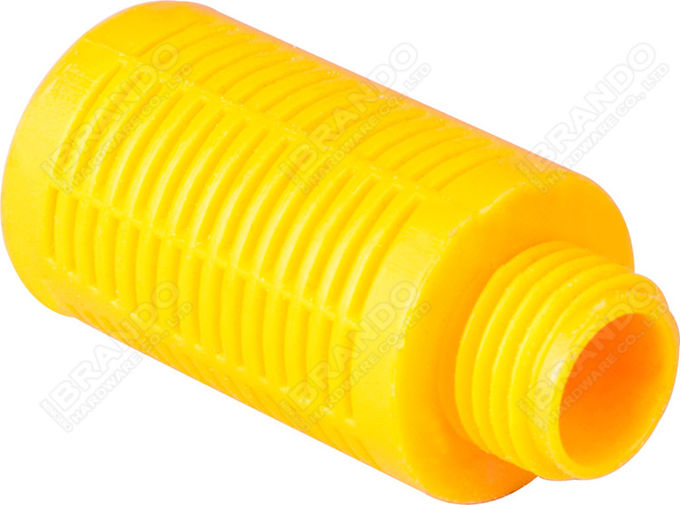

D Type Muffler E Type Muffler PSU Plastic Muffler SU Plastic Muffler

More Pneumatic Products for you to choose:

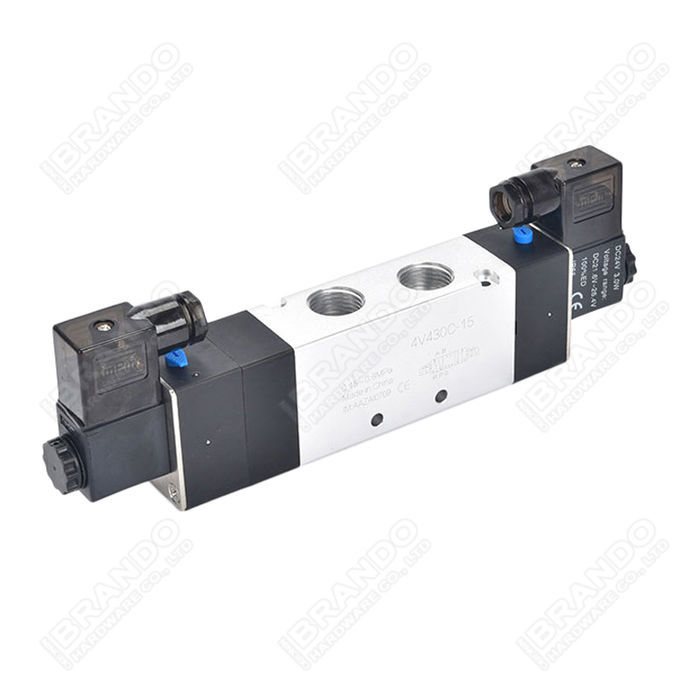

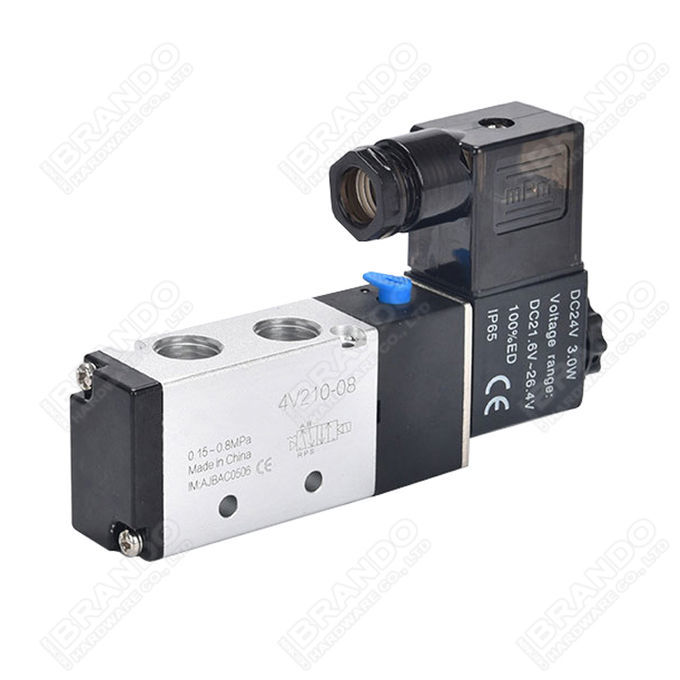

2/2 Way Pneumatic Valve 3/2 Way Pneumatic Valve 5/2 Way Pneumatic Valve 5/3 Way Pneumatic Valve
Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' Adjustable Pneumatic Silencer Throttle Valve 1/8'' 1/4'' 3/8'' 1/2'' 3/4''

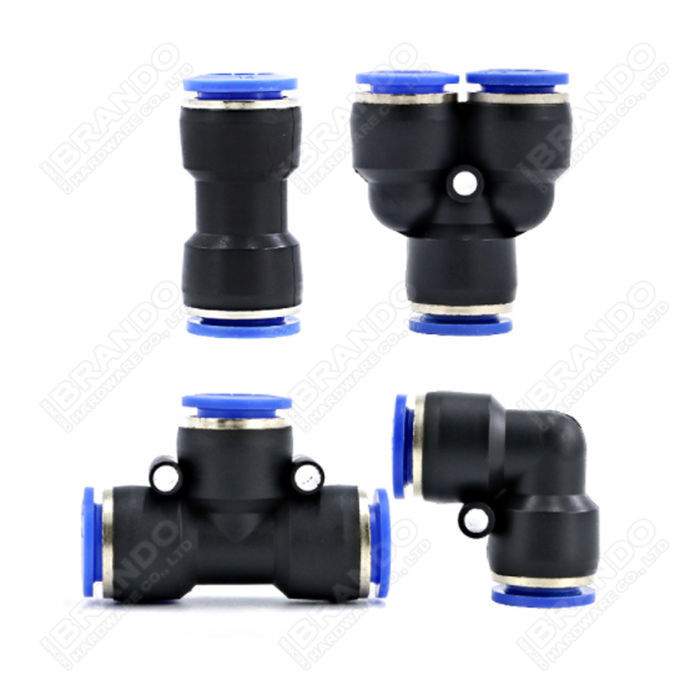

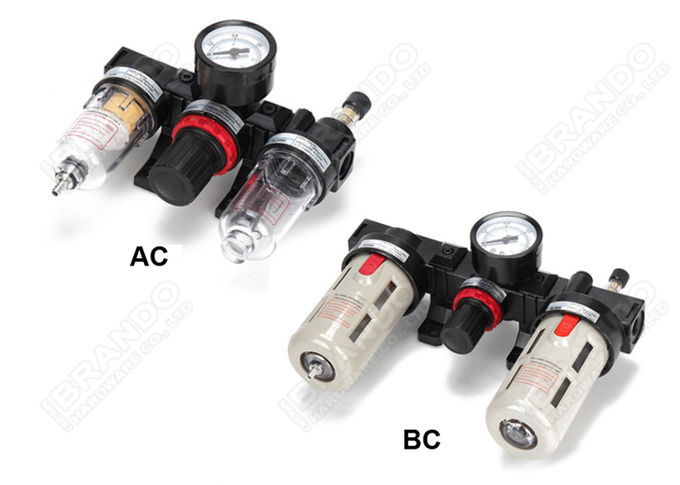

Namur Solenoid Valve Air Filter Regulator Lubricator Pneumatic Cylinder Silcencers And Fittings
