Type 5407 Oil Burner Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 230V 24V

Name: Type 5407 Oil Burner Stainless Steel Solenoid Valve 14 38 12 34 1 2 230V 24V
Brand: Brando
Price: 1 USD

Type 5407 Oil Burner Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 230V 24V Manufactures

Brand Name : Brando

Model Number : 5407

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Product Name : 5407 Solenoid Valve

Working Fluids : Vacuum, Neutral gases and Liquids

Port Size : 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' (G, NPT)

Orifice Size : 14mm to 50mm

Operation : Diaphragm Pilot Operated

Voltages : 24VDC, 110VAC, 120VAC, 220VAC, 230VAC

Operation Mode : 2/2 Way, Normally Closed

Body Material : Brass, Stainless Steel

Seal Material : NBR, VITON, EPDM

Pressure Range : 0.03 to 1.6MPa

Fluid Temperature : -10°C To +80 °C

Contact Now

Type 5407 Oil Burner Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 230VAC 24VDC

Technical Data of 5407 Solenoid Valve:

Model	5407
Fucntion	2 Way, Normally Closed
Operation	Diaphragm Pilot Operated
Thread Type	G, NPT, Rc
Working Medium	Vacuum, Neutral gases and Liquids
Fluid Viscosity	≤21mm²/s
Body Material	Brass, Stainless Steel
Seal Material	NBR, FKM, EPDM
Working Temperature	-10 to +80℃ (NBR), -10 to +110℃ (FKM), -20 to +120℃ (EPDM)
Insulation Class	IP65

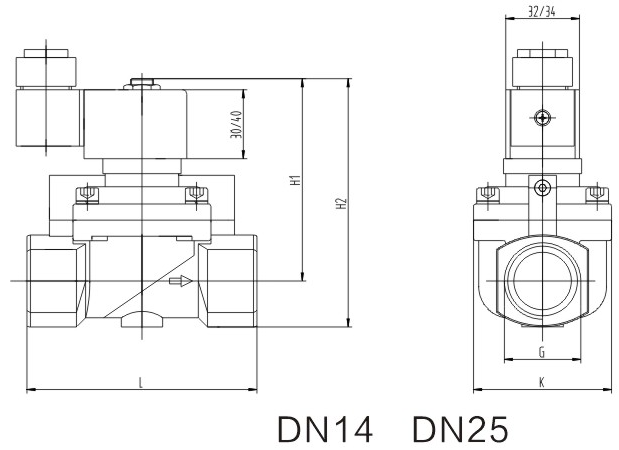

Main Dimension of 5407 Solenoid Valve:

Type 5407 Oil Burner Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 230V 24V

Brando Factory Production of Solenoid Valves:

More Solenoid Valves for you to choose:

Type 5407 Oil Burner Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 230V 24V

As a solenoid valve supplier, BRANDO supplys general purpose solenoid valve for general mediums control. Such as water, air, gas, oil. Offering the cost-effective solution for your projects. Available in brass, stainless steel and PVC material for your projects.

● Size Range: 1/4" to 2" (1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4")
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Pressure: 0-10 bar / 0.3-16 bar
● Temperature: -10℃~180℃
● Material: Brass, Stainless Steel and PVC
● Structure: Direct Acting / Diaphragm / Pilot Operated
● Function: Normally Closed / Normally Open
● Connection Type: Threaded, Flanged, Tri Clamp
● Tolerance: ±10%

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
