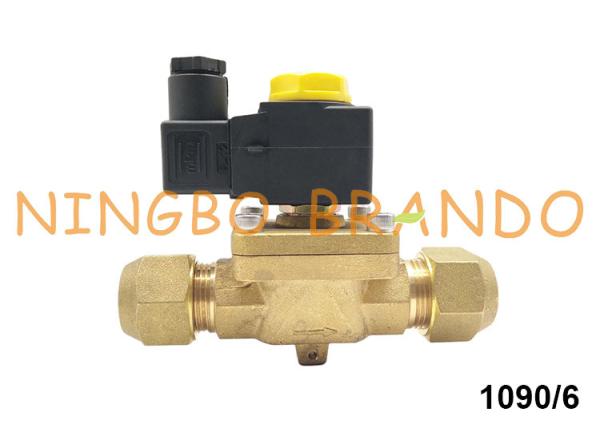

Castel Type SAE 3/4'' 1090/6 Membrane Refrigeration Solenoid Valves

Brand Name : Brando

Model Number : 1090/6

Certification : CE

Place of Origin : China

MOQ : 50 PCS

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Individual Boxes, Carton, Pallet

Port Size : 3/4''

Connection Type : SAE Flare

Function : 2 Way Normally Closed (NC)

Valve Operation : Diaphragm Pilot Operated

Voltages : AC110V, AC220V, AC230V, Ac240V, DC24V

Body Material : Brass

Ambient Temperature : -35 - 105 °C

Pressure Range : 0.5 - 25 Bar

Refrigerants : R22, R404A, R407A, R407C, R125, R134a, R152a

Application : Chiller, Freezer, Air Conditioner, Cooler, And So On

Contact Now

Castel Type SAE 3/4'' 1090/6 Membrane Refrigeration Solenoid Valves

Castel type solenoid valve is consist of Brass body, Stainless Steel plunger armature, coil and other parts.
The valve series 1034 ; 1038 ; 1040 ; 1048 ; 1049 ; 1050 ; 1058 ; 1059 ; 1078 (/11 , /13 , /M42) ; 1079 (/13 , /M42 , /17) ; 1098/9 ; 1099/11 are piston pilot-operated valves. Their operation depends not only on the magnetic field produced by the current flow into the coil, but also on a minimum inlet pressure, which is necessary to:
• open the piston and keep it lifted off the main opening
• close the piston and ensure the tightness on the main opening
Opening/closing of main valve seat is controlled by the piston, while opening/closing of pilot seat is controlled by the mobile plunger of the coil.

The role of refrigeration compressor:
Refrigeration compressors are the most important equipment in refrigeration units and are often referred to as mainframes in refrigeration units. The refrigerant vapor is increased from a low pressure to a high pressure and the continuous flow and delivery of the vapor is accomplished by means of the operation of the refrigeration compressor, that is, the function of the refrigeration compressor is:


1) The refrigerant vapor is taken from the evaporator to ensure a certain evaporation pressure in the evaporator.

2) Increase the pressure and compress the low-pressure low-temperature refrigerant vapor into a high-pressure high-temperature superheated vapor to create a condition for condensation at a higher temperature (such as a temperature of about 35 ° C in summer).

3) Transport and push the refrigerant to flow through the system to complete the refrigeration cycle.

Dimension:

Castel Type SAE 3/4'' 1090/6 Membrane Refrigeration Solenoid ValvesCastel Type SAE 3/4'' 1090/6 Membrane Refrigeration Solenoid ValvesCastel Type SAE 3/4'' 1090/6 Membrane Refrigeration Solenoid Valves

Model
Connection
Dimension
Coil Type
SAE (Flare), ODF (Solder)
H1
H2
L1
Q
HM2
HM3
1020/2
1/4'' SAE
75
62.5
58
-
1020/3
3/8'' SAE
65
1028/2
1/4'' ODF
32.5
125
1028/3
3/8'' ODF
62.5
125
1064/3
3/8'' SAE
82
69.5
68
1064/4
1/2'' SAE
72
1068/3
3/8'' ODF
111
1068/4
1/2'' ODF
127
1070/4
1/2'' ODF
91
75.0
100
45
1070/5
5/8'' ODF
106
1078/4
1/2'' ODF
127
1078/5
5/8'' ODF
173
1078/9
1 1/8'' ODF
115
96.0
250
80
1078/11
1 3/8'' ODF
172
138.0
278
68
1090/5
5/8'' SAE
106
78.0
120
57
1090/6
3/4'' SAE
106
78.0
124
57
1079/7
7/8'' ODF
91
75.0
190
45
1079/11
1 3/8'' ODF
115
96.0
292
80
1079/13
1 5/8'' ODF
172
138.0
278
68
1098/7
7/8'' ODF
106
78.0
180
57
1099/9
1 1/8'' ODF
106
78.0
216
57
1099/11
1 3/8'' ODF
157
127.0
291
68

Technical Data:

Operating Principles
Model Number
SAE Port
Seat size nominal Ø (mm)
Kv Factor
(m³/h)
PS
(bar)
TS(℃)
TA(℃)
min
max
min
max
Direct Acting
1020/2
1/4''
2, 5
0, 175
45
-35
+110
-35
+50
1020/3
3/8''
3
0, 23
Diaphragm Pilot Operated
1064/3
3/8''
6, 5
0, 80
45
-35
+105
-35
+50
1064/4
1/2''
1070/4
1/2''
12, 5
2, 20
1070/5
5/8''
2, 61
1090/5
5/8''
16, 5
3, 80
1090/6
3/4''
4, 80
Piston Pilot Operated
1034/3
3/8''
6, 5
1, 00
45
-35
+110
-35
+50
1034/4
1/2''
1040/4
1/2''
12, 5
2, 40
1040/5
5/8''
3, 00
1050/5
5/8''
16, 5
3, 80
1050/6
3/4''
4, 80

Installation:
Before connecting the valve to the pipe, it is advisable to make sure that the refrigerating system is clean. In fact, valves with P.T.F.E. gaskets, and particularly piston valves, are sensitive to dirt and debris. Furthermore, check that the flow direction in the pipe corresponds to the arrow stamped on the valve body. All the valves can be mounted in any position so long as the coil does not point downwards. The brazing of valves with solder connections should be carried out with care, using a low melting point filler material. It is not necessary to disassemble the valves before brazing, but it is important to avoid direct contact between the torch flame and the valve body, which could be damaged and compromise the proper functioning of
the valve.
Before connecting a valve to the electrical system, be sure that the line voltage and frequency correspond to the values marked on the coil.
