Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

Brand Name : Brando

Model Number : J50

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000 sets per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Price : Negotiation

Product Name : Pulse Valve Membrane

Membrane Material : NBR, FKM

Seat Material : Rubber, Nylon

1 Set : 1pc Big Diaphragm, 1pc Small Diaphragm, 2pcs Springs

Fitted Pulse Valve Port Size : 2''

Fitted Pulse Valve Model : JISI50, JISR50, JIFI50, JIFR50, JIHI50, JIHR50

Contact Now

Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

This diaphragm is used in Joil pulse valve JISI50, JISR50, JIFI50, JIFR50, JIHI50, JIHR50. Diaphragm material is NBR. Pulse Jet valves are also called as dust collector. They are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.

Ordering Code of Diaphragm For Joil Pulse Valve:

Brando Number
Type
Suitable valve
Material
J20
3/4''
JICI20, JICR20,
JISI20, JISR20
NBR
J25
1''
JICI25, JICR25,
JISI25, JISR25
J40 + J20
1 1/2''
JICI40, JICR40,
JISI40, JISR40,
JIFI40, JIFR40,
JIHI40, JIHR40
J50 + J20
2''
JISI50, JISR50,
JIFI50, JIFR50,
JIHI50, JIHR50
J65 + J20
2 1/2''
JISI65, JISR65,
JIFI65, JIFR65,
JIHI65, JIHR65
J80 + J20
3''
JISI80, JISR80,
JIHI80, JIHR80
J100 + J20
4''
JIHI100, JIHR100
Tips: FKM, EPDM are all available.

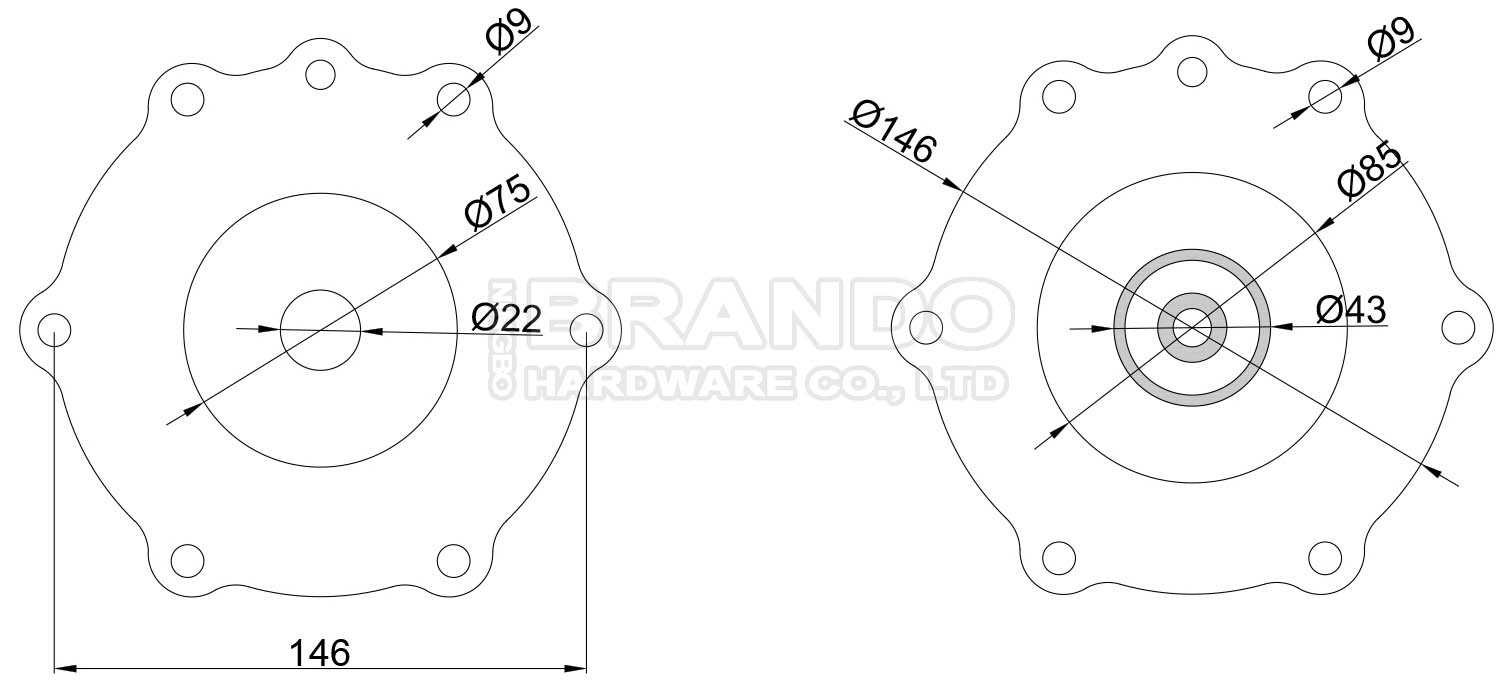

Main Dimension of 2'' Pulse Valve Diaphragm:

Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

Video of 2'' Pulse Valve Diaphragm:

Pictures of Solenoid Valve Membrane Production:

Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

More Products For Joil Pulse Valve for you to choose:

Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50 Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50 Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50 Membrane For Joil Dust Collector Pulse Solenoid Valve JISI50 JIFI50 JIHI50

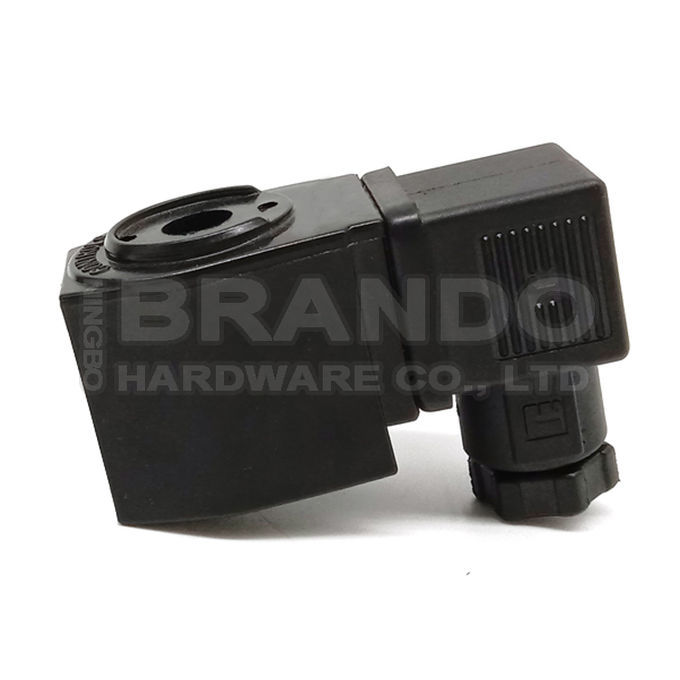

Valve Diaphragm Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
