3 Way NC Coffee Maker Steam Solenoid Valve Plunger Tube Assembly
Brando is a solenoid valve amrature assembly professional manufacturer and exporter in Ningbo, China. Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.
Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to function: 2/2 way NC, 2/2 way NO, 3/2 way NC, 3/2 way NO.
*According to connection: thread, flange

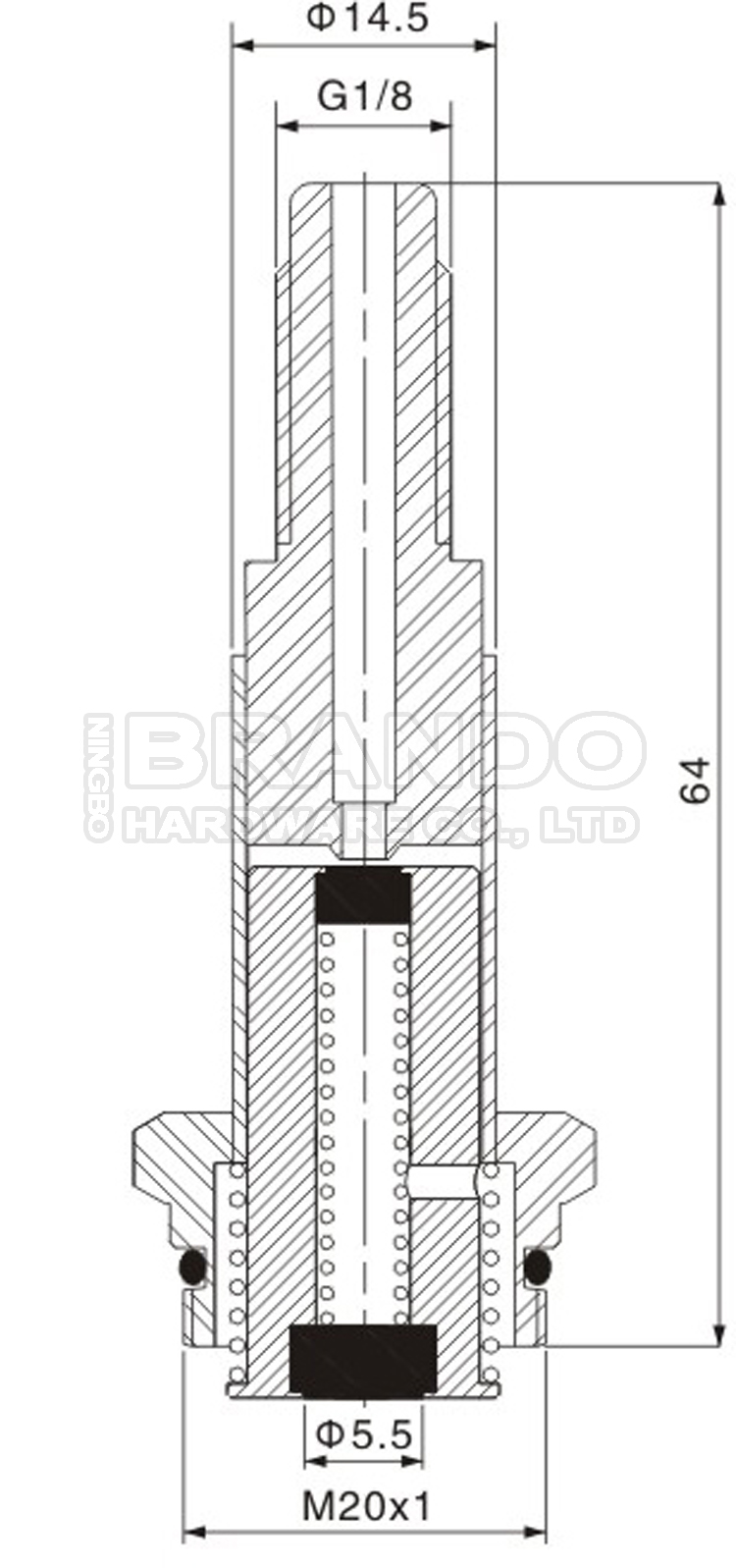

Main dimension of Solenoid Valve Armature Assembly:
Details of Solenoid Valve Armature Assembly:

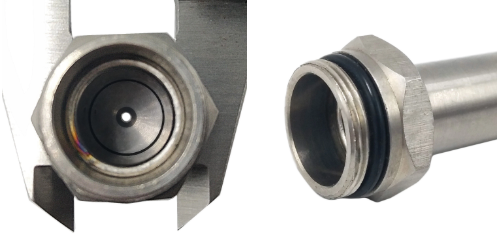

3/2 Way NC Thread Seat

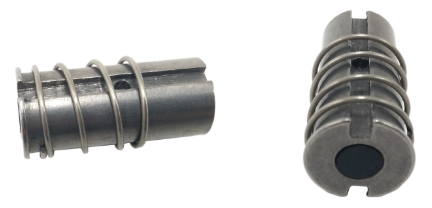

Plunger Slot NBR Seal
Technical data of Solenoid Valve Armature Assembly:
| Model Number | |
| Guide Tube Outer Diameter | |
| Installation Height for Coil Assembling | |
| Plunger Seal for Orifice Diameter | |
| Guide Tube Material | |
| Seal Material | NBR, HNBR, FKM, EPDM, Silicone, all available |
| Connection Type | |
| Voltage | All range of AC and DC available |
| Position and Way | |
| Non-working Status | |
| Application Examples | |
| Customized Service | Provided, welcome show us sample or drawing |
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
FAQ:
How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.
What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.
How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
