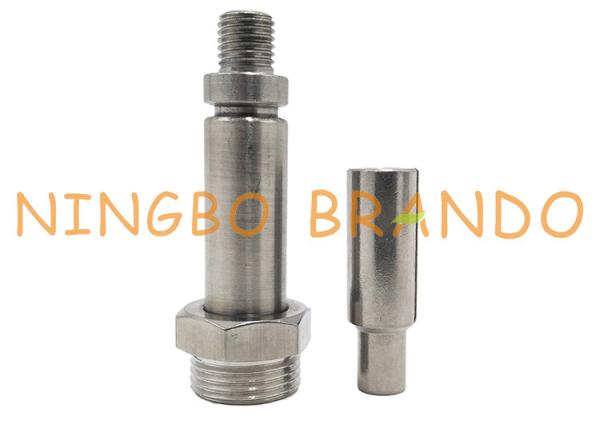

Stainless Steel 304 Core Tube Solenoid Valve Armature Assembly
The magnetic (solenoid) valve includes an electromagnet which comprises a coil arrangement and an armature driven by the coil arrangement. A control part is provided on the armature, which corresponds to at least one channel aperture to be controlled in a fluid channel, and which is shifted at the control movement of the armature relative to the at least one channel aperture. The armature is formed as a pivot anchor, whose switching movement is a pivotal movement , at which the control part is shifted orthogonally to the longitudinal axis of the coil arrangement.
How does an armature assembly work?
When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.
When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.
Technical data of Solenoid Valve Armature Assembly:
| Model Number | |
| Guide Tube Outer Diameter | |
| Installation Height for Coil Assembling | |
| Guide Tube Material | |
| Connection Type | |
| Voltage | All range of AC and DC available |
| Position and Way | |
| Non-working Status | |
| Customized Service | Provided, welcome show us sample or drawing |

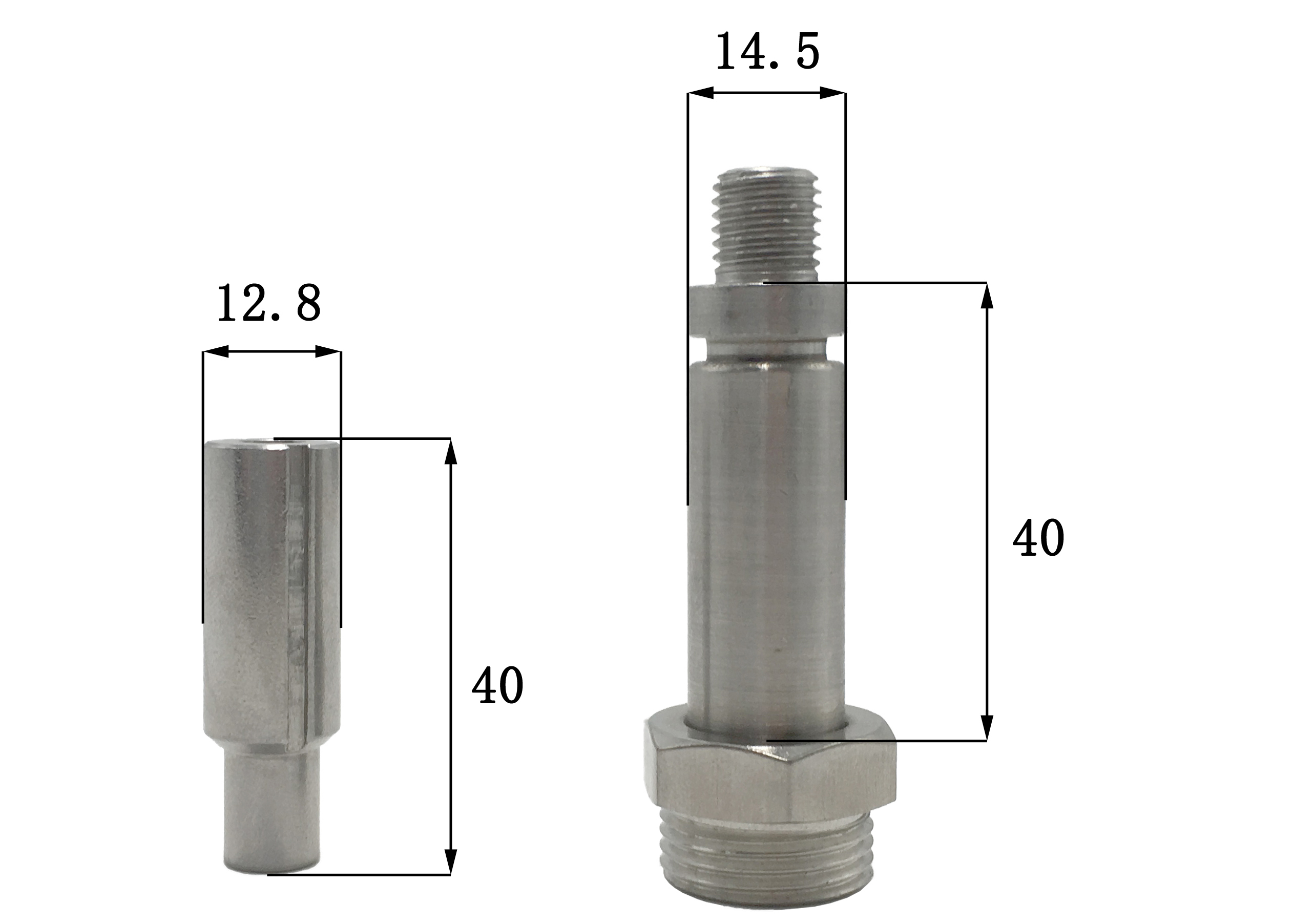

Main dimension of Solenoid Valve Armature Assembly:
Details of Solenoid Valve Armature Assembly:

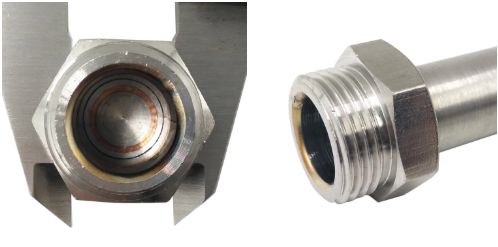

Copper Shading Ring M20 Thead Seat

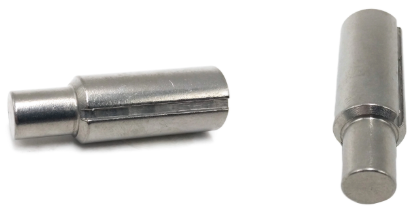

Plunger Slot Magnetic Plunger
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Features of Armature Assembly:
The main characteristics of the armature of solenoid valve can be reflected in the following aspects.
1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive
2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.
3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance
4. Sealing materials can be selected according to your different requirements
5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
