DB116 DB116/C Diaphragm For Mecair Pulse Jet Valve VNP216 VNP416
DB116 ( DB116/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Ordering Code of Diaphragm For Mecair Pulse Valve:
| | | | |
| | VNP206, VEM206, VNP306, VEM306 | | |
| | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408 | | |
| | VNP608, VEM608, VNP708, VEM708 | | |
| | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | | |
| | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | | |
| | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 | | |
| | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 | | |
| Tips: EPDM, FKM all available. |

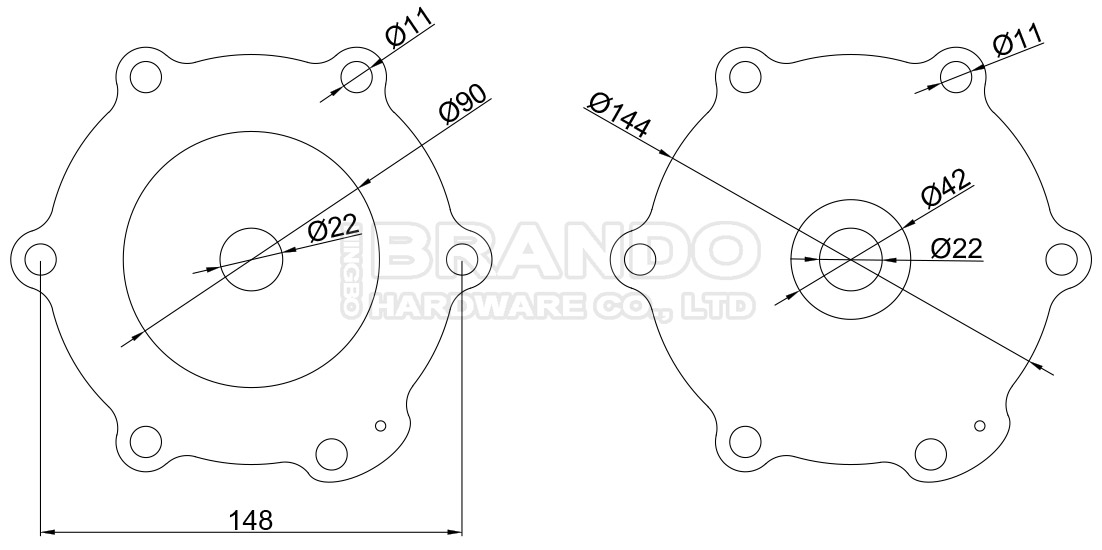

Dimension of DB116 Diaphragm:
Video of DB116 Diaphragm:
Pictures of Pulse Valve Membrane Production:
