2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse

Brand Name : Brando

Model Number : RCA50T

Certification : ISO, CE

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union, L/C

Supply Ability : 10000pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 2''

Pilot Size : 1/8'', 1/4''

Valve Series : T

Valve Structure : Right Angle, Threaded Port

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Contact Now

2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse

Diaphragm pulse valves are the most important components of a baghouse pulse jet cleaning system. On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.

Technical Data of T Series Pulse Jet Valves:

Model Number
RCA15T
RCA20T
RCA25T
RCA35T
RC45T
RCA50T
RCA62T
RCA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Pilot Size
1/8'', 1/4''
Working pressure
0.35 to 0.85 MPa
Diaphragm Material
NBR, FKM, EPDM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet), Threaded Port


Ordering Code of T Series Pulse Jet Valve:

2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse

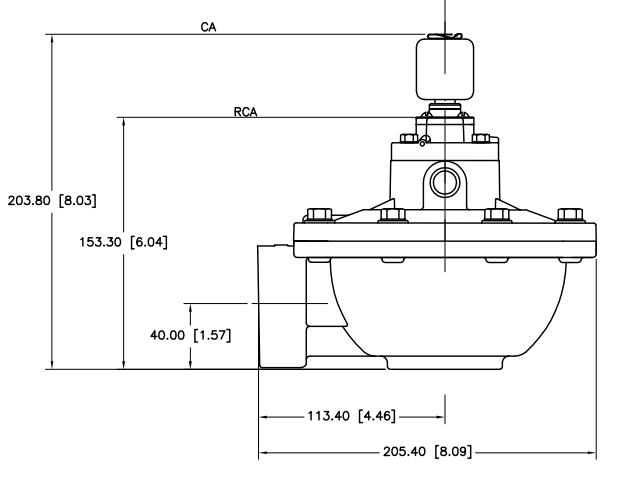

Main Dimension of RCA50T Pulse Jet Valve:

2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse

More Goyen Type Pulse Valves for you to choose:

2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse
T Series DD Series FS Series MM Series
2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse 2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
