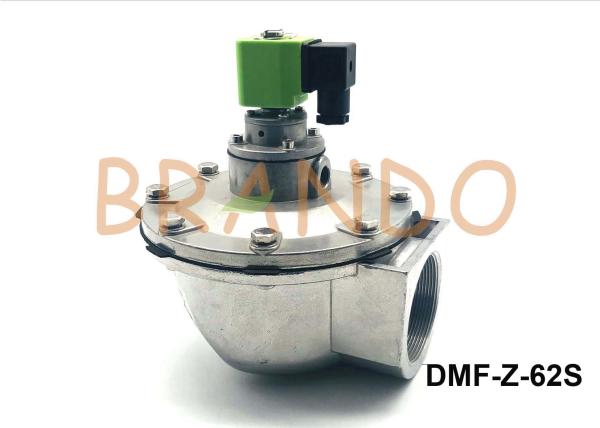

Alloy 2 1/2 Inch Pulse Valve /AC220V Bag Filter Dust Collector Valves DMF-Z-62S
DMF-Z-62S is a right angle pulse valve with double diaphragm, practical and reliable, more durable.The angle between the inlet and outlet is 90°, which is suitable for the installation and connection of air bag and dust collector blow pipe.of course, if you need other types of single diaphragm pulse valve, we can also provide.
Advantage
1.Small fluid resistance
2.Opening and closing is more labor-saving
3.Unlimited media flow
4.Simple shape,Wide range of applications
Specification
Working medium: clean air
Voltage: DC24v AC110v AC220v (optional)
Service life: 1 million times 2-3 years
Ambient Temperature:-5-50℃
Body:Aluminum ADC12
Spring:Stainless Steel
Screws:Stainless Steel
Order code

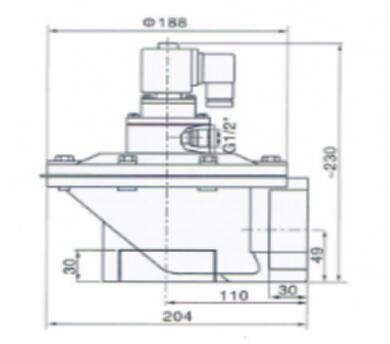

Dimension Drawing of DMF-Z-62S
| Number | Kv/Cv | Blowing Area | Port Size | Weight | Packing Dimension |
| DMF-Z-62S | 129.26/150.85 | 27-38 | G2 1/2" | 3.2 | 20.4x18.8x23cm |

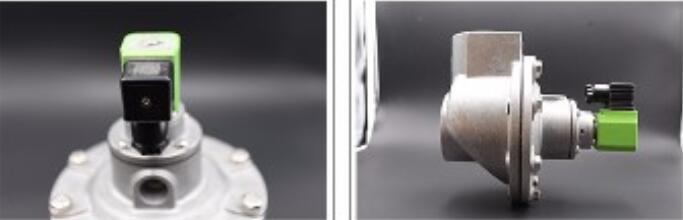

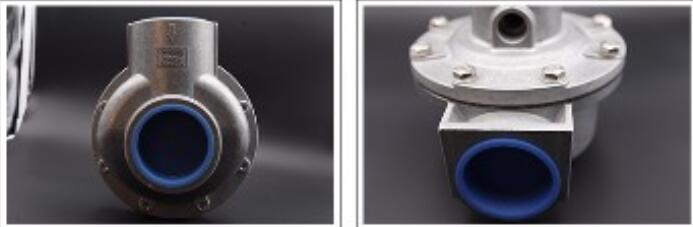

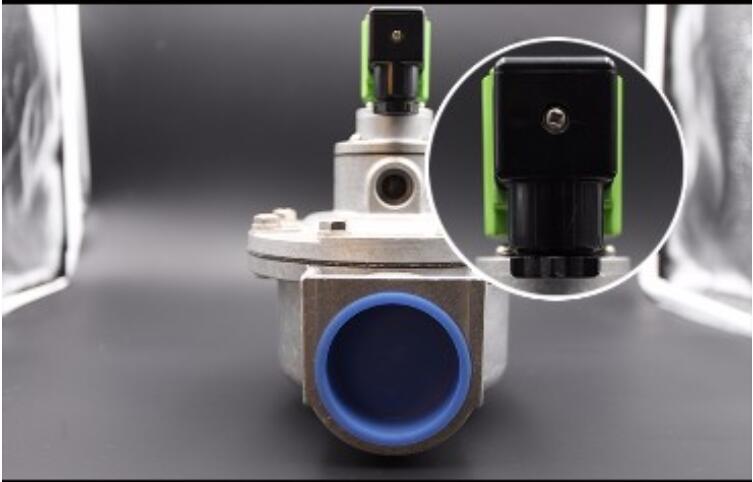

More Details
How to choose a suitable electromagnetic pulse valve
Pipe parameters: select the diameter specification and interface mode
1. Path size: the diameter of the pipe should be determined by the inner diameter or flow requirement of the pipe.
2. Interface mode: For internal thread, external thread, flange interface, etc., select the applicable specifications.
Fluid parameters: select material and temperature resistance
1. Corrosive fluids: chemical interactions between certain metals and specific corrosive liquids
2. High temperature fluids: Some fluids have a higher temperature than the melting point of the metal, causing changes in their physical form.
3. Fluid state: It mainly prevents the leakage of toxic and harmful gases and fluids. Just keep it airtight
4. Fluid viscosity: the viscosity of the fluid to the metal is different.
Pressure parameters: selection principle and structural variety
1. Nominal pressure: reference value related to the pressure resistance of piping system components
2. Working pressure: reference value of pressure resistance of piping system components in product working condition
please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
Wait your inquiry!
