1 1/4 Thread Port 35 Flow Rate Direct Drive Series Solenoid Control Valve 2W350-35
There are closed chambers in the water solenoid valve. There are through holes in different positions. Each hole leads to different oil pipes. The middle of the cavity is a valve. On both sides are two electromagnets. Which side of the magnet coil is energized? Which side is attracted to, by controlling the movement of the valve body to block or leak different oil drain holes, and the oil inlet hole is normally open, the hydraulic oil will enter different oil drain pipes, and then pushed by the pressure of the oil The piston of the cylinder, the piston drives the piston rod, and the piston rod drives the mechanical device to move. This controls the mechanical motion by controlling the current of the electromagnet.
| Specs and Descriptions | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Port Size | G3/8 | G1/2 | G3/4 | G1 | G1-1/4 | G1-1/2 | G2 |
| CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Type | Normal Closed |
| Material of Body | Brass |
| Motion Pattern | Direct Drive |
| Working Temperature | -5~80℃ |
| Working Pressure | Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa |
| Material of Seal | NBR |
| Voltage and Way,Position | As your requirement |
| Liquid | Water Oil Gas Air |
| Coil | Conventional(Waterproof) |

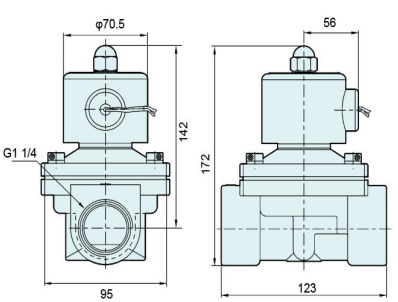

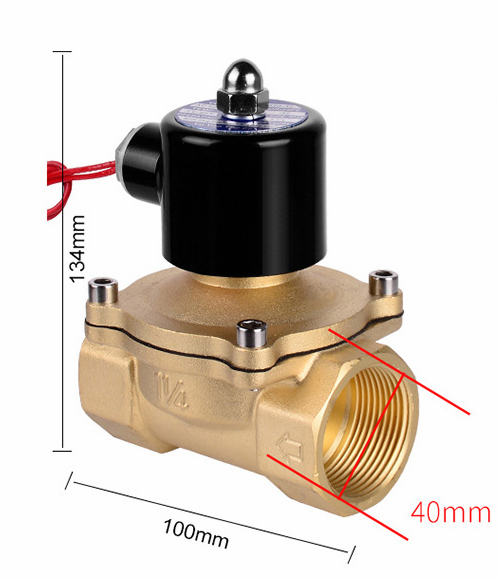

Drawings of 2W350-35
Using Notice
1.The solenoid valve after long-term deactivation should be used after clearing the condensate; when the parts are removed and washed, the parts should be placed in order and
then restored.
2. Please refer to the user manual of the product before installation to see whether it meets your requirements.
3. The pipeline should be cleaned before use, and the filter should be installed if the medium is not clean to prevent impurities from interfering with the normal work of the
solenoid valve.
4. The solenoid valve generally works in one direction and cannot be installed in reverse. The arrow on the valve is the movement direction of pipeline fluid and must be
consistent.
Characteristics
Expanded the field of use with a direct-acting diaphragm structure without pressure start The flat diaphragm structure is reliable in opening and closing and enhances the service life of the product. The use of plastic coils enhances the safe use of this product in a wide range of environments.
Working principles
This valve is the pilot type solenoid valve of the second opening valve. Its structure is mainly composed of the pilot valve and the main valve. The main valve adopts the
rubber sealing structure. When in normal position, the guide valve is sealed with movable iron core, the pressure in the valve chamber is balanced, and the main valve is
closed. When the coil is energized, electromagnetic force is generated to absorb the moving iron core, and the dielectric self-guiding valve mouth in the main valve cavity is
discharged, resulting in pressure difference. The diaphragm or valve cup is quickly lifted, and the main valve mouth is opened, and the valve shows a path. When the coil
power off, the magnetic field disappeared, the resetting of the active iron core, closed valve mouth, valve and the main valve chamber pressure balance, the valve was closed
state.
