3/4'' SCG353A043 ASCO Type Solenoid Pulse Jet Valve For Dust Collector

Name: 34 SCG353A043 ASCO Type Solenoid Pulse Jet Valve For Dust Collector
Brand: Brando
Price: 1 USD

Brand Name : Brando

Model Number : SCG353A043

Certification : CE

Place of Origin : NINGBO CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union, L/C

Supply Ability : 10000pcs per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 3/4''

Valve Structure : Right Angle, Threaded Port

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : TPE, NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 24VDC, 110VAC, 220VAC

Contact Now

3/4'' SCG353A043 ASCO Type Solenoid Pulse Jet Valve For Dust Collector

Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Brando supply pulse jet valve with different structures:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical Data of Threaded Pulse Jet Valves:

Model	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''
Voltages	24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number	1		2
Working Pressure Range	0.35 to 0.85 MPa
Diaphragm Material	TPE, NBR, FKM
Fluids	Air
Valve Structure	Right Angle, Threaded Port

Main Dimension of SCG353A043 Pulse Jet Valve:

3/4'' SCG353A043 ASCO Type Solenoid Pulse Jet Valve For Dust Collector

Video of SCG353A043 Pulse Jet Valve:

More ASCO Type Pulse Valves for you to choose:

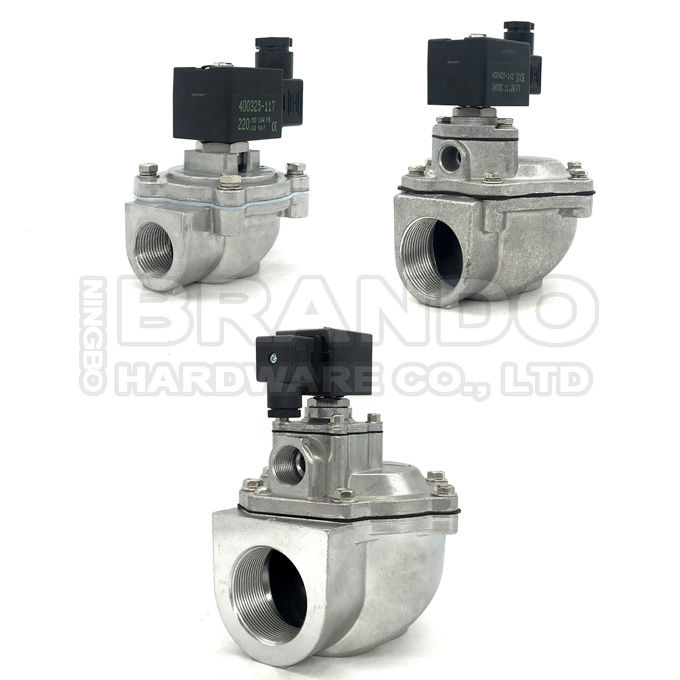

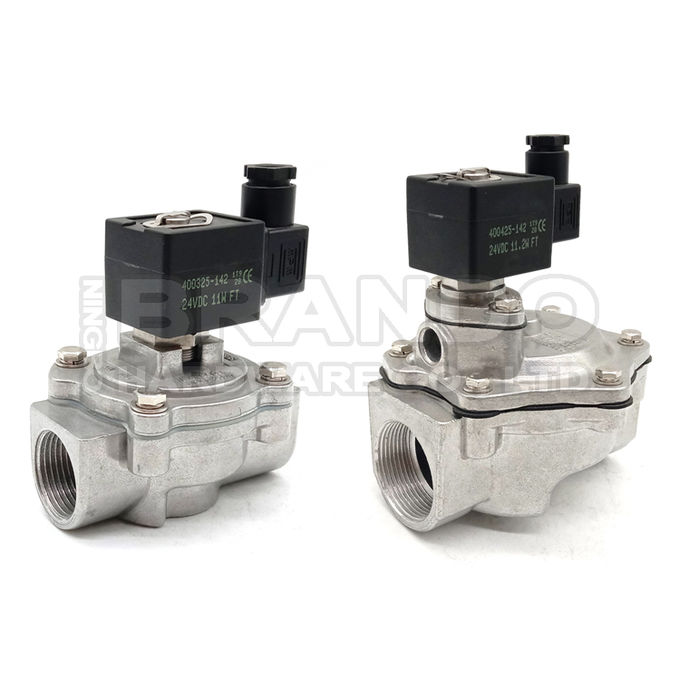

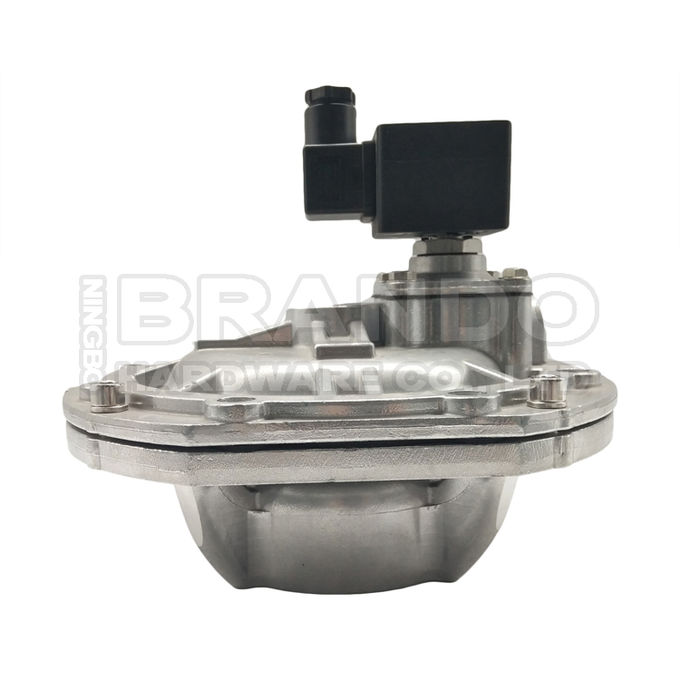

Threaded Type	Remote Pilot Type	Straight Through Type	Submerged Type

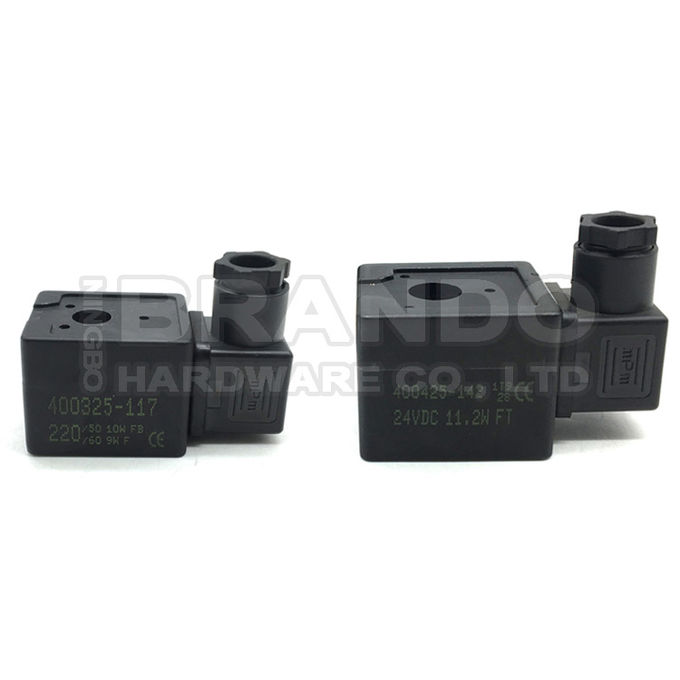

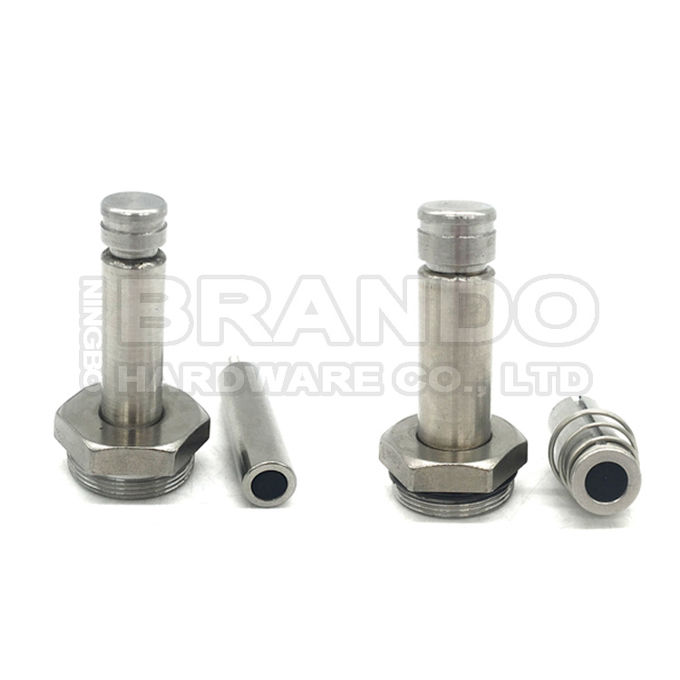

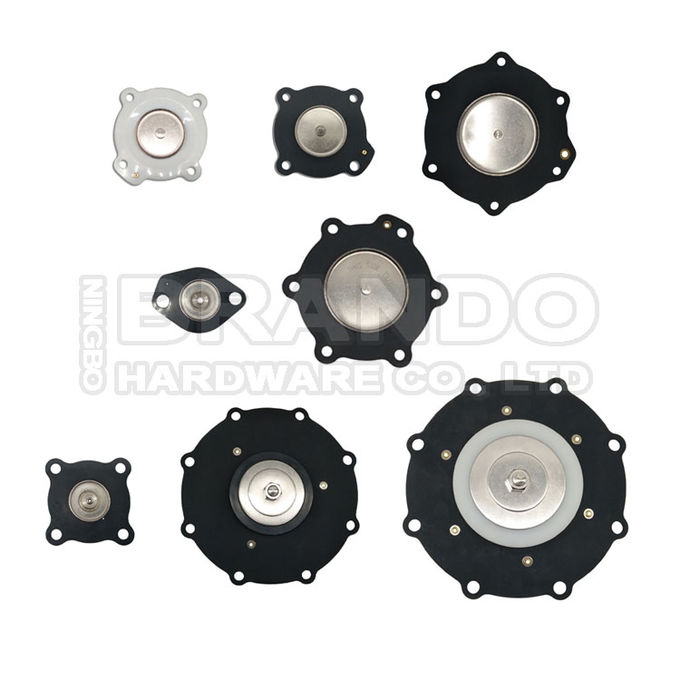

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
