1.5'' SCG353A047 ASCO Type Pulse Jet Solenoid Valve For Bag Filter
Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
The fast opening and closing of the valve is of great importance for effective cleaning of filters and economical consumption of compressed air. This is made possible by keeping the weight of the moving parts small and therefore having a small inertia. These valves have very high kV values.
Technical Data of Threaded Pulse Jet Valves:
| | | | | | |
| Port Size | | | | | |
| Voltages | 24VDC, 24VAC, 110VAC, 220VAC |
| Diaphragm Number | | |
| Working Pressure Range | |
| Diaphragm Material | |
| Fluids | |
| Valve Structure | Right Angle, Threaded Port |

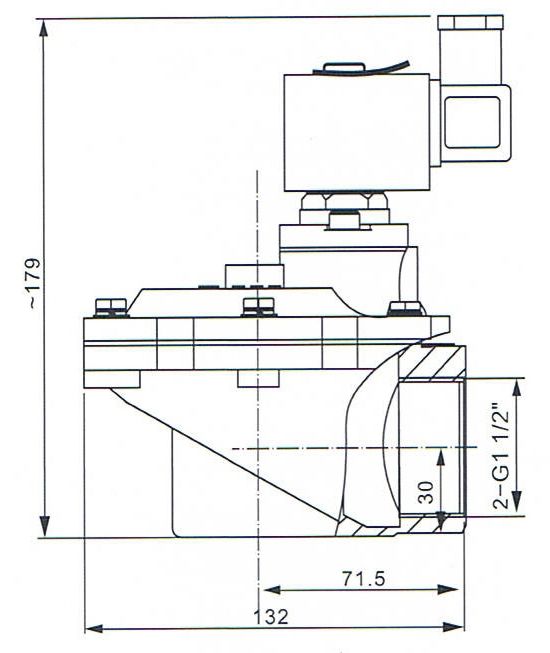

Main Dimension of SCG353A047 Pulse Jet Valve:
Video of SCG353A047 Pulse Jet Valve:
More ASCO Type Pulse Valves for you to choose:
 |  |  |  |
| Threaded Type | Remote Pilot Type | Straight Through Type | Submerged Type |
 |  |  |  |
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
