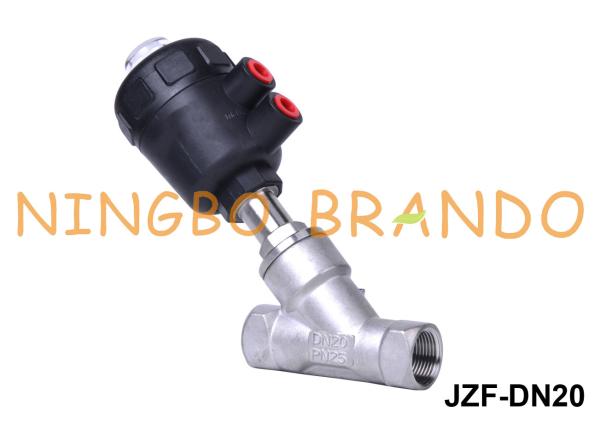

3/4'' 2/2 Way Pneumatic Angle Seat Valve Stainless Steel

Brand Name : Brando

Model Number : JZF-DN20

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : Negotiation

Packaging Details : Inner boxes, Carton, Pallet

Port Size : 3/4''

Port Connections : Threaded

Orifice Size : 20mm

Working Fluids : Netral and Aggressive Liquid, Gas

Body Material : SS304, SS316

Seal Material : PTFE

Working Pressure Range : 0.4 to 0.8 MPa

Max. Working Pressure Range : 1.6 MPa

Contact Now

3/4'' 2/2 Way Pneumatic Angle Seat Valve Stainless Steel

The pneumatic angle seat valve is an air operated linear process control valve that has an angled body to provide the maximum possible flow rate with minimal pressure loss across the piston valve when open. A piston actuator is connected to the valve plug and is available with either double acting or single acting function.

The piston valve bodies are typically available in bronze or stainless steel with various port sizes, pneumatic piston actuator sizes and materials plus a variety of extra facilities such as a stroke inhibitor, electrical position feedback and even fully modulating angle seat valves.

Main Dimension of Angle Seat Valve:

Stainless Steel Body With Plastic Actuator

3/4'' 2/2 Way Pneumatic Angle Seat Valve Stainless Steel

Nominal Diameter
Actuator
(mm)
D
A
B
C
φE
F
G
H
DN15
50
1/2''
85
170
16
64
44
112
140
DN20
50
3/4''
95
180
16
64
44
112
145
DN25
63
1''
105
215
19
80
52
120
175
DN32
63
1 1/4''
117
220
21
80
52
120
185
DN40
63
1 1/2''
129
230
21
80
52
120
185
DN50
80
2''
149
265
25
100
60
120
220
DN65
100
2 1/2''
155
252
26
126
73
140
300
DN80
100
3''
220
368
30
126
73
140
340
DN100
125
4''
235
420
35
168
97
164
395


Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open

Angle Seat Valve Disassembly Display:
