Stainless Steel Solenoid Valve 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 NBR EPDM FKM

Brand Name : BRANDO

Model Number : 6213

Certification : CE, ISO

Place of Origin : China, Ningbo

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1/4'', 3/8'', 1/2'', 3/4'', 1''

Orifice Size : 10mm, 13mm, 20mm, 25mm

Function : 2 Way, Normally Closed

Operation : Servo-Assisted Diaphragm

Body Material : Stainless Steel

Diaphragm Material : NBR, EPDM, FKM

Pressure Range : 0.3 to 16 bar

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

Stainless Steel Solenoid Valve 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 NBR EPDM FKM

6213 is a servo-assisted diaphragm solenoid valve. The diaphragm spring coupling supports the opening process of the valve. In its standard version, the valve is suitable for use in liquids. A minimum differential pressure is required for complete opening. Various diaphragm material combinations are available depending on the application. The range of housings includes brass and stainless steel. The coils are moulded with polyamide or with chemically resistant epoxy.

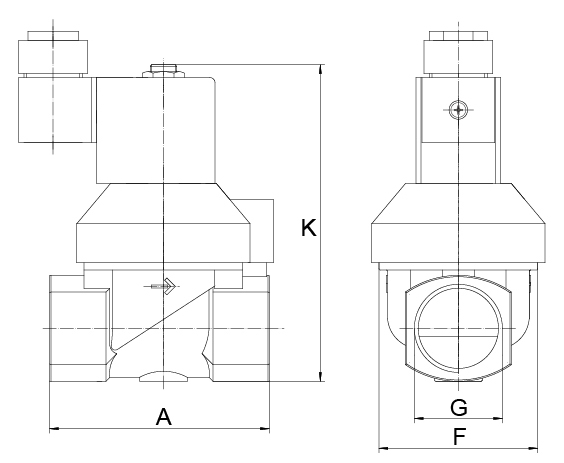

Technical Data of 6213 Solenoid Valve:

Stainless Steel Solenoid Valve 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 NBR EPDM FKM

Model
Orifice Size
(mm)
Port Size
(Inch)
Working Pressure
(bar)
Medium Temperature
(℃)
Body Material
Dimension
A
F
K
6213
10
1/4''
0.3 to 10
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
Brass
Stainless Steel
50
32
90/85
10
3/8''
50
32
90/85
13
3/8''
65
41
91
10
1/2''
50/55
32
90
13
1/2''
58/65
41
91
13
3/4''
58/69
41
94
20
3/4''
83
60
115
20
1''
83
60
115
25
1''
83
60
115


BRANDO Solenoid Valve Production Video:

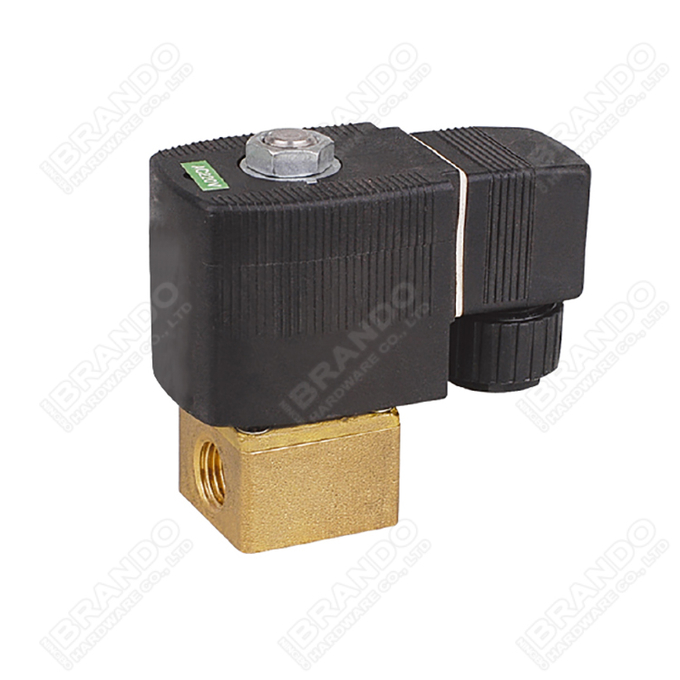

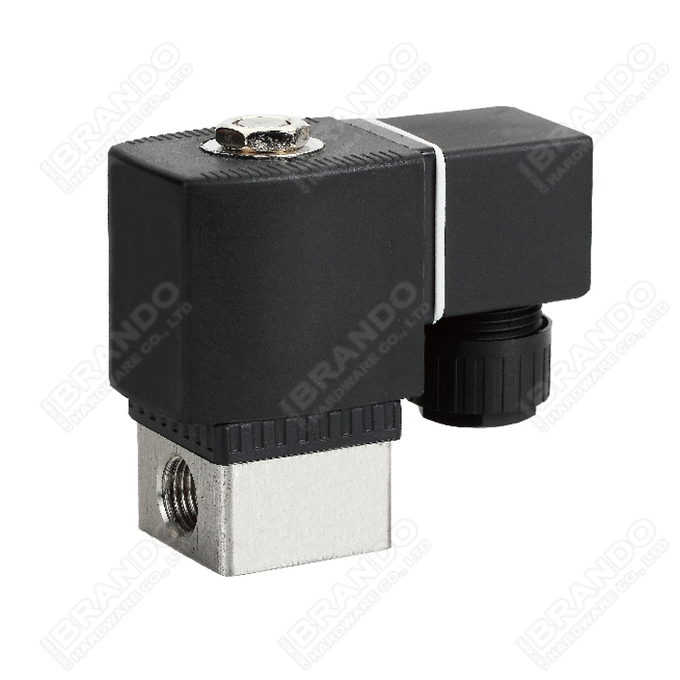

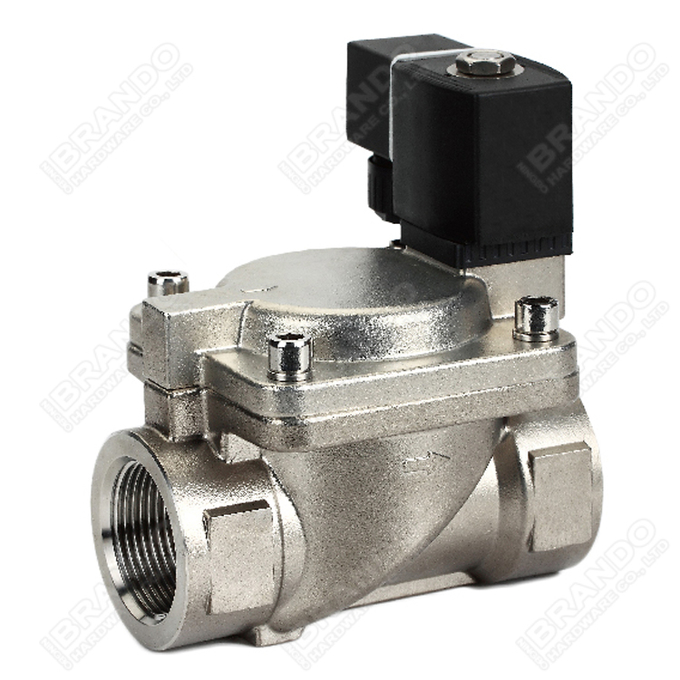

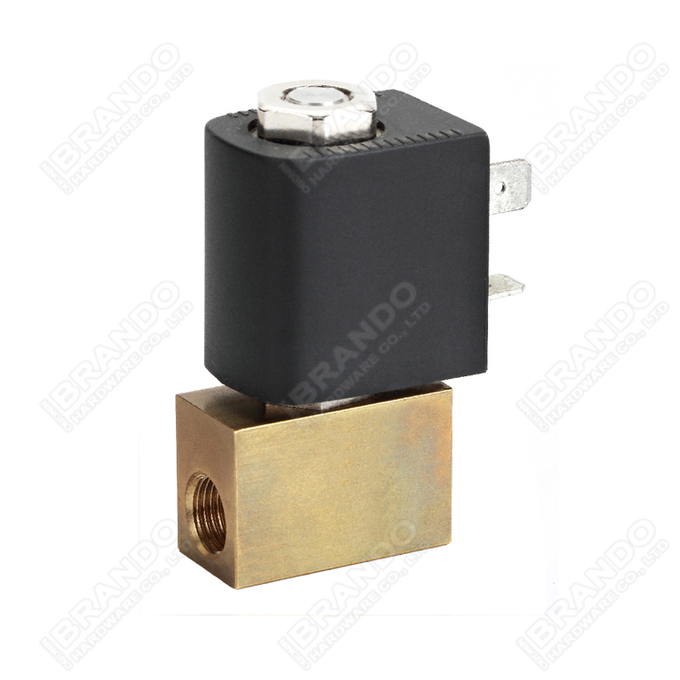

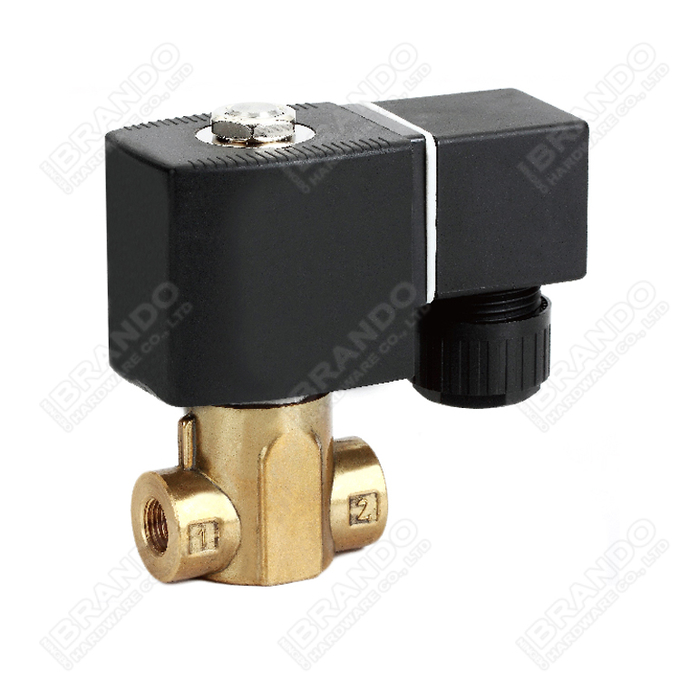

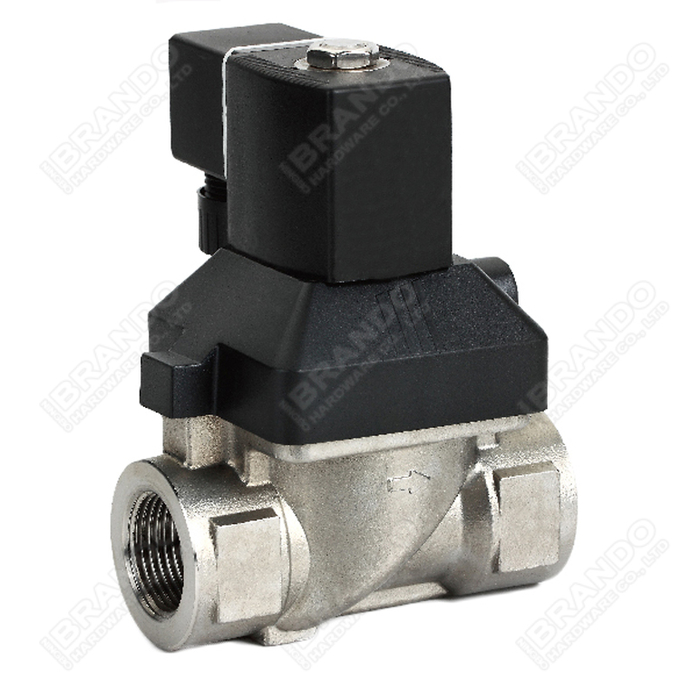

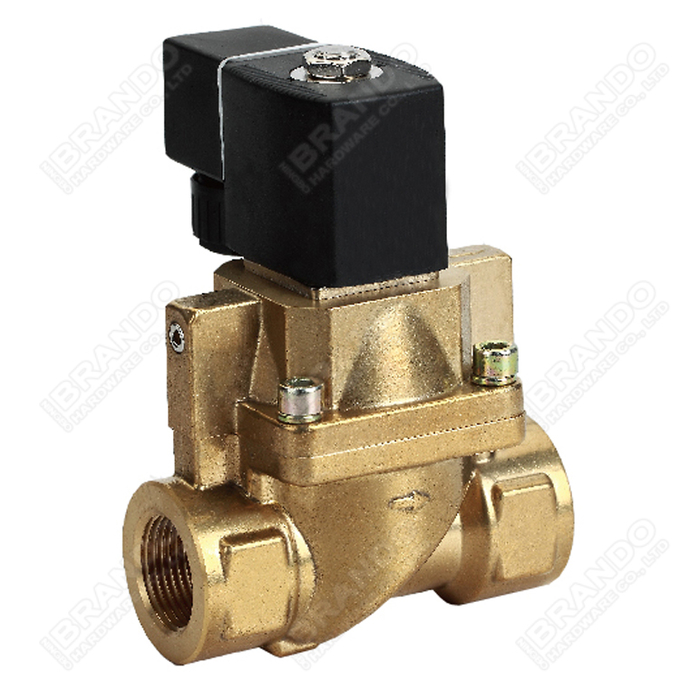

More Solenoid Valves for you to choose:
