4V320-10 Airtac Type 3/8'' Pneumatic Solenoid Valve 5/2 Way 24V
A 5/2 way pneumatic solenoid valve has five ports and two states. They are used for instance to control double acting cylinders. 5/2 way pneumatic solenoid valves can be mono-stable (1 solenoid, spring return) or bi-stable (solenoids). Valves with a Namur configuration have a special flange for direct mounting on a pneumatic actuator. Pneumatic solenoid valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools.
Brando offers a variety of pneumatic directional control solenoid valves. Pneumatic air solenoid valves are available in two, three and four ways with AC and DC voltages and are suitable for industrial applications. 4V series solenoid valve is mainly used for pneumatic actuator; 4V series has single control and dual control. Thread sizes range from M5 to 1/2 ". 4V series Namur valves are known for their superior quality and stable functionality. Ideal for a variety of pneumatic actuator applications including petrochemicals, pulp and paper, filling equipment, food Processing and water treatment.
Technical Data of 4V300 Series Solenoid Valve:
| | | | 4V330C-08 4V330E-08 4V330P-08 | | | 4V330C-10 4V330E-10 4V330P-10 |
| | Air (to be filtered by 40 μm filter element) |
| | internal pilot or external pilot |
| | | in=out=3/8'', exhaust=1/4'' |
| Orifice Size | 4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25) |
| Vlave Type | | 5 way 3 postion | | |
| Operating Pressure | 0.15 to 0.8 MPa (21 to 114 psi) |
| Proof Pressure | |
| Temperature | |
| Body Material | |
| Max Frequency | | | | |
| Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |

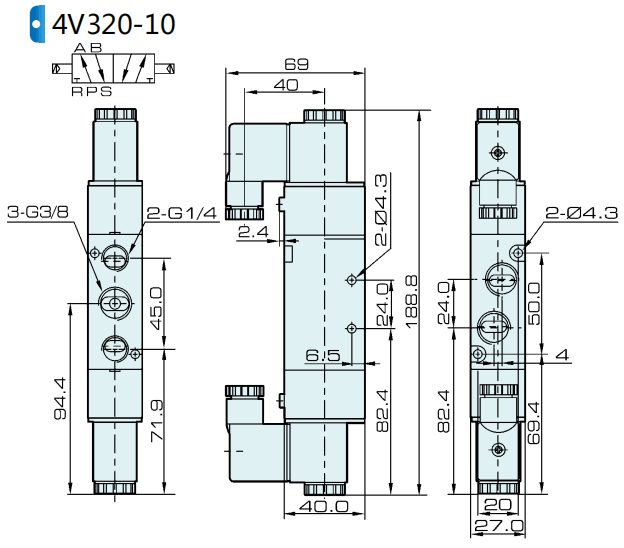

Main Dimension of 4V320-10 Solenoid Valve:
Video of 4V320-10 Solenoid Valve:
Production Video of Pneumatic Valve:
