M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

Brand Name : BRANDO

Model Number : M75

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100000 Sets Per Month

Delivery Time : 4 To 7 Working Days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Pulse Valve Diaphragm

1 Set : 1PC M75 Diaphragm, 1PC M25 Diaphragm, 2PCS Springs

Diaphragm Material : NBR, Viton

Fitted Pulse Valve Model : FP65, FM65, SQP75, SQM75, SQP100, SQM100

Packaging : Plastic bag, Box, Carton, Pallet

Port Size : 2.5", 3"

Contact Now

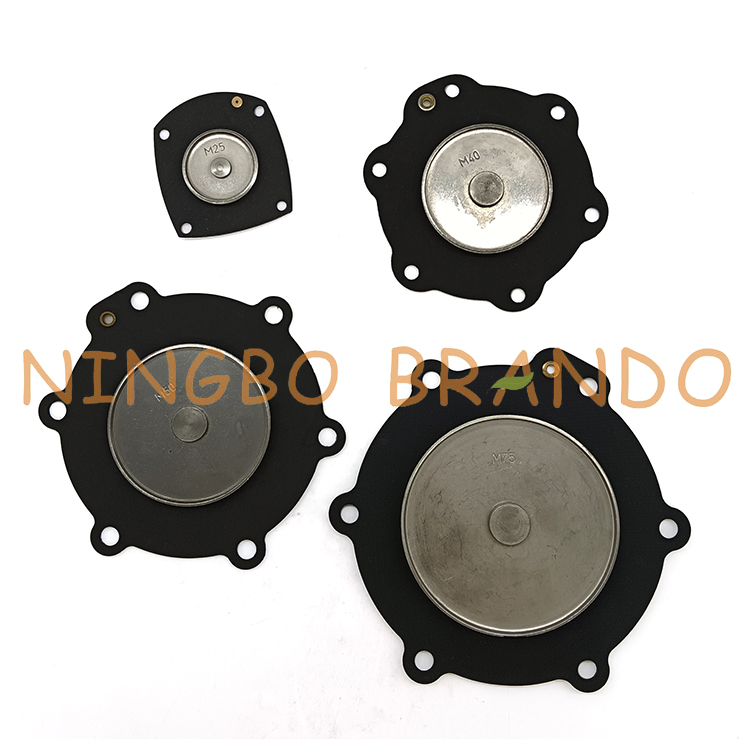

M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

The M75 & M25 diaphragm for Turbo pulse jet valve FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN, the opening and closing part is a Diaphragm made of soft material, which separates the body cavity from the cover cavity. Due to the limitations of body lining technology and diaphragm manufacturing process, larger body lining and larger diaphragm manufacturing process are difficult, so diaphragm valve should not be used for larger pipe diameter.

Ordering Code of Diaphragm For Turbo Pulse Valve:

Ordering code
Fitted valve code
Valve port size
Material
M25
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25
3/4'', 1''
NBR
M40 + M25
FP40, FM40, DP40, DM40, EP40, EM40
1 1/2''
NBR
M50 + M25
FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65
2'', 2 1/2''
NBR
M75 + M25
FP65, FM65, SQP75, SQM75, SQP100, SQM100
2 1/2'', 3''
NBR
Tips: EPDM, FKM all available.

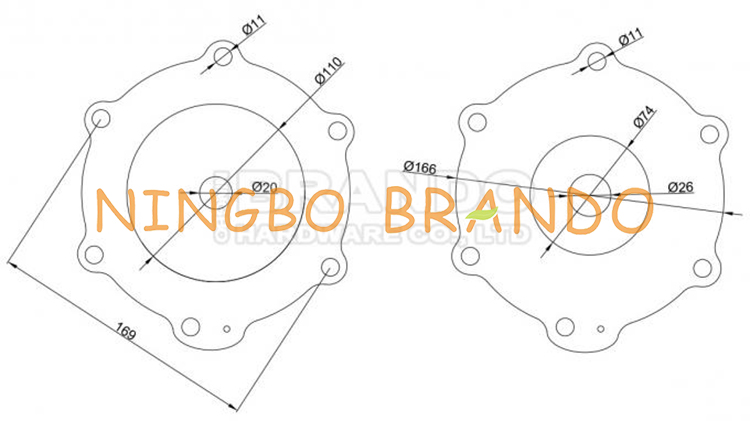

Overall Dimension of M75 Membrane:

M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

Video of Turbo M75 Diaphragm:

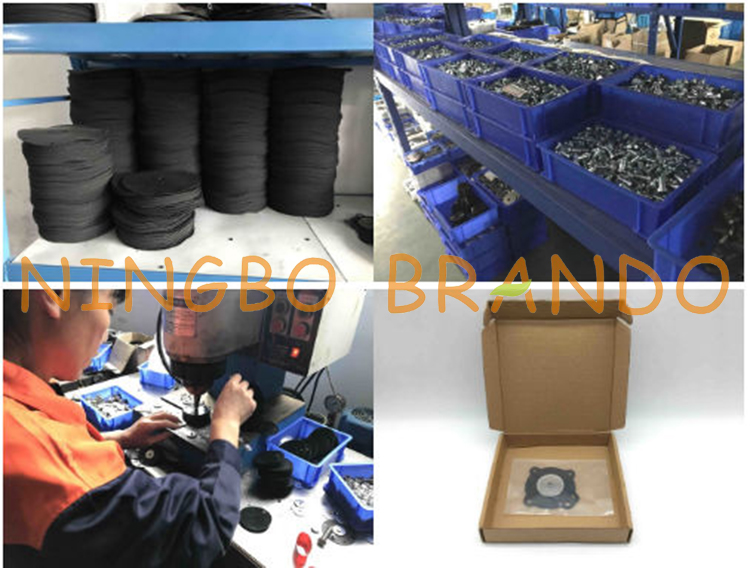

Pictures of Pulse Valve Membrane Production:

M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

More Turbo Type Products for you to choose:

M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

 M75 M25 NBR Diaphragm Membrane For 2.5'' 3'' Pulse Jet Valve Spare Part

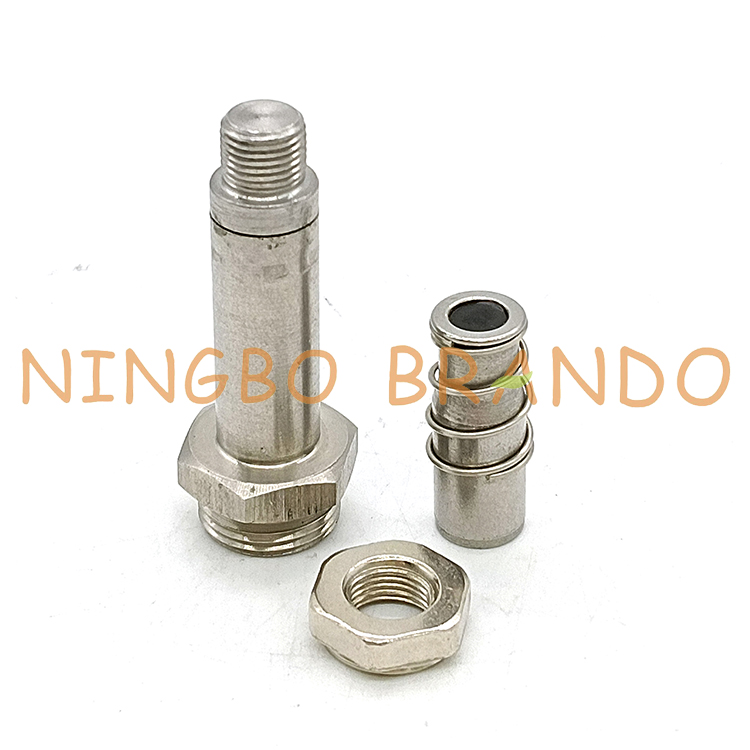

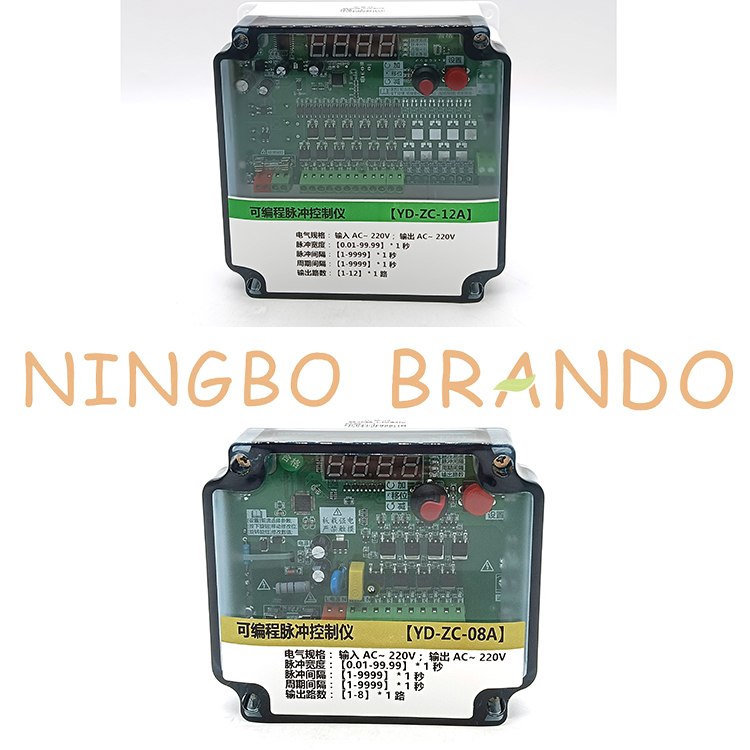

Solenoid Coil Solenoid Armature Pulse Controller Valve Diaphragm

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
