Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series

Brand Name : Brando

Model Number : CA76MM

Certification : CE, ISO

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 3 Inch

Valve Series : MM Series

Valve Structure : Manifold Mount

Diaphragm Material : Nirtile, Viton

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltages : DC24V, AC110V, AC220V

Contact Now

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series

The Goyen Type CA76MM is a manifold mount pulse jet valve, these diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve.

Specification of MM Series Pulse Jet Valves:

Model No
CA25MM
CA40MM
CA50MM
CA62MM
CA76MM
CA102MM
Nominal Size
25
40
50
62
76
102
Port Size
mm
25
40
50
62
76
102
inch
1''
1 1/2''
2''
2 1/2''
3''
3 1/2''
4''
Pressure Range
0.35 to 0.85 MPa
Temp.
Range
NBR
-40 to 82 ℃
FKM
-29 to 232 ℃

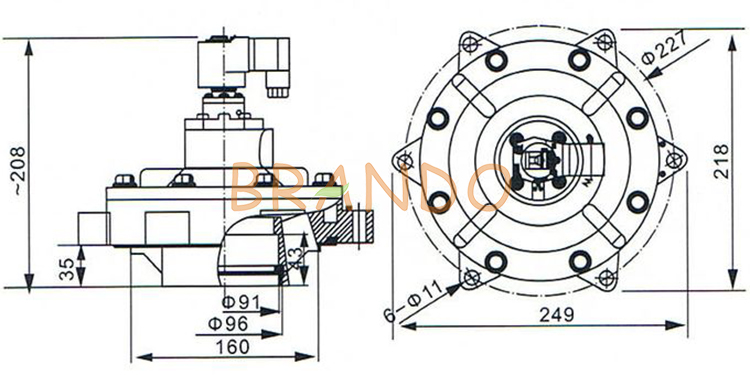

Main Dimension of CA76MM Dust Colletor Pulse Valve:

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series

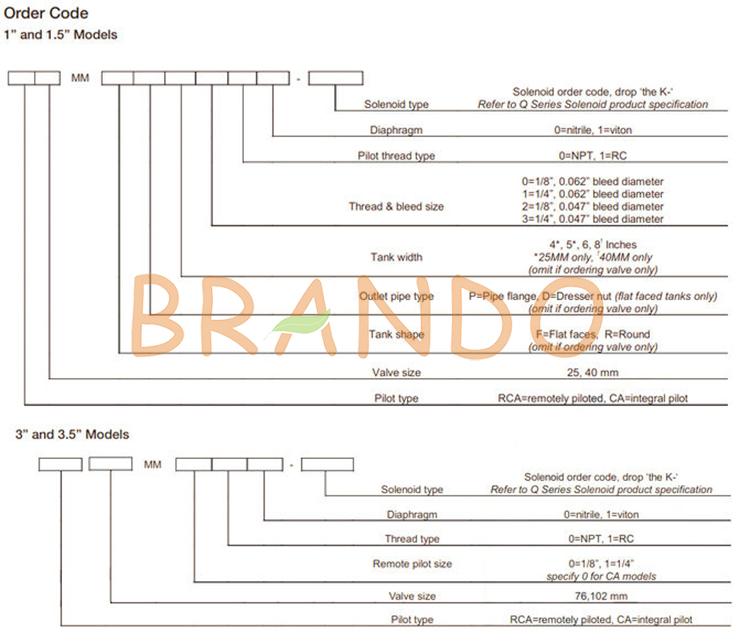

Ordering Code of MM Series Pulse Jet Valve:

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series

Video of Goyen Type CA76MM Pulse Jet Valve:

More Goyen Type Pulse Jet Valves for you to choose:

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series
T Series DD Series FS Series MM Series
Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
