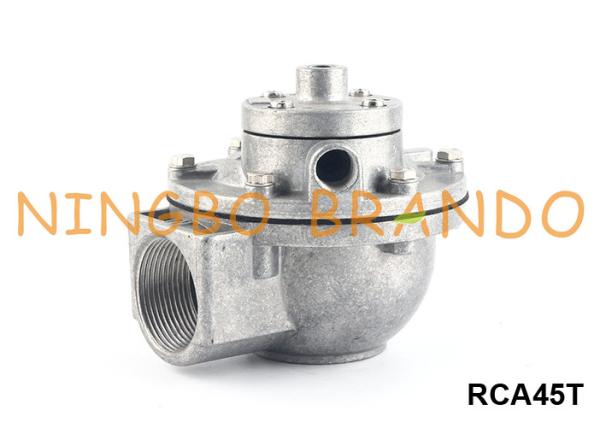

1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010

Brand Name : BRANDO

Model Number : RCA45T

Certification : CE, ISO

Place of Origin : China, Ningbo

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 4-7 working days

Packaging Details : Inner Box, Carton, Pallet

Product Name : Pulse Jet Valve

Pilot Size : 1/8'', 1/4''

Port Size : 1.5''

Series : T

Valve Structure : Right Angle, Threaded Port

Valve Body Material : Aluminum Alloy

Membrane Material : NBR, VITON

Operating Pressure Range : 5 to 125 psi

Contact Now

1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010

BRANDO has over 10 years of experience in the design and manufacture of pulse jet valves in dust collectors. Our threaded pulse valves are manufactured from aluminum in a high-pressure die cast process. T-series is designed to operate with air pressures from 5 to 125 psi. These threaded valves can be orientated in any position other than upside down or inverted.

The temperature range of the threaded valves depends on the chosen model and diaphragm:
NBR diaphragms: -40 °C (-40°F) to 82°C (179.6°F)
Viton diaphragms -29°C (-20.2°F) to 232°C (449.6°F)

Technical Data of T Series Pulse Jet Valves:

Model Number
RCA15T
RCA20T
RCA25T
RCA35T
RC45T
RCA50T
RCA62T
RCA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Pilot Size
1/8'', 1/4''
Working pressure
5 to 125 psi
Diaphragm Material
NBR, VITON
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet), Threaded Port

Ordering Code of T Series Pulse Jet Valve:
1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010

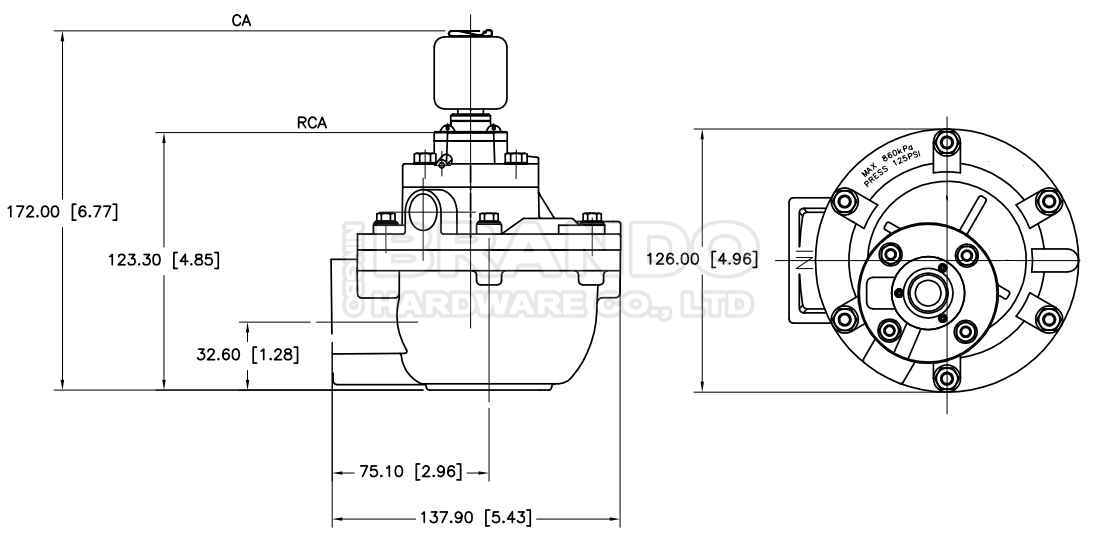

Main Dimension of 1.5'' RCA45T Pulse Jet Valve:

1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010

More Goyen Type Pulse Valves for you to choose:

1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010
T Series DD Series FS Series MM Series
1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010 1.5'' RCA45T Goyen Type Threaded Pulse Jet Valve RCA45T001 RCA45T010
RCA Series Solenoid Coil Solenoid Armature Diaphragm
