CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series

Brand Name : Brando

Model Number : CA20T

Certification : CE, ISO

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 3/4"

Valve Series : T Series

Valve Structure : Right Angle, Threaded Port

Coil Voltages : 24VDC, 110VAC, 220VAC

Diaphragm Material : Nitrile, Viton

Working Pressure Range : 0.35 To 0.85 MPa

Contact Now

CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series

Rectangular solenoid pulse valve electrical pulse signal disappeared, the electromagnetic pilot spring to the moving column immediately reset closed unloading hole, diaphragm chamber gas pressure and spring force to close the diaphragm channel, valve stop blowing. The damping hole on the diaphragm, when the pilot head moving column lifted the gas pressure unloading, play the role of damping airflow, when the unloading hole is closed, the pressure gas quickly filled to the back chamber, the diaphragm close the channel, stop blowing.

Technical Data of T Series Pulse Jet Valves:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Working pressure
0.35 to 0.85 MPa (5 to 125 PSI)
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR, FKM, EPDM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet), Threaded Port

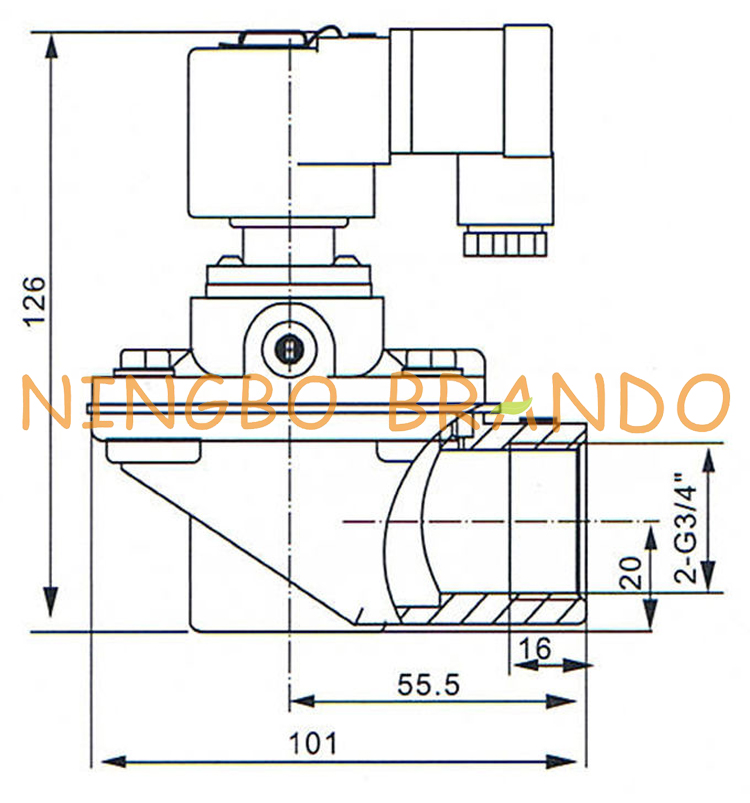

Dimension of CA20T Pulse Jet Valve:

CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series

Ordering Code of T Series Pulse Jet Valve:

CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series

Video of CA20T Pulse Jet Valve:

More Goyen Type Pulse Jet Valves for you to choose:

CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series
T Series DD Series FS Series MM Series
CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series CA20T Goyen Type Pulse Jet Valve Solenoid Threaded Right Angle T Series
RCA Series Solenoid Coil Solenoid Armature Diaphragm
