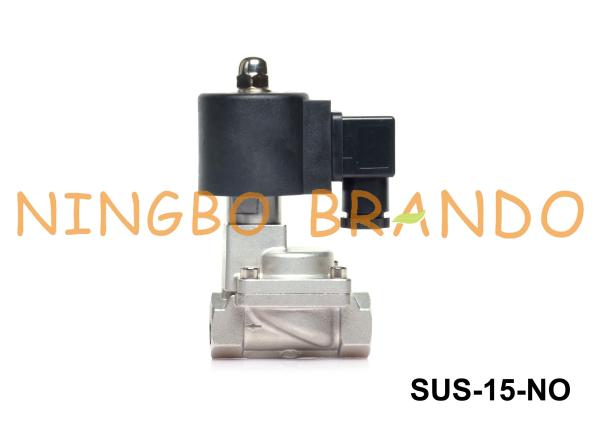

1/2'' 2 Way Normally Open Stainless Steel Solenoid Valve 24V 220V

Brand Name : Brando

Model Number : SUS-15-NO

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union,Paypal, MoneyGram

Supply Ability : 300000 sets per month

Delivery Time : 4-8 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1/2''

Orifice Size : 15mm

Function : 2 Way, Normally Open

Operation : Piston Pilot Operated

Body Material : Stainless Steel

Seal Material : PTFE

Voltages : 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.05 to 4 MPa

Contact Now

1/2'' 2 Way Normally Open Stainless Steel Solenoid Valve 24V 220V

Operation:

2-way, normally open, solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the stop port.In its natural de-energized state the stop port is open and media flows into the cavity port and out the stop port.When the valve is energized the plunger seals the orifice stopping flow through the valve.Turn off the power. The orifice opens and flow through the valve resumes.

Main Dimension of SUS series Stainless Steel Solenoid Valve:

1/2'' 2 Way Normally Open Stainless Steel Solenoid Valve 24V 220V

Model
L
H
A
B
φC
D
K
SUS-15
69
121
14
48.5
48
83.5
1/2''
SUS-15-NO
128
SUS-20
79
133
18
55.5
3/4''
SUS-20-NO
140
SUS-25
96
142
21
70
1''
SUS-25-NO
149
SUS-32
109
152
27
70
1 1/4''
SUS-32-NO
159
SUS-40
128
167
31
95
1 1/2''
SUS-40-NO
174
SUS-50
150
183
38
100
2''
SUS-50-NO
190


Technical Data of SUS Series Stainless Steel Solenoid Valve:

Model
SUS-15
SUS-20
SUS-25
SUS-32
SUS-40
SUS-50
SUS-15-NO
SUS-20-NO
SUS-25-NO
SIUS-32-NO
SUS-40-NO
SUS-50-NO
Port Size
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Orifice Size
15mm
20mm
25mm
32mm
40mm
50mm
Cv Value
5
6
13
20
28
39.5
Function
2 way, normally closed / normally open
Operation
Piston pilot operated
Body Material
Stainless steel 304
Seal Material
PTFE, FKM, EPDM
Working Temperature
PTFE: -20 to +180℃, FKM: -10 to +150℃, EPDM: -5 to +120℃
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Protection Class
IP65, IP67, Ex-proof
Insulation Class
F, H
Installation
Horizontal or Slant
