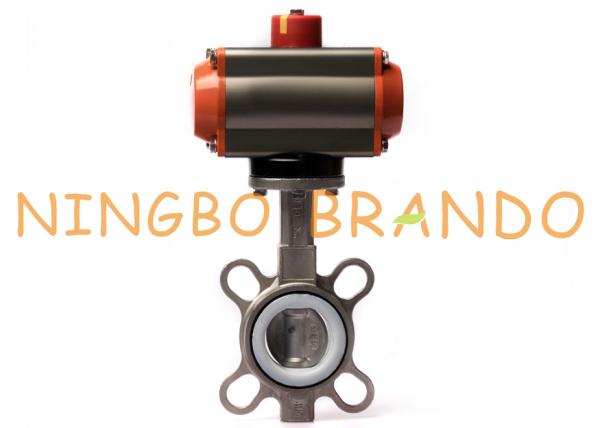

PTFE Seat Pneumatic Actuator Wafer Butterfly Valve Stainless Steel 2'' DN50
Air Actuated Butterfly Valve is composed of pneumatic actuator and butterfly valve. The basic working principle of pneumatic valve is that compressed air enters the pneumatic actuator to drive the piston, and then rotating or liting torsion shaft drives the stem. Pneumatic Butterfly Valve is a circular disc rotating with the stem as an opening and closing function, in order to achieve the opening action of the pneumatic valve, mainly for the use of cut-off Valve, can also be designed to have the function of regulation or section valve and regulation At present, the use of butterfly valve in low pressure large and medium diameter pipeline is more and more.
Technical Data of Pneumatic Butterfly Valve:
Pneumatic Butterfly Valve | |
Air Pressure: 0.4 to 0.8 MPa | Electric Actuator Power: 380VAC, 220VAC, 110VAC (50/60Hz), 24VDC Electric Actuator Input: 4-20mA. DC |
Control Medium: Neutral Gas, Air |
Ambient Temperature: -20 to +60℃ |
Manufacturing Standard: GB, ISO, ANSI, BS, DIN |
Main Dimension of Pneumatic Butterfly Valve:
More Pneumatic Actuator Valves for you to choose:
| Pneumatic Ball Valves |
 |  |  |  |
 |  |  |  |
| Pneumatic Butterfly Valves |
 |  |  |  |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
