KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

  • 1
  • 2
  • 3

Brand Name : BRANDO

Model Number : BB17554020

Certification : None

Place of Origin : Ningbo, China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs per month

Delivery Time : Negotiation

Packaging Details : Box, Carton, Pallet

Product Name : Solenoid Coil

Voltage : 24VDC, 110VDC

Power : 14W

Connector Type : DIN43650A

Contact Now

KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

This is a solenoid coil commonly used in Knorr-Bremse solenoid valves, like WMV1-ZT, WMV-1/2ZG, WMV-30ZG, WMV-05NZG, etc. The standard coil voltage is 24VDC or 110VDC, the standard power is 14W, and other voltages and powers can be customized. If you have any demands, pls just contact us!

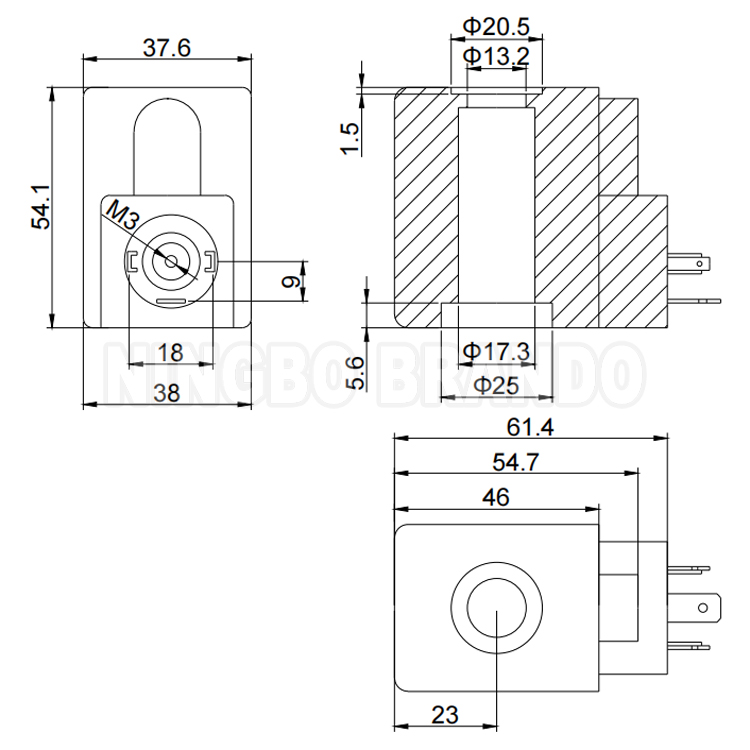

Main Dimension:

KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

Technical Data:

BRANDO Model
BB17554020
Voltage
24VDC, 110VDC
Power
14W
Other voltage and power can be customzied
Connector Type
DIN43650A

Our Production:

KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

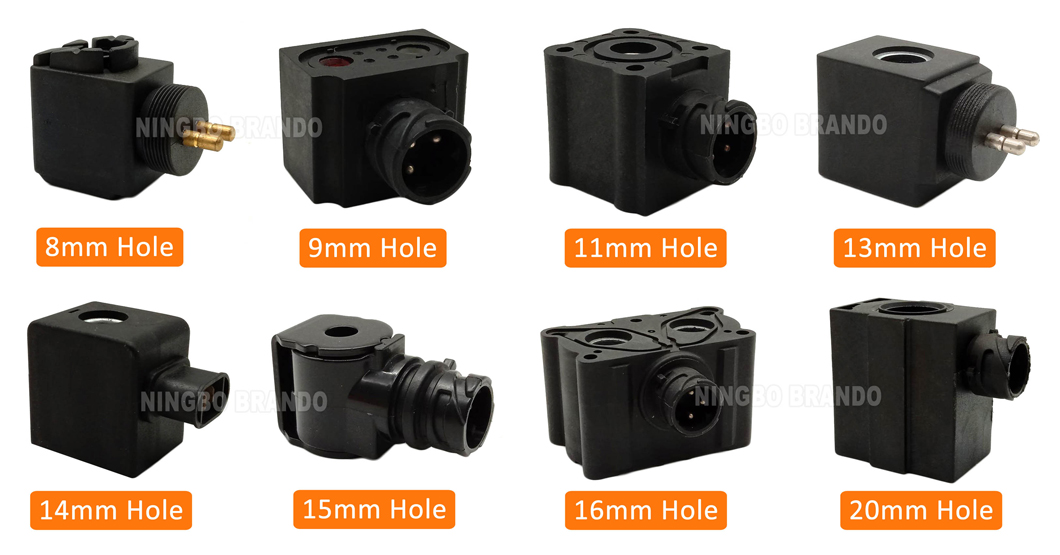

Similar Coils:

KNORR-BREMSE Type Solenoid Valve Coil 24VDC 110VDC 14W

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the type and size of the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Outer diameter and height of the solenoid armature or solenoid valve coil's aperture and height.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leading type, standard interface, etc.
6. Application: Some special application areas require the use of specially designed Solenoid coils. Different general. applications, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
