Refrigeration Solenoid Valve Coil S.N. Type HM4 AC220V 16VA

0200D High Quality Solenoid Valve Coil 24VDC 115VAC 230VAC 15Watt 18Watt 20Watt

This HM4 solenoid coil is popularly used in refrigeration solenoid valves, which is a clip on version coil and can be fitted without use of tools. The standard voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC or 380VAC, the standard power is 13W, 18W, 13VA, 16VA or 18VA, other voltages and powers can be customized as your request, IP65 protection class, Class F insulation.

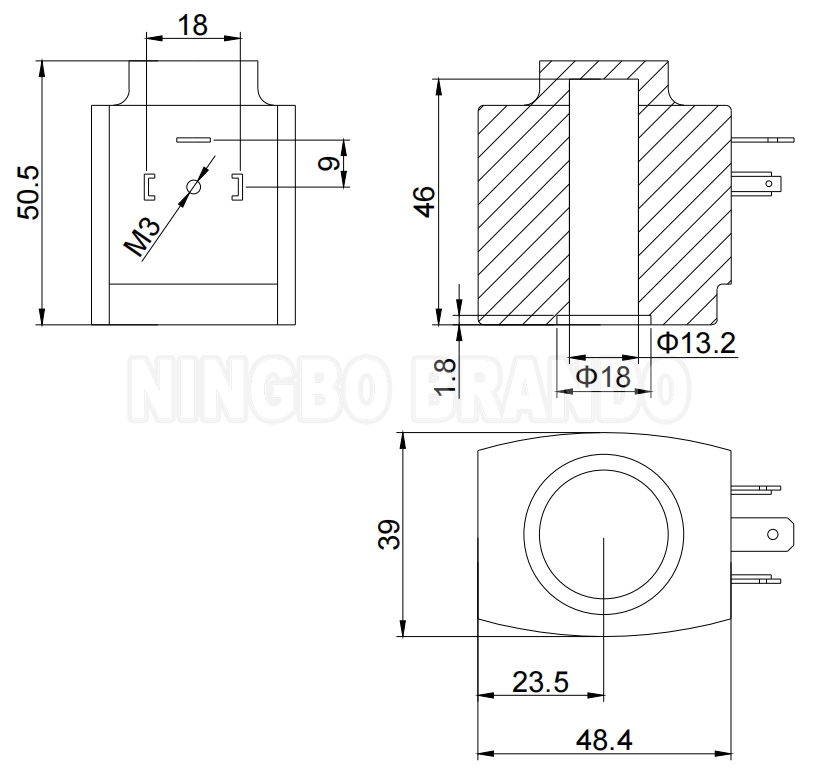

Main Dimension:

Technical Data:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
