40 bar High Pressure Brass Solenoid Valve For Water Air Gas 1/4'' to 2'' 24V 110V 220V

40 bar High Pressure Brass Solenoid Valve For Water Air Gas 1/4'' to 2'' 24V 110V 220V

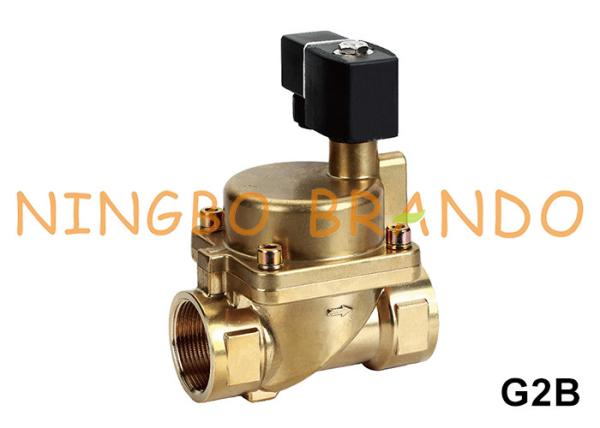

This is a high pressure solenoid valve, 1/4'' to 2'' female threaded port size, 14mm to 40mm orifice size, 2 way normally closed, piston pilot operated, 0.5 to 40 bar working pressure, standard NBR seal, can be customized as FKM or PTFE seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

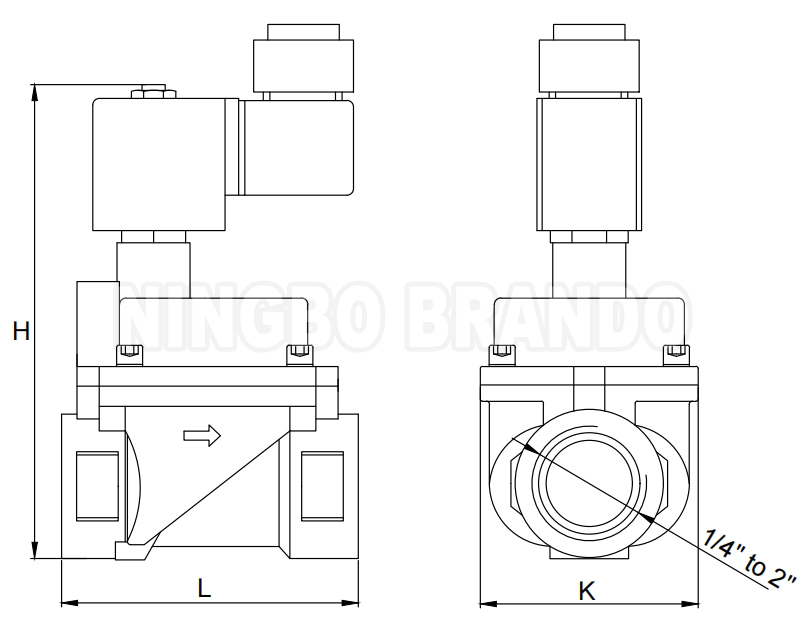

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

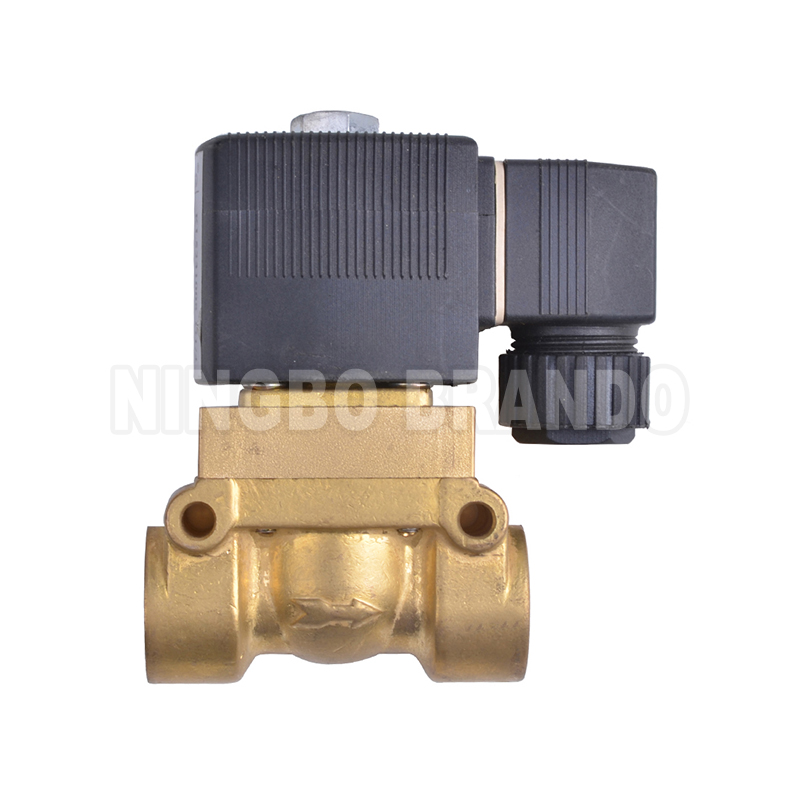

Similar Valves:

Max 40 bar	Max 200 bar	Max 360 bar	Max 700 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
