WUXI YONGDA WXYD TDF Solenoid Pulse Valve Coil DC24V AC220V
This solenoid coil is popularly used in WUXI YONGDA (WXYD) pulse valves. The standard voltage is 24VDC, 110VAC or 220VAC, the standard power is 12W, 15W, 22W or 15VA, other voltages and powers can be customized as your request. A solenoid valve coil is designed to convert electrical energy into lateral motion. The coil usually consists of copper wire wound around a hollow bobine or tube. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Technical Data:
| BRANDO Model | |
| Voltage | |
| Power | |
| Other voltage and power can be customized |
| Connector | |

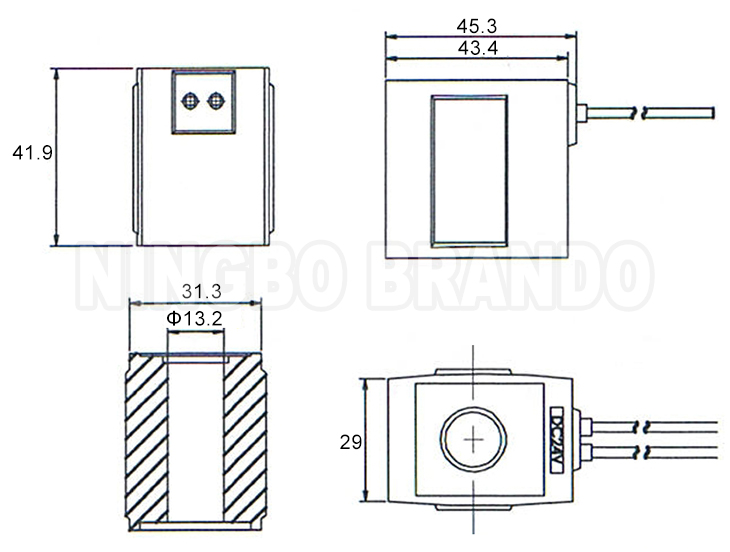

Main Dimension:
Our Production:
FAQ: How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
Related Products:
 |  |
| TDF20 | TDF25 |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
