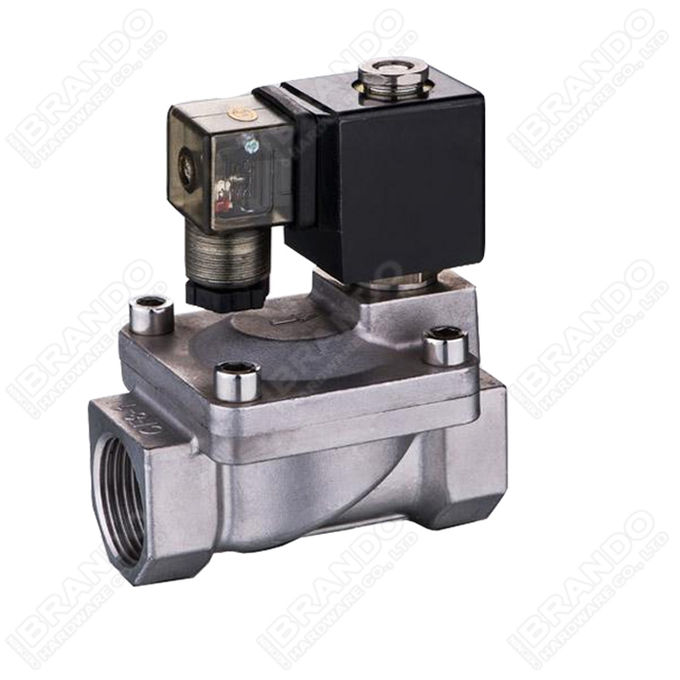

2S160-15S 1/2'' Stainless Steel Electric Solenoid Valve 12V 24V 220V
Product Features:
1. Working Medium: Water, Air, Oil, Gas, etc.
2. Working Meidum Temperature Range: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃
3. Working Pressure Range: 0 to 1 MPa
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Direct Lifting Diaphragm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, FKM, EPDM
8. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Main Dimension of Solenoid Valve:
| Model | | | | |
| 2S025-06 | | | | |
| 2S025-08 | | | | |
| 2S040-10 | | | | |
| 2S160-10 | | | | |
| 2S160-10-NO | |
| 2S160-15 | | | | |
| 2S160-15-NO | |
| 2S200-20 | | | | |
| 2S200-20-NO | |
| 2S250-25 | | | | |
| 2S250-25-NO | |
| 2S350-35 | | | | |
| 2S350-35-NO | |
| 2S400-40 | | | | |
| 2S400-40-NO | |
| 2S500-50 | | | | |
| 2S500-50-NO | |
Technical Data of Solenoid Valve:
| Medium | |
| Action | Direct Acting, Direct Lifting Diaphragm |
| Function | 2 Way, Normally Closed (NC), Normally Open (NO) |
| Viscocity | |
| Pressure | Normally Closed (0 to 1MPa), Normally Open (0 to 0.8MPa) |
| Temperature | NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃ |
| Body Material | |
| Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Coil Type | Waterproof Coil, Round Coil, Square Coil, etc. |
Solenoid Valve Assembly Display:
Brando Factory Production of Solenoid Valves:

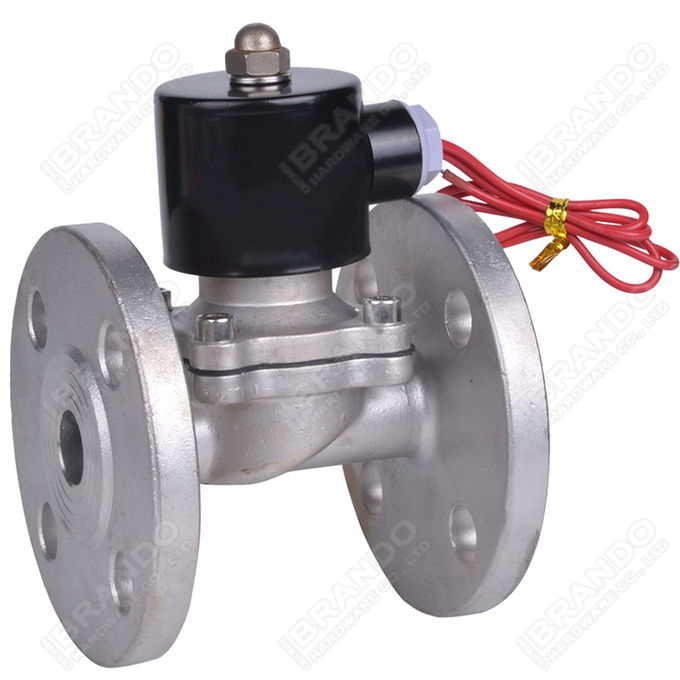

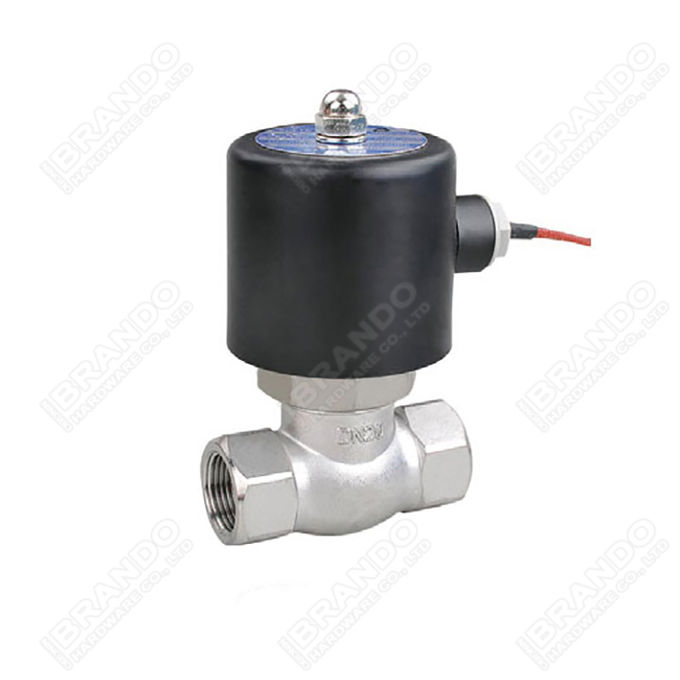

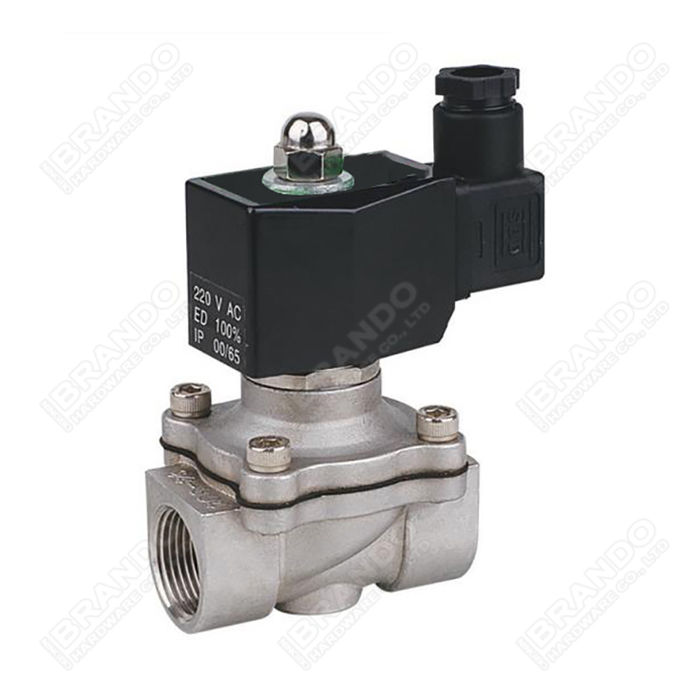

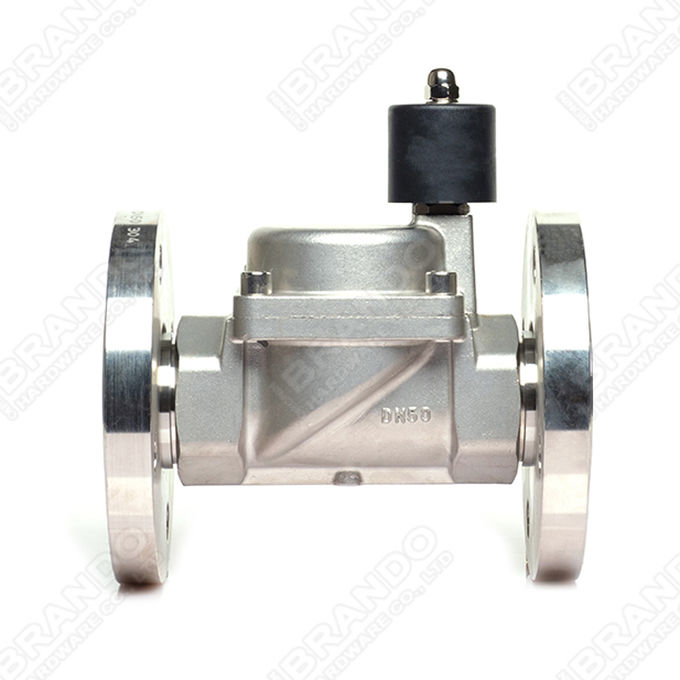

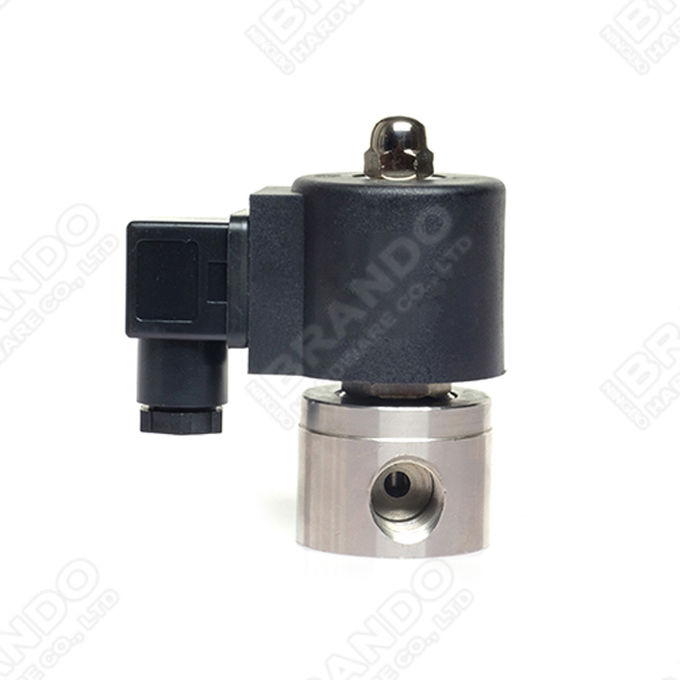

More Stainless Steel Solenoid Valves for you to choose:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
