3R210-08 3/2 Way Pneumatic Manual Push Pull Air Control Valve
The 3R210-06 is a manual pneumatic directional valve with a three-way operation & three ports (P = Pressure, A = Outlet, EA = Exhaust for port A). Three-way, two-position valves are generally used to fully extend a single acting (spring return) cylinder, or in applications with similar operation.
Features:
* Manual operation, smooth actuation,and exact and reliable orientation;
* Sliding column structure has good tightness and light weight and is easy to install and dismount;
* Internal hole adopts special processing technology which has little attrition friction, long service life;
* No need to add oil for lubrication;
* Panel-mounting makes it convenient to install and apply.
Technical Data of 3R series Push Pull Valve:
| Model | 3R110-06 | 3R210-06 | 3R210-08 | 3R310-08 | 3R310-10 |
| Fluid | Air (to be filtered by 40μm filter element) |
| Operating | Manual control direct acting type |
| Port Size | 1/8'' | 1/4'' | 3/8'' |
| Orifice Size (Cv) | 10.2mm² (Cv=0.6) | 3L210-08: 17.0mm² (Cv=1.0) | 3L310-10: 28.0mm² (Cv=1.65) |
| Valve Type | 3/2 Way |
| Pressure Range | 0 to 1.0MPa (0 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70℃ |
| Body Material | Aluminum Alloy |
Ordering Code of 3R series Push Pull Valve:

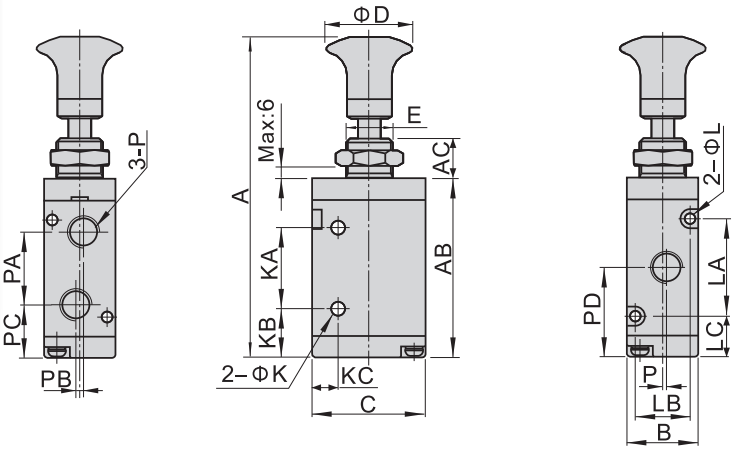

Dimension of 3R series Push Pull Valve:
Inner Structure of 3R series Push Pull Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:

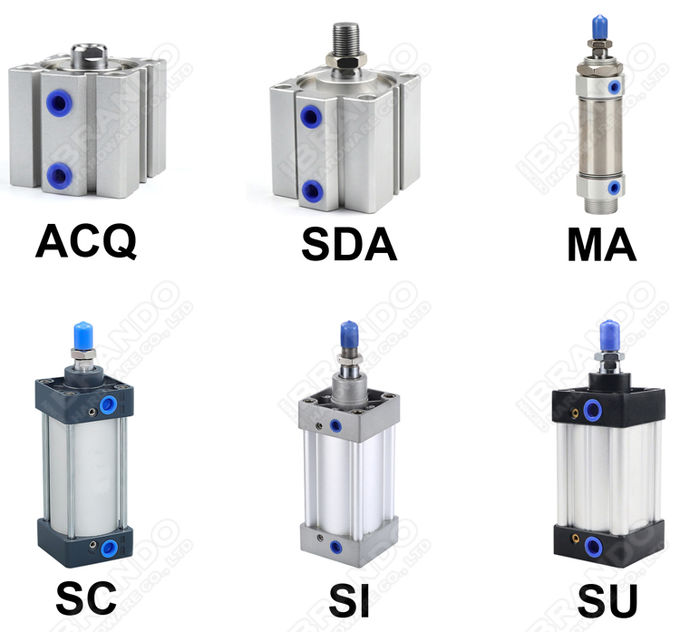

| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
| | | |

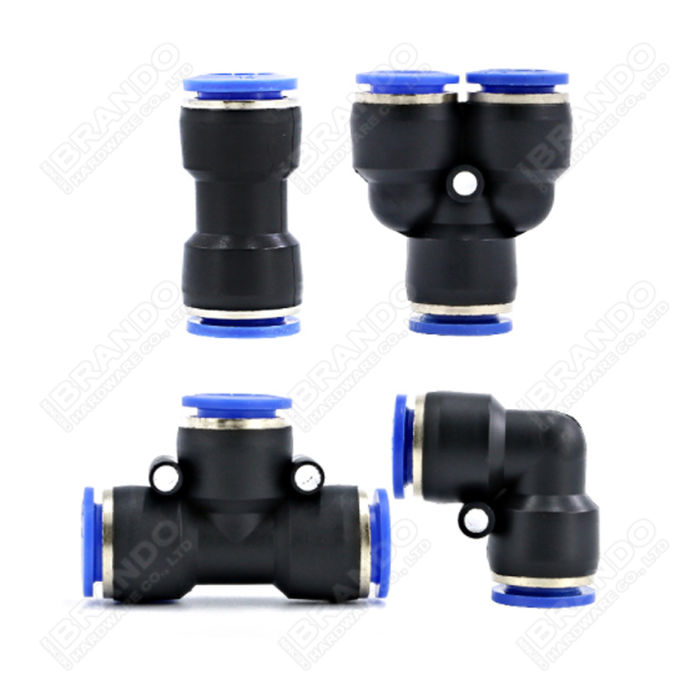

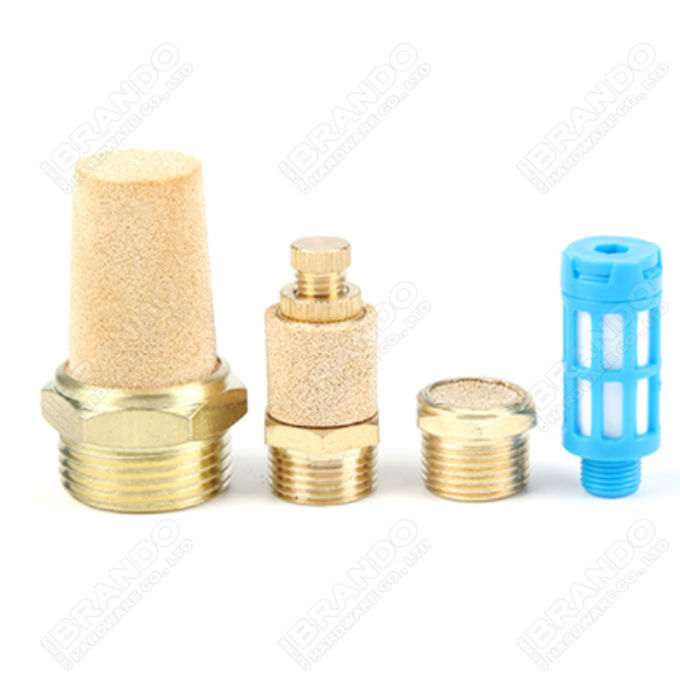

| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|  |  |   |
