NTP 48 B+C Netter Vibration Type Pneumatic Linear Vibrator For Silo Hopper
NTP Series Pneumatic Linear Vibrators are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. Special features of NTP vibrators are: impacts like a rubber hammer or vibration with high peak acceleration.
The linear vibration is produced by a freely vibrating differential pressure piston. In a standard application, the piston knocks against an elastomer impact plate and works like a rubber hammer.
When used without an impact plate, the piston works against an air cushion and reduces noise. Hard knocking versions are available. The frequency can be adjusted by varying the pressure of the air supply and the amplitude by throttling the exhaust.
Technical Data:
| Model | Unbalance (cmkg) | Nominal Frequency (min-1) | Centrifugal Force (N) | Air Consumption (l/min) | Sound Level (dBA) |
| 2 bar | 4 bar | 6 bar | 2 bar | 4 bar | 6 bar | 2 bar | 4 bar | 6 bar | 2 bar to 6 bar | 2 bar to 6 bar |
| NTP 18 B+C | 0.06 | 0.06 | 0.06 | 6600 | 9420 | 11160 | 147 | 300 | 421 | 20 to 64 | 75 to 87 |
| NTP 18 B | 0.09 | 0.100 | 0.110 | 3828 | 4680 | 5490 | 69 | 118 | 183 | 12 to 67 | 65 to 77 |
| NTP 25 B+C | 0.144 | 0.163 | 0.196 | 5848 | 7000 | 8784 | 269 | 438 | 830 | 33 to 108 | 68 to 82 |
| NTP 25 B | 0.488 | 0.613 | 0.686 | 2645 | 3159 | 3602 | 190 | 341 | 487 | 23 to 92 | 64 to 73 |
| NTP 32 B+C | 0.602 | 0.665 | 0.665 | 2959 | 4080 | 5040 | 289 | 607 | 926 | 50 to 198 | 71 to 86 |
| NTP 32 B | 1.080 | 1.365 | 1.449 | 1824 | 2221 | 2614 | 197 | 369 | 543 | 37 to 143 | 64 to 77 |
| NTP 48 B+C | 2.081 | 1.992 | 1.992 | 2618 | 3456 | 4320 | 782 | 1305 | 2039 | 96 to 336 | 78 to 90 |
| NTP 48 B | 4.718 | 6.188 | 6.641 | 1328 | 1603 | 1963 | 456 | 872 | 1403 | 67 to 295 | 65 to 80 |

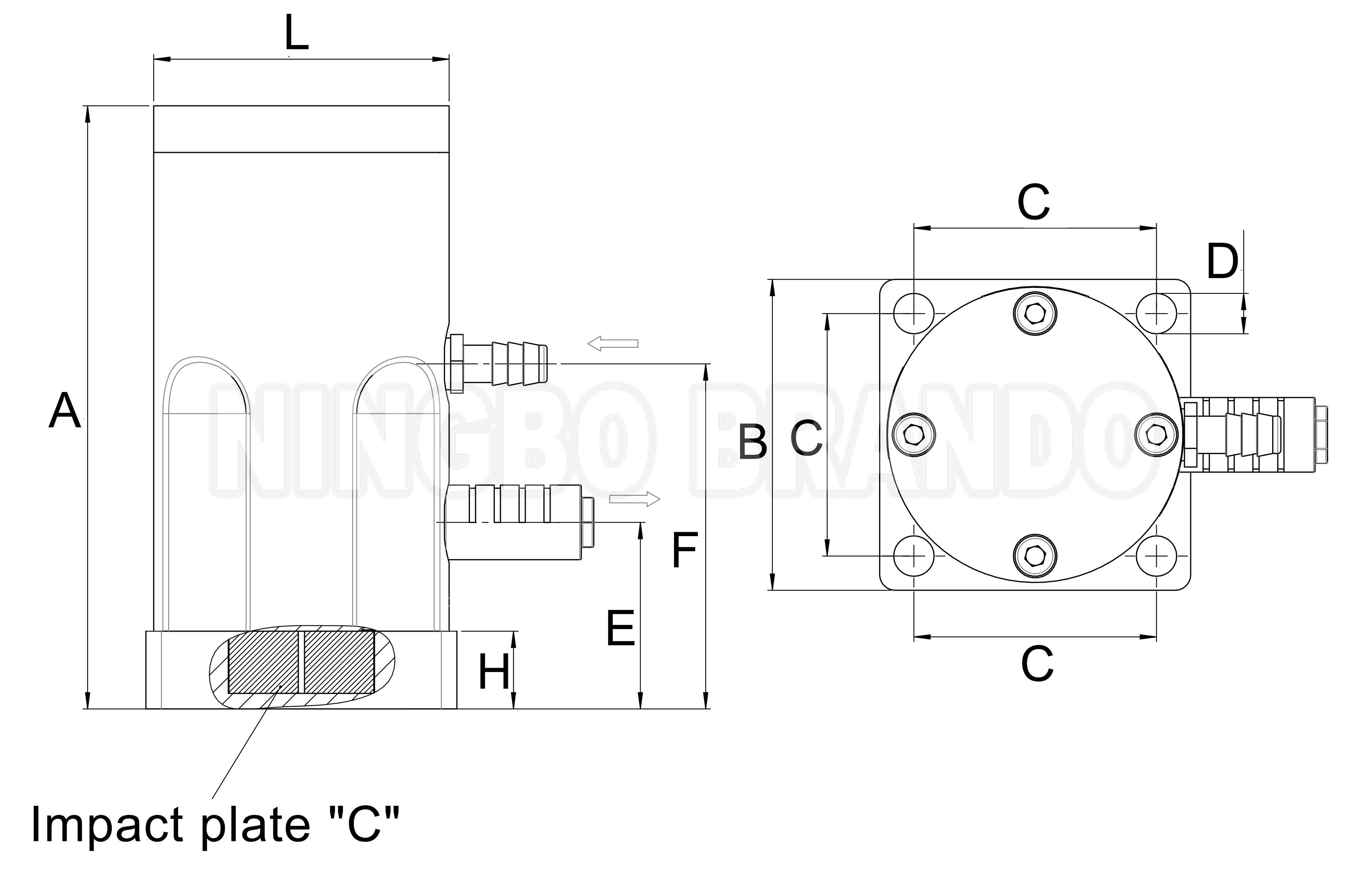

Main Dimension:
More Pneumatic Vibrators:
 |  |  |  |
| Pneumatic Turbine Vibrator | Pneumatic Ball Vibrator | Pneumatic Roller Vibrator | Pneumatic Air Knocker |
Related Products:
 |  |

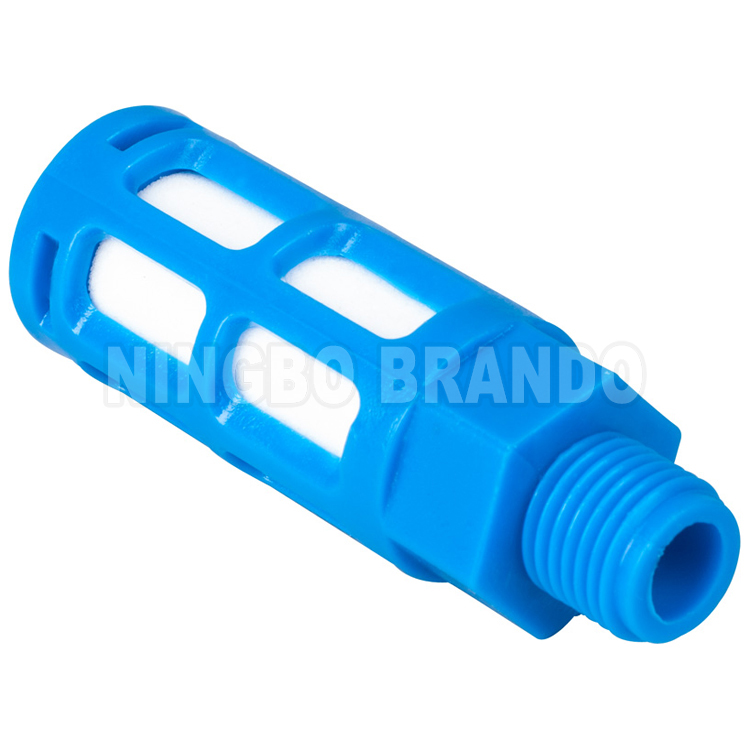

| Pneumatic Fitting | Pneumatic Silencer |
