150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

  • 1
  • 2
  • 3

Brand Name : BRANDO

Model Number : H9S10B04

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 50pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000pcs per month

Delivery Time : Negotiation

Packaging Details : Box, Carton, Pallet

Product Name : High Pressure Solenoid Valve

Port Size : G1/2''

Orifice Size : 10mm

Body Material : Stainless Steel 304, Stainless Steel 316

Seal Material : NBR, EPDM, FKM

Working Media : Air, Water, Gas, Liquid, Light Oil, etc

Max Working Pressure : 150 bar

Operation : Piston Pilot Operated

Function : 2 Way Normally Closed

Voltage : 220VAC, 110VAC, 24VAC, 24VDC, 12VDC

Contact Now

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
3. Max Working Pressure: 150 bar
4. Body Material: SS314, SS316
5. Seal Material: NBR, EPDM, FKM
6. Port Size: G1/4'', G3/8'', G1/2''
7. Orifice Size: 6mm, 8mm, 10mm
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No
Port
Orifice
CV
Working Pressure
(bar)
Body
Seal
Function
Voltage
H9S060B02
G1/4''
6mm
0.8
0.5 to 150
SS304
SS316
NBR
EPDM
FKM
2 Way NC
220VAC
110VAC
24VAC
24VDC
12VDC
H9S080B02
8mm
1.0
H9S10B02
10mm
1.2
H9S060B03
G3/8''
6mm
0.8
H9S080B03
8mm
1.0
H9S10B03
10mm
1.2
H9S060B04
G1/2''
6mm
0.8
H9S080B04
8mm
1.0
H9S10B04
10mm
1.2

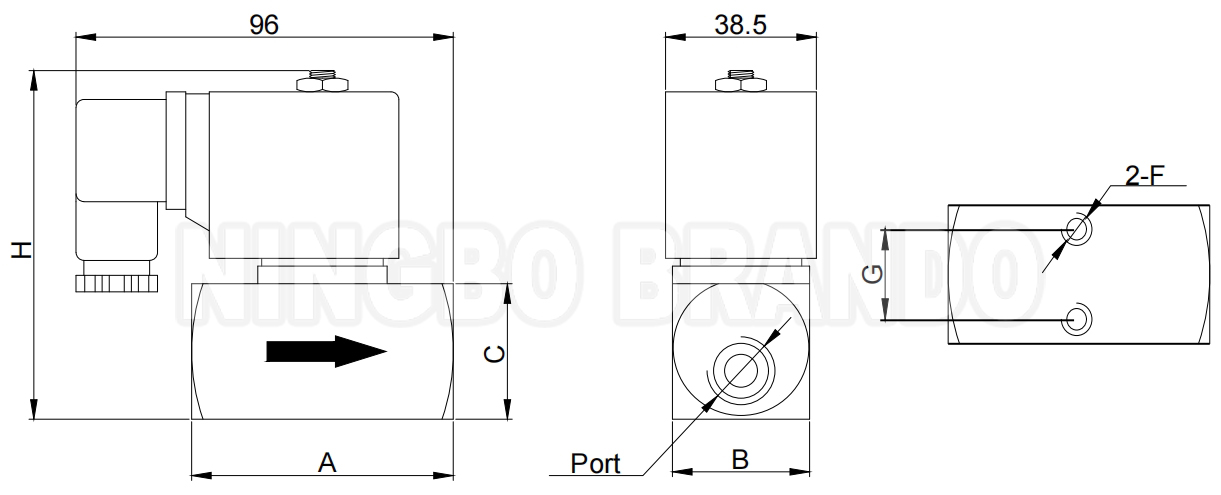

Main Dimension:

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

Model No
Port
A
B
C
F
G
H
H9S060B02
G1/4''
48
25
25
M5
16
78
H9S080B02
67
35
35
M6
22
88
H9S10B02
67
35
35
M6
22
88
H9S060B03
G3/8''
50
30
30
M5
20
83
H9S080B03
67
35
35
M6
22
88
H9S10B03
67
35
35
M6
22
88
H9S060B04
G1/2''
58
32
32
M5
20
85
H9S080B04
67
35
35
M6
22
85
H9S10B04
67
35
35
M6
22
85

Our Production:

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

More High Pressure Valves:

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V 150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V 150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V 150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V
Max 200 bar Max 200 bar Max 300 bar Max 360 bar
